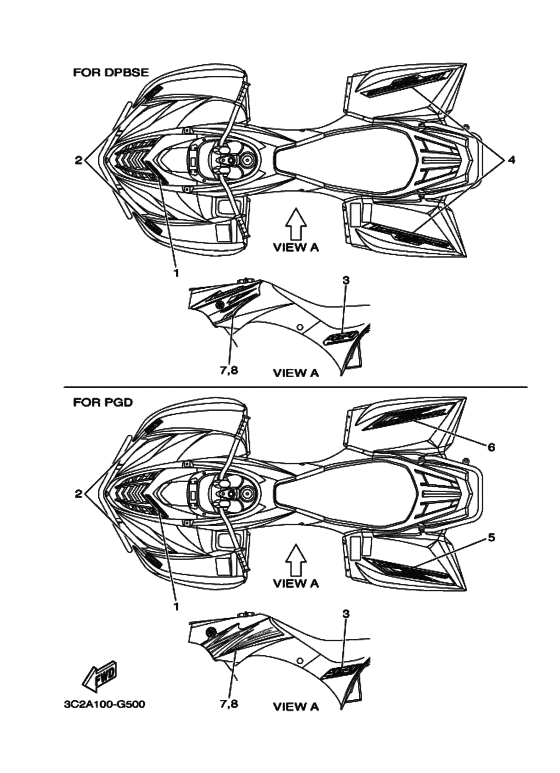

Graphics Diagram Yamaha WOLVERINE 450 Wolverine 450
- Model code
- 3C2B
- Engine Capacity
- 421
- Year
- 2008
- Sales region
- Europe (010)
- Colour
- Pastel Dark Gray (PGD; 003E)
- Color Variant
- L
- Power
- 42 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Wolverine 450
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C2-F1565-50-00 Emblem, 2UR FOR PGD |
3C2-F1565-50-00 |
US $20.97 |
||
|
2
|
2
3C2-F153E-20-00 Emblem, Yamaha |
3C2-F153E-20-00 |
US $1.10 |
||
| replacement | |||||
|
2
|
2
3C2-F153E-21-00 EMBLEM YAMAHA |
3C2-F153E-21-00 |
US $1.62 |
||
|
3
|
3
3C2-F1609-40-00 EmblemUR FOR PGD |
3C2-F1609-40-00 |
US $13.52 |
||
|
5
|
5
3C2-F165G-30-00 Graphic, Rear (Lh)FOR PGD |
3C2-F165G-30-00 |
US $38.77 |
||
|
6
|
6
3C2-F165H-30-00 Graphic, Rear (Rh)FOR PGD |
3C2-F165H-30-00 |
US $38.77 |
||
|
7
|
7
3C2-F1781-50-00
Emblem 1
UR FOR PGD |
3C2-F1781-50-00 |
— | ||
|
8
|
8
3C2-F1782-50-00 Emblem 2UR FOR PGD |
3C2-F1782-50-00 |
US $44.77 |
||
