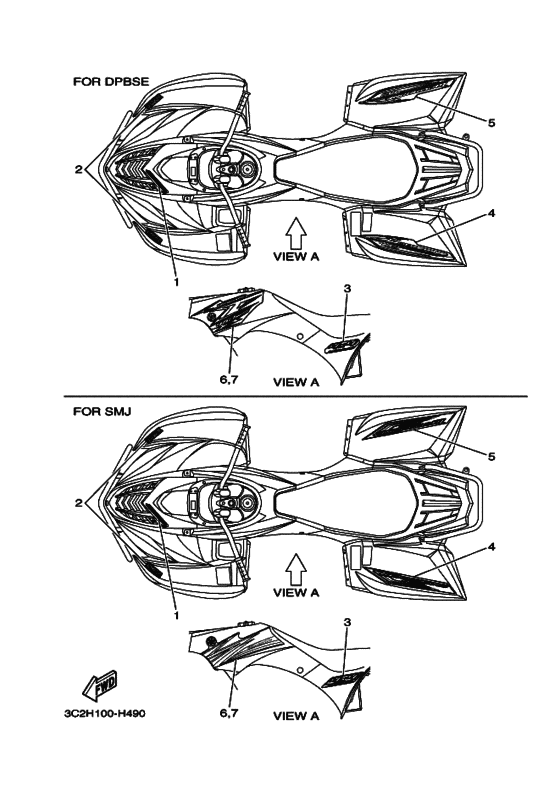

Graphics Diagram Yamaha WOLVERINE 450 Wolverine 450
- Model code
- 3C2H
- Engine Capacity
- 421
- Year
- 2009
- Sales region
- Europe (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- D
- Power
- 42 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Wolverine 450
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C2-F1565-40-00 Emblem, 2UR FOR DPBSE |
3C2-F1565-40-00 |
US $25.25 |
||
|
2
|
2
3C2-F153E-20-00 Emblem, YamahaUR FOR DPBSE |
3C2-F153E-20-00 |
US $1.10 |
||
| replacement | |||||
|
2
|
2
3C2-F153E-21-00 EMBLEM YAMAHAUR FOR DPBSE |
3C2-F153E-21-00 |
US $1.62 |
||
|
3
|
3
3C2-F1609-30-00
Emblem
UR FOR DPBSE |
3C2-F1609-30-00 |
— | ||
|
4
|
4
3C2-F165G-40-00 Graphic, Rear (Lh)UR FOR DPBSE |
3C2-F165G-40-00 |
US $61.04 |
||
|
5
|
5
3C2-F165H-40-00 Graphic, Rear (Rh)UR FOR DPBSE |
3C2-F165H-40-00 |
US $62.37 |
||
|
6
|
6
3C2-F1781-80-00 Emblem 1UR FOR DPBSE |
3C2-F1781-80-00 |
US $96.59 |
||
|
7
|
7
3C2-F1782-80-00 Emblem 2UR FOR DPBSE |
3C2-F1782-80-00 |
US $79.72 |
||
