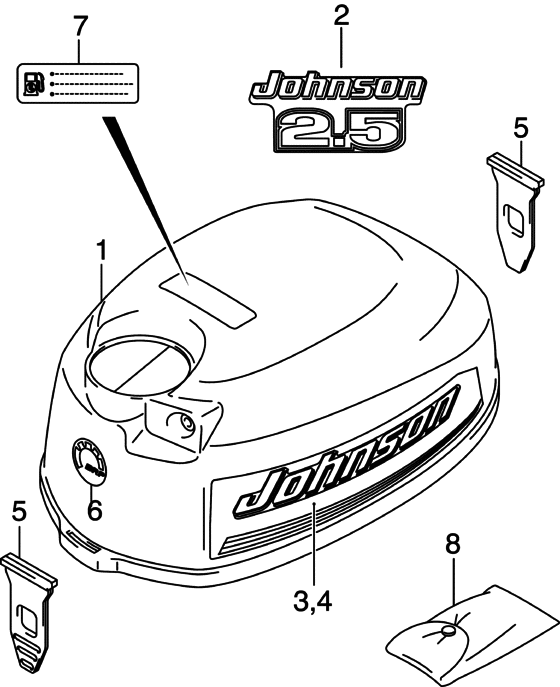

Engine Cover Diagram Bombardier 2.5
- Year
- 2007
- Model
- J2.5
- Model code
- R4SUC
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 2.5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5037346
Cover Assy, Engine
|
5037346 |
— | ||
|
2
|
2
5036583
Decal, Rear (2.5)
|
5036583 |
— | ||
|
3
|
3
5036582
Stripe, Engine Cover - Stbd
|
5036582 |
— | ||
|
4
|
4
5036581
Stripe, Engine Cover - Port
|
5036581 |
— | ||
|
5
|
5
5037347
Fastener, Engine Cover
|
5037347 |
— | ||
|
6
|
6
5037506
Decal, "brp"
|
5037506 |
— | ||
|
7
|
7
5034204
Decal, Fuel Limitation. Included With "engine Cover Assy"
|
5034204 |
— | ||
|
8
|
8
5033044
Tool Set
|
5033044 |
— |
