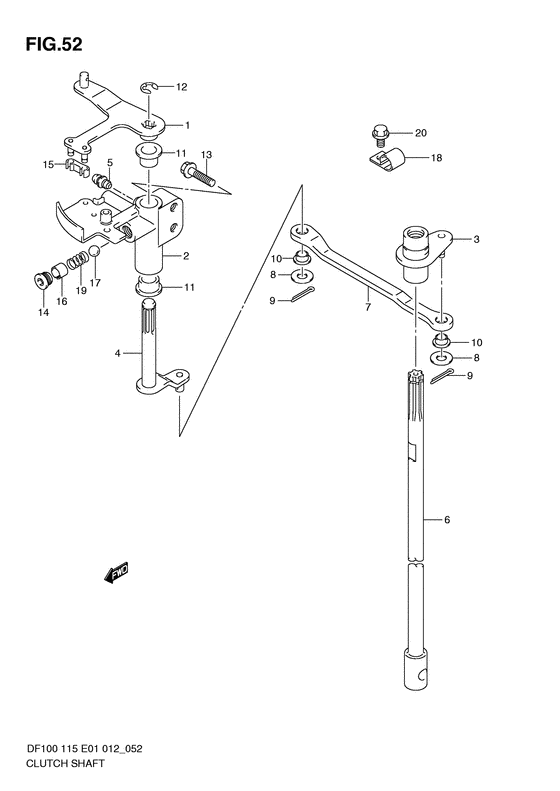

Clutch shaft Diagram Suzuki DF100 TL/X
- Year
- 2011
- Model
- DF100
- Year
- 2011
- Engine
- 10002F-110001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1 (General Export No.1)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21110-92J00-000 LEVER,CLUTCH |
21110-92J00-000 |
US $43.79 |
||
|
2
|
2
21151-92J00-000 HOLDER,CLUTCH LEVER |
21151-92J00-000 |
US $36.25 |
||
|
3
|
3
21210-92J00-000 SHAFT,CLUTCH |
21210-92J00-000 |
US $46.37 |
||
|
4
|
4
21230-92J00-000
Arm, clutch shaft
|
21230-92J00-000 |
— | ||
| replacements | |||||
|
4
|
4
21230-92J01-000
ARM COMP,CLUTCH SHAFT
|
21230-92J01-000 |
— | ||
|
4
|
4
21230-92J02-000 Arm Comp,clutch Shaft |
21230-92J02-000 |
US $40.48 |
||
|
5
|
5
22511-99011-000 NIPPLE,GREASENipple, grease; |
22511-99011-000 |
from US $2.40 |
||
|
6
|
6
23111-90J02-000 ROD,CLUTCH(L)Rod, clutch (l); Transom(l) |
23111-90J02-000 |
US $50.16 |
||
|
6
|
6
23111-90J12-000 ROD,CLUTCH(X)Rod, clutch (x); Transom(x) |
23111-90J12-000 |
US $56.67 |
||
|
7
|
7
23115-92J00-000 LINK,CLUTCH LEVER |
23115-92J00-000 |
US $7.99 |
||
|
8
|
8
09160-06094-000 WASHER(6.5X15X1.0)Washer (6.5x15x1.5) Washer (6.5x15x1.5); |
09160-06094-000 |
from US $0.96 |
||
|
9
|
9
09204-01006-000 PINPin, cotter Pin; |
09204-01006-000 |
from US $0.81 |
||
|
10
|
10
09306-06004-000 BUSH |
09306-06004-000 |
from US $0.96 |
||
|
11
|
11
09306-10001-000 BUSHBush, clutch lever |
09306-10001-000 |
from US $2.08 |
||
|
12
|
12
09383-08004-000 E RING |
09383-08004-000 |
from US $1.12 |
||
|
13
|
13
01550-06307-000 Bolt |
01550-06307-000 |
from US $0.91 |
||
|
14
|
14
11118-95J00-000 PLUG,NOTCH SPRING |
11118-95J00-000 |
US $4.96 |
||
|
15
|
15
21131-93J00-000 BUSH,CLUTCH LEVER |
21131-93J00-000 |
from US $1.60 |
||
|
16
|
16
09205-10006-000 PIN,SPRING(10.2X10)Pin, clutch notch spring Spring; |
09205-10006-000 |
from US $7.20 |
||
|
17
|
17
09260-10005-000 BALLSteel ball |
09260-10005-000 |
from US $1.12 |
||
|
18
|
18
09403-13408-000
CLAMP
|
09403-13408-000 |
— | ||
| replacement | |||||
|
18
|
18
09403-13413-000 Clamp |
09403-13413-000 |
from US $8.31 |
||
|
19
|
19
09440-07071-000 SPRINGSpring, clutch notch |
09440-07071-000 |
from US $2.88 |
||
|
20
|
20
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
