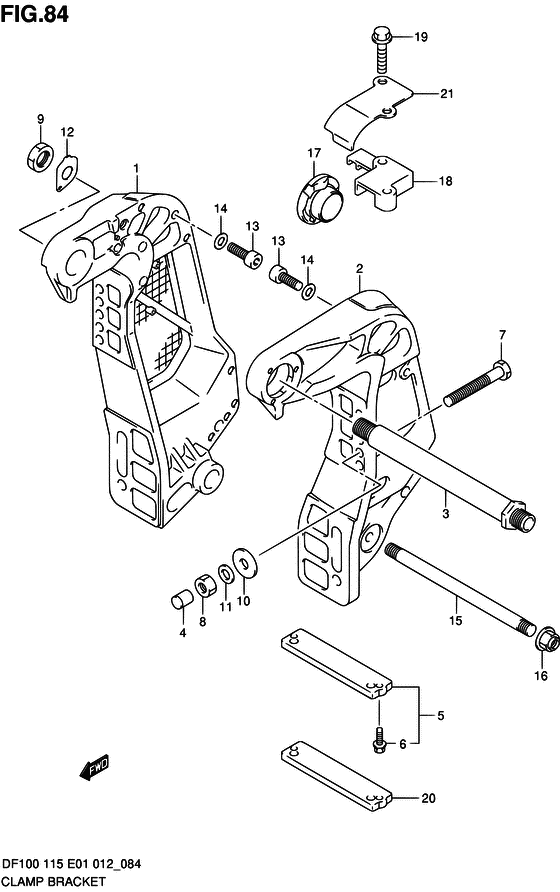

Clamp bracket ((DF115T E01)) Diagram Suzuki DF100 TL/X
- Year
- 2012
- Model
- DF100
- Year
- 2012
- Engine
- 10002F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-90J13-0EP BRACKET,CLAMP STBD |
41111-90J13-0EP |
US $408.48 |
||
|
2
|
2
41121-90J13-0EP BRACKET,CLAMP PORT(BLACK) |
41121-90J13-0EP |
US $408.48 |
||
|
3
|
3
41130-92J03-000 SHAFT,CLAMP BRACKET |
41130-92J03-000 |
US $104.88 |
||
|
4
|
4
41153-94500-000 CAP,TRANSOM BOLT |
41153-94500-000 |
US $2.83 |
||
|
5
|
5
55320-94900-000 ANODE SET,CLAMP BRACKETZinc, protection |
55320-94900-000 |
US $44.71 |
||
| replacement | |||||
|
5
|
5
55320-94910-000 ANODE SET,CLAMP BRACKET |
55320-94910-000 |
from US $22.40 |
||
|
6
|
6
09116-06121-000 BOLT(6X25)Bolt (6x25) |
09116-06121-000 |
from US $1.22 |
||
|
7
|
7
09100-12090-000 BOLT(12X150)OPT |
09100-12090-000 |
from US $21.60 |
||
|
7
|
7
09100-12091-000 BOLT(12X115) |
09100-12091-000 |
US $108.20 |
||
|
8
|
8
09159-12014-000 NUT |
09159-12014-000 |
from US $2.39 |
||
|
9
|
9
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
10
|
10
09160-12044-000 WASHER(12.5X35X3.2)Washer (12.5x35x3.2) |
09160-12044-000 |
from US $2.13 |
||
|
11
|
11
09160-12110-000 WASHER(12.5X22X3) |
09160-12110-000 |
from US $4.19 |
||
|
12
|
12
41135-92J00-000 WASHER,CLAMP BRACKET SHAFT |
41135-92J00-000 |
US $3.84 |
||
|
13
|
13
09106-10065-000 BOLT(10X20) |
09106-10065-000 |
from US $9.49 |
||
|
14
|
14
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
15
|
15
45421-90J00-000 PIN,TILT LOCKOPT |
45421-90J00-000 |
US $29.26 |
||
|
16
|
16
09159-14020-000 NUTOPT |
09159-14020-000 |
from US $2.13 |
||
|
17
|
17
48140-93J01-000 CAM ASSY,TILT LIMIT SWITCH |
48140-93J01-000 |
US $8.16 |
||
|
18
|
18
48144-93J00-000 HOLDER,TILT LIMIT SWITCH |
48144-93J00-000 |
US $6.88 |
||
|
19
|
19
09103-06278-000 BOLT(6X25)Bolt (6x20) |
09103-06278-000 |
from US $1.22 |
||
|
20
|
20
55321-94910-000 ANODE(MAGNESIUM)OPT |
55321-94910-000 |
US $49.28 |
||
|
21
|
21
48145-93J00-000 COVER,TILT LIMIT SWITCH |
48145-93J00-000 |
US $5.44 |
||
