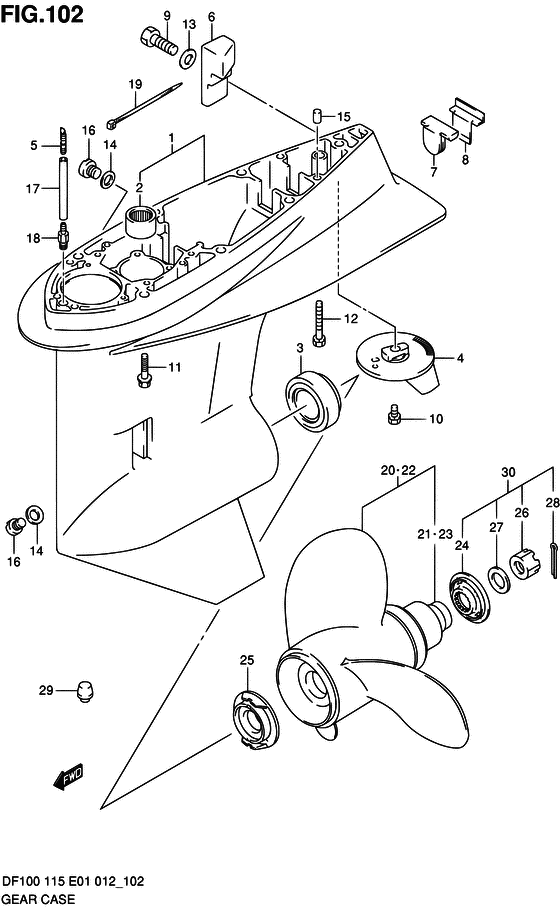

Gear case ((DF115Z E01)) Diagram Suzuki DF100 TL/X
- Year
- 2012
- Model
- DF100
- Year
- 2012
- Engine
- 10002F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55110-92J00-0EP CASE ASSY,GEAR |
55110-92J00-0EP |
US $1,186.80 |
||
|
2
|
2
09263-28016-000 BEARING(28.6X38X31.8)Bearing, pinion |
09263-28016-000 |
from US $54.40 |
||
|
3
|
3
09265-50003-000 BEARING(50X85X26) |
09265-50003-000 |
from US $66.25 |
||
|
4
|
4
55125-92J00-000 TAB,TRIM |
55125-92J00-000 |
from US $117.04 |
||
|
5
|
5
55127-87D00-000 PLUG,UNIONUnion, speedometer hose |
55127-87D00-000 |
US $1.76 |
||
|
6
|
6
55321-90J01-000 ANODE,GEAR CASE |
55321-90J01-000 |
from US $8.27 |
||
|
7
|
7
55332-87D11-000
RUBBER,EXHAUST SEAL
|
55332-87D11-000 |
— | ||
| replacement | |||||
|
7
|
7
55332-87D12-000 Rubber,exhaust Seal |
55332-87D12-000 |
US $4.80 |
||
|
8
|
8
55333-87D10-000 PLATE,EXHAUST SEALPlate, exhaust seal |
55333-87D10-000 |
US $7.95 |
||
|
9
|
9
09100-06131-000 BOLT(6X12) |
09100-06131-000 |
from US $1.07 |
||
|
10
|
10
09116-08137-000 BOLT(8X22)Bolt (8x22) |
09116-08137-000 |
from US $3.92 |
||
|
11
|
11
09116-10150-000 BOLT(10X55) |
09116-10150-000 |
from US $6.88 |
||
|
12
|
12
09117-10039-000 BOLT(10X80)Bolt (10x80) |
09117-10039-000 |
from US $14.28 |
||
|
13
|
13
09160-06085-000 WASHER(6.5X15X1)Washer (6.5x15x1.0) |
09160-06085-000 |
from US $0.91 |
||
|
14
|
14
09168-10022-000 GASKET(10X17X1.5) |
09168-10022-000 |
from US $1.28 |
||
|
15
|
15
09202-08006-000 PIN(8X12)Pin, knock |
09202-08006-000 |
from US $1.96 |
||
|
16
|
16
09248-10008-000 PLUG(10X7.5) |
09248-10008-000 |
from US $1.28 |
||
|
17
|
17
09355-40805-00B HOSE(4X8X2000)TRANSOM(X) L:2000->1100 |
09355-40805-00B |
from US $19.01 |
||
|
18
|
18
09362-09008-000 UNION |
09362-09008-000 |
from US $2.72 |
||
|
19
|
19
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
20
|
20
58200-90J00-000
PROPELLER(3X14-1/4X18)
OPT |
58200-90J00-000 |
— | ||
|
20
|
20
58200-90J10-000
PROPELLER(3X14-1/4X20)
OPT |
58200-90J10-000 |
— | ||
|
20
|
20
58200-90J20-000
PROPELLER(3X14-1/4X22)
OPT |
58200-90J20-000 |
— | ||
|
20
|
20
58200-90J30-000 PROPELLER(3X14-1/4X24)OPT |
58200-90J30-000 |
US $1,792 |
||
|
21
|
21
58120-90J00-000 BUSH,PROPELLEROPT |
58120-90J00-000 |
from US $64.47 |
||
|
22
|
22
58200-92J00-000
PROPELLER(3X14.1/4X18)
OPT COUNTER ROTATION |
58200-92J00-000 |
— | ||
|
22
|
22
58200-92J10-000
PROPELLER(3X14-1/4X20)
OPT COUNTER ROTATION |
58200-92J10-000 |
— | ||
|
22
|
22
58200-92J20-000
PROPELLER(3X14-1/4X22)
OPT COUNTER ROTATION |
58200-92J20-000 |
— | ||
|
22
|
22
58200-92J30-000 PROPELLER(3X14-1/4X24)OPT COUNTER ROTATION |
58200-92J30-000 |
US $1,168.64 |
||
|
23
|
23
58120-90J00-000 BUSH,PROPELLEROPT |
58120-90J00-000 |
from US $64.47 |
||
|
24
|
24
57633-90J02-000 SPACER,PROPELLER NUTSpacer, propeller nut |
57633-90J02-000 |
US $77.63 |
||
| replacement | |||||
|
24
|
24
57633-90J10-000 SPACER,PROPELLER NUT |
57633-90J10-000 |
US $35.20 |
||
|
25
|
25
57635-92J01-000 STOPPER,PROPELLER BUSH |
57635-92J01-000 |
US $134.89 |
||
| replacement | |||||
|
25
|
25
57635-92J10-000 STOPPER,PROPELLER BUSH |
57635-92J10-000 |
US $51.20 |
||
|
26
|
26
09141-18005-000 NUT |
09141-18005-000 |
from US $7.22 |
||
|
27
|
27
09160-18028-000 WASHER(18.5X31X1) |
09160-18028-000 |
from US $2.24 |
||
|
28
|
28
09204-03003-000 PIN |
09204-03003-000 |
from US $1.12 |
||
|
29
|
29
55116-87E00-000 PLUG,GEAR CASEOPT |
55116-87E00-000 |
US $25.58 |
||
|
30
|
30
57630-90J00-000 KIT,PROPELLER NUTOPT |
57630-90J00-000 |
US $57.26 |
||
| replacement | |||||
|
30
|
30
57630-90J10-000 KIT,PROPELLER NUTOPT |
57630-90J10-000 |
from US $44 |
||
|
31
|
31
25700-90J01-000 SEALING KIT,GEAR CASEOPT NOT ILLUSTRATED |
25700-90J01-000 |
from US $65.14 |
||
