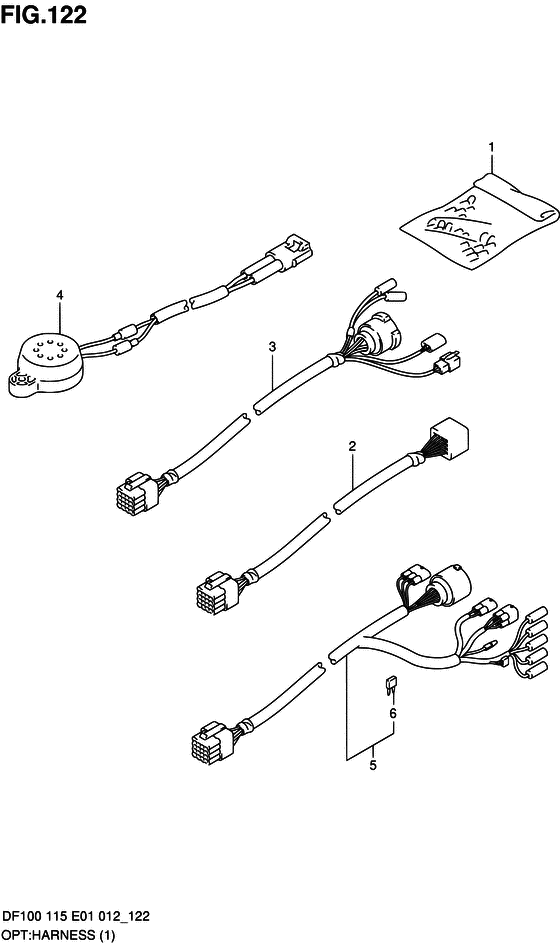

Opt:harness ((1)) Diagram Suzuki DF100 TL/X
- Year
- 2012
- Model
- DF100
- Year
- 2012
- Engine
- 10002F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set |
36990-87D00-000 |
US $12.02 |
||
|
2
|
2
36620-93J10-000
WIRE ASSY,REMOCON EXT(L:2000)
L:2000 |
36620-93J10-000 |
— | ||
| replacement | |||||
|
2
|
2
36620-93J11-000 Wire Assy,remocon Ext(L:2000)L:2000 |
36620-93J11-000 |
US $94.94 |
||
|
2
|
2
36620-93J40-000
WIRE ASSY,REMOCON EXT(L:3000)
L:3000 |
36620-93J40-000 |
— | ||
| replacement | |||||
|
2
|
2
36620-93J41-000
Wire Assy,remote Control Ext
L:3000 |
36620-93J41-000 |
— | ||
|
3
|
3
36620-93J30-000
WIRE ASSY,REMOCON(L:2000)
L:2000 |
36620-93J30-000 |
— | ||
| replacement | |||||
|
3
|
3
36620-93J31-000 Wire Assy,remocon(L:2000)L:2000 |
36620-93J31-000 |
US $148.80 |
||
|
4
|
4
38500-93J00-000
BUZZER ASSY,WARNING
|
38500-93J00-000 |
— | ||
| replacement | |||||
|
4
|
4
38500-93J90-000 BUZZER,WARNING |
38500-93J90-000 |
from US $28.80 |
||
|
5
|
5
36620-93J02-000
WIRE ASSY,REMOTE CONTROL
|
36620-93J02-000 |
— | ||
| replacement | |||||
|
5
|
5
36620-93J03-000
Wire Assy,remote Control
|
36620-93J03-000 |
— | ||
|
5
|
5
36620-93J52-000
WIRE ASSY,REMOTE CONTROL
|
36620-93J52-000 |
— | ||
| replacement | |||||
|
5
|
5
36620-93J53-000 Wire Assy,remote Control |
36620-93J53-000 |
US $198.72 |
||
|
5
|
5
36620-93J62-000
WIRE ASSY,REMOTE CONTROL
|
36620-93J62-000 |
— | ||
| replacement | |||||
|
5
|
5
36620-93J63-000 Wire Assy,remote Control |
36620-93J63-000 |
US $246.56 |
||
|
6
|
6
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.01 |
||
