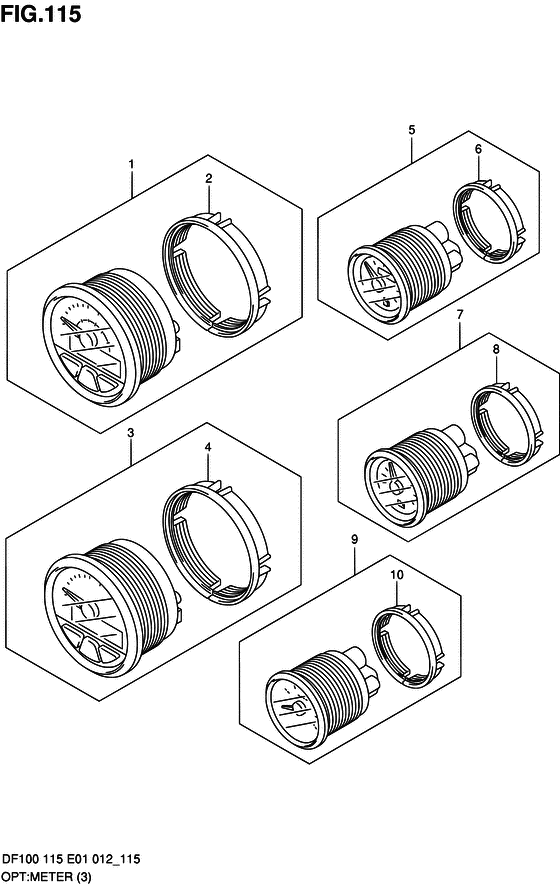

Opt:meter ((3)) Diagram Suzuki DF100 TL/X
- Year
- 2012
- Model
- DF100
- Year
- 2012
- Engine
- 10002F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-98J11-000
Speedometer assy,130km/h white
MAX 130KM/H WHITE |
34100-98J11-000 |
— | ||
|
1
|
1
34100-98J41-000
Speedometer assy,60 knots w
MAX 60KNOTS WHITE |
34100-98J41-000 |
— | ||
|
2
|
2
34112-98J00-000
NUT
|
34112-98J00-000 |
— | ||
|
3
|
3
34200-98J13-000
Tachometer assy,white
WHITE |
34200-98J13-000 |
— | ||
|
4
|
4
34112-98J00-000
NUT
|
34112-98J00-000 |
— | ||
|
5
|
5
34300-98J00-000
Gauge assy, fuel
BLACK |
34300-98J00-000 |
— | ||
|
5
|
5
34300-98J10-000
GAUGE ASSY,FUEL(WHITE)
WHITE |
34300-98J10-000 |
— | ||
|
6
|
6
34815-98J00-000
NUT
|
34815-98J00-000 |
— | ||
|
7
|
7
34600-98J00-000
Meter assy, voltage
BLACK |
34600-98J00-000 |
— | ||
|
7
|
7
34600-98J10-000
METER ASSY,VOLTAGE W
WHITE |
34600-98J10-000 |
— | ||
|
8
|
8
34815-98J00-000
NUT
|
34815-98J00-000 |
— | ||
|
9
|
9
34800-98J10-000
METER ASSY,TRIM W
WHITE |
34800-98J10-000 |
— | ||
|
10
|
10
34815-98J00-000
NUT
|
34815-98J00-000 |
— |
