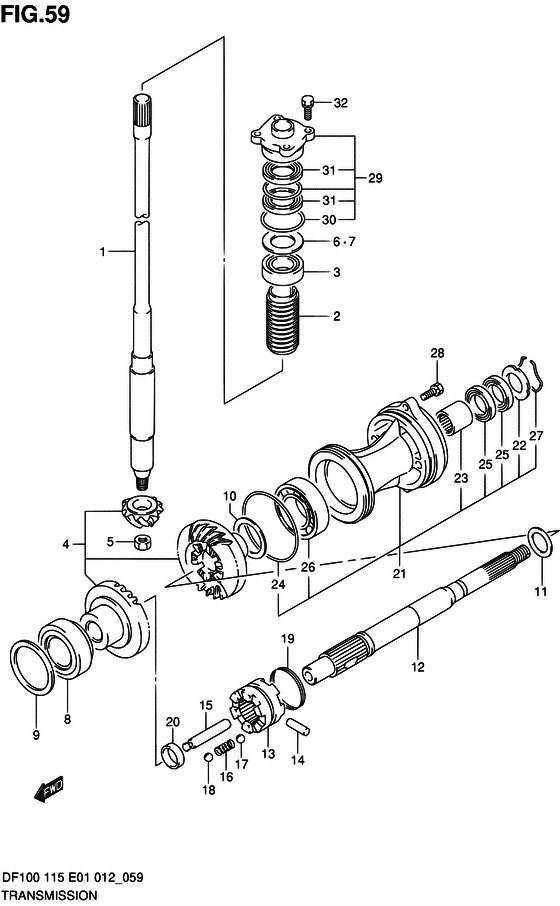

Transmission ((DF100T E01)) Diagram Suzuki DF100 TL/X
- Year
- 2012
- Model
- DF100
- Year
- 2012
- Engine
- 10002F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-92J60-000 SHAFT,DRIVE(L)TRANSOM(L) |
57110-92J60-000 |
US $498.56 |
||
|
1
|
1
57110-92J70-000 SHAFT,DRIVE(X)TRANSOM(X) |
57110-92J70-000 |
from US $495 |
||
|
2
|
2
57133-90J01-000
Collar, drive shaft
|
57133-90J01-000 |
— | ||
| replacement | |||||
|
2
|
2
57133-90J02-000 COLLAR,DRIVE SHAFT |
57133-90J02-000 |
US $11.68 |
||
|
3
|
3
09265-25040-000
Bearing
|
09265-25040-000 |
— | ||
| replacement | |||||
|
3
|
3
09265-25046-000 BEARING(25X52X19.25) |
09265-25046-000 |
from US $44 |
||
|
4
|
4
57300-90820-000 PINION & GEAR SET |
57300-90820-000 |
US $766.40 |
||
|
5
|
5
09140-14024-000 NUT |
09140-14024-000 |
from US $2.08 |
||
|
6
|
6
57500-87873-000 SHIM SET,DRIVE SHAFT |
57500-87873-000 |
from US $37.60 |
||
|
7
|
7
09181-40186-000 SHIM(41X52X0.5)Shim (t:0.50) |
09181-40186-000 |
from US $2.40 |
||
|
7
|
7
09181-40190-000 SHIM(40X52X0.8)Shim (t:0.80) |
09181-40190-000 |
from US $1.49 |
||
|
7
|
7
09181-40195-000 SHIM(40X52X1)Shim (t:1.00) |
09181-40195-000 |
from US $2.58 |
||
|
7
|
7
09181-41002-000 SHIM(41X52X0.55) |
09181-41002-000 |
US $3.13 |
||
|
7
|
7
09181-41003-000 SHIM(41X52X0.6)Shim (t:0.60) |
09181-41003-000 |
from US $2.36 |
||
|
7
|
7
09181-41004-000 SHIM(41X52X0.65)Shim (t:0.65) |
09181-41004-000 |
from US $2.30 |
||
|
7
|
7
09181-41005-000 SHIM(41X52X0.7)Shim (t:0.70) |
09181-41005-000 |
from US $2.30 |
||
|
7
|
7
09181-41006-000 SHIM(41X52X0.75)Shim (t:0.75) |
09181-41006-000 |
from US $2.30 |
||
|
7
|
7
09181-41008-000 SHIM(41X52X0.85)Shim (t:0.85) |
09181-41008-000 |
from US $2.30 |
||
|
7
|
7
09181-41009-000 SHIM(41X52X0.9)Shim (t:0.90) |
09181-41009-000 |
from US $9.93 |
||
|
7
|
7
09181-41010-000 SHIM(41X52X0.95)Shim (t:0.95) |
09181-41010-000 |
from US $2.30 |
||
|
7
|
7
09181-41012-000 SHIM(41X52X1.05)Shim (t:1.05) |
09181-41012-000 |
from US $2.72 |
||
|
7
|
7
09181-41013-000 SHIM(41X52X1.1)Shim (t:1.10) |
09181-41013-000 |
from US $2.30 |
||
|
7
|
7
09181-41014-000 SHIM(41X52X1.15)Shim (t:1.15) |
09181-41014-000 |
from US $2.30 |
||
|
8
|
8
09265-50003-000 BEARING(50X85X26)PART OF GEAR CASE |
09265-50003-000 |
from US $66.25 |
||
|
9
|
9
09181-50020-000 SHIM(50X65X0.45) |
09181-50020-000 |
from US $2.56 |
||
|
9
|
9
09181-50021-000 SHIM(50X65X0.5) |
09181-50021-000 |
from US $2.03 |
||
|
9
|
9
09181-50022-000 SHIM(50X65X0.55) |
09181-50022-000 |
from US $5.31 |
||
|
9
|
9
09181-50023-000 SHIM(50X65X0.6) |
09181-50023-000 |
from US $2.03 |
||
|
9
|
9
09181-50024-000 SHIM(50X65X0.65)Shim (t:0.65) |
09181-50024-000 |
from US $2.03 |
||
|
9
|
9
09181-50025-000 SHIM(50X65X0.7)Shim (t:0.70) |
09181-50025-000 |
from US $2.03 |
||
|
9
|
9
09181-50026-000 SHIM(50X65X0.75)Shim (t:0.75) |
09181-50026-000 |
from US $2.03 |
||
|
9
|
9
09181-50027-000 SHIM(50X65X0.8)Shim (t:0.80) |
09181-50027-000 |
from US $2.03 |
||
|
9
|
9
09181-50028-000 SHIM(50X65X0.85)Shim (t:0.85) |
09181-50028-000 |
from US $2.03 |
||
|
9
|
9
09181-50029-000 SHIM(50X65X0.95)Shim (t:0.90) |
09181-50029-000 |
from US $2.03 |
||
|
10
|
10
09181-45003-000 SHIM(45X56X1)Shim (t:1.0) |
09181-45003-000 |
US $2.84 |
||
|
10
|
10
09181-45004-000 SHIM(45X56X1.1)Shim (t:1.1) |
09181-45004-000 |
from US $2.84 |
||
|
10
|
10
09181-45005-000 SHIM(45X56X1.2)Shim (t:1.2) |
09181-45005-000 |
US $2.84 |
||
|
10
|
10
09181-45006-000 SHIM(45X56X1.3)Shim (t:1.3) |
09181-45006-000 |
US $2.84 |
||
|
10
|
10
09181-45007-000 SHIM(45X56X1.4)Shim (t:1.4) |
09181-45007-000 |
US $2.84 |
||
|
10
|
10
09181-45008-000 SHIM(45X56X1.5)Shim (t:1.5) |
09181-45008-000 |
US $2.84 |
||
|
10
|
10
09181-45009-000 SHIM(45X56X1.6)Shim (t:1.6) |
09181-45009-000 |
US $3.36 |
||
|
11
|
11
09181-28015-000 SHIM(28X33.5X0.9)Shim (t:1.5) |
09181-28015-000 |
from US $1.62 |
||
|
11
|
11
09181-28016-000 SHIM(28X33.5X1) |
09181-28016-000 |
from US $3.42 |
||
|
11
|
11
09181-28017-000 SHIM(28X33.5X1.2) |
09181-28017-000 |
from US $1.62 |
||
|
11
|
11
09181-28018-000 SHIM(28X33.5X1.3) |
09181-28018-000 |
from US $1.62 |
||
|
11
|
11
09181-28019-000 SHIM(28X33.5X1.4) |
09181-28019-000 |
from US $1.62 |
||
|
11
|
11
09181-28020-000 SHIM(28X33.5X1.6) |
09181-28020-000 |
from US $1.82 |
||
|
12
|
12
57610-90J20-000 SHAFT,PROPELLERShaft assy, propeller (spline 19) |
57610-90J20-000 |
US $371.68 |
||
|
13
|
13
57621-92J10-000
Shifter, clutch dog
|
57621-92J10-000 |
— | ||
| replacement | |||||
|
13
|
13
57621-92J20-000 SHIFTER,CLUTCH DOG |
57621-92J20-000 |
US $103.20 |
||
|
14
|
14
09202-07002-000 PIN(7X48) |
09202-07002-000 |
from US $4.93 |
||
|
15
|
15
57631-92J00-000
PIN,CONNECTOR
|
57631-92J00-000 |
— | ||
| replacement | |||||
|
15
|
15
57631-92J01-000 Pin,connector |
57631-92J01-000 |
US $16.41 |
||
|
16
|
16
09440-09040-000 SPRING |
09440-09040-000 |
from US $2.84 |
||
|
17
|
17
06111-07004-000 BALLNO.1 |
06111-07004-000 |
from US $0.76 |
||
|
18
|
18
06111-11004-000 BALLNO.2 |
06111-11004-000 |
from US $1.28 |
||
|
19
|
19
09440-49004-000 SPRING |
09440-49004-000 |
from US $1.76 |
||
|
20
|
20
57616-90J00-000 SPACER,CLUTCH DOG FORWARD |
57616-90J00-000 |
US $10.40 |
||
|
21
|
21
56120-90J02-0EP HOUSING,PROPELLER SHAFT(BLACK) |
56120-90J02-0EP |
US $379.04 |
||
|
22
|
22
56123-90J00-000 WASHER,OIL SEAL PROTECTER |
56123-90J00-000 |
US $2.24 |
||
|
23
|
23
09263-28047-000 BEARING(28X37X30) |
09263-28047-000 |
US $20.80 |
||
|
24
|
24
09280-97001-000 O RING(D:3.5,ID:95)O ring (d:3.5,id:95.0) |
09280-97001-000 |
from US $2.27 |
||
|
25
|
25
09282-28002-000 SEAL,OIL(28X50X6) |
09282-28002-000 |
from US $5.62 |
||
|
26
|
26
08113-62090-000 BEARINGBearing |
08113-62090-000 |
from US $25.84 |
||
|
27
|
27
09387-52001-000 SET,RING |
09387-52001-000 |
US $1.62 |
||
|
28
|
28
09117-08047-000 BOLT(8X30) |
09117-08047-000 |
from US $1.76 |
||
|
29
|
29
56130-90J00-000 HOUSING,DRIVE SHAFT OIL SEAL |
56130-90J00-000 |
from US $58.88 |
||
|
30
|
30
09280-46004-000 O RING(D:3.5,ID:45.7) |
09280-46004-000 |
from US $1.47 |
||
|
31
|
31
09282-24004-000 SEAL,OIL(24X40X7)Oil seal |
09282-24004-000 |
from US $5.62 |
||
|
32
|
32
09117-08057-000
Bolt
|
09117-08057-000 |
— | ||
| replacement | |||||
|
32
|
32
09117-08110-000 BOLT(8X25) |
09117-08110-000 |
from US $1.92 |
||
