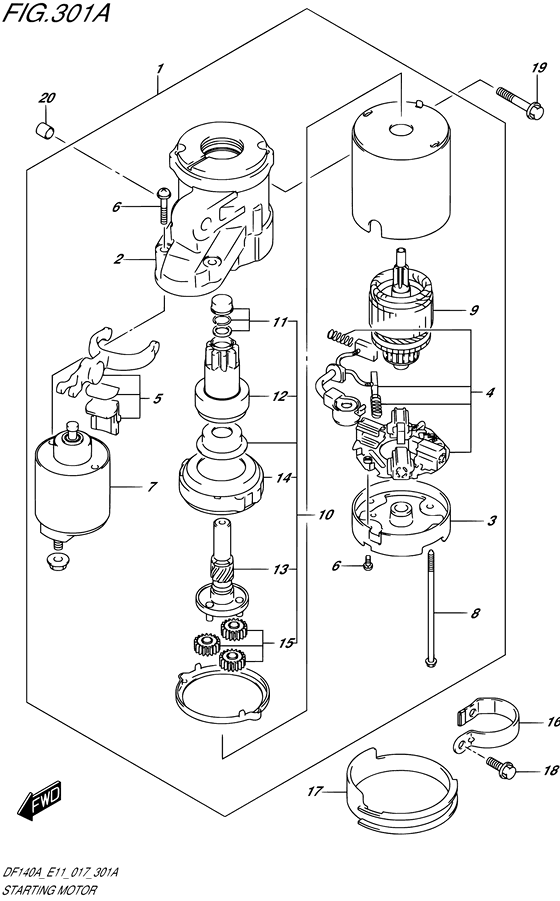

Starting motor Diagram Suzuki DF100A TL/X
- Year
- 2017
- Model
- DF100A
- Year
- 2017
- Engine
- 10003F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 100
- Sales region
- General Export (P11)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-92J00-000 MOTOR ASSY,STARTING |
31100-92J00-000 |
US $784.96 |
||
|
2
|
2
31150-92J00-000 HOUSING COMP,FRONT |
31150-92J00-000 |
US $155.66 |
||
|
3
|
3
31170-92J00-000 HOUSING COMP,REAR |
31170-92J00-000 |
US $27.97 |
||
|
4
|
4
31173-92J00-000 HOLDER ASSY,BRUSH |
31173-92J00-000 |
US $59.62 |
||
|
5
|
5
31191-92J00-000 LEVER,SHIFT |
31191-92J00-000 |
US $13.14 |
||
|
6
|
6
31192-92J00-000 SCREW SET |
31192-92J00-000 |
US $5.81 |
||
|
7
|
7
31220-92J00-000 SWITCH ASSY |
31220-92J00-000 |
US $180.69 |
||
|
8
|
8
31261-75F10-000 Bolt |
31261-75F10-000 |
from US $4.21 |
||
|
9
|
9
31311-63J00-000 ARMATURE |
31311-63J00-000 |
US $285.20 |
||
|
10
|
10
31340-92J00-000 CLUTCH SET,STARTING MOTOR |
31340-92J00-000 |
US $301.76 |
||
|
11
|
11
31312-92J00-000 SET,PINION STOPPER |
31312-92J00-000 |
US $10.82 |
||
|
12
|
12
31320-92J00-000 PINION COMP |
31320-92J00-000 |
US $224.48 |
||
|
13
|
13
31341-92J00-000 SHAFT,PINION |
31341-92J00-000 |
US $86.48 |
||
|
14
|
14
31343-63J00-000 INTERNAL GEAR |
31343-63J00-000 |
from US $29.34 |
||
|
15
|
15
31344-63J00-000 GEAR ASSY |
31344-63J00-000 |
from US $17.53 |
||
|
16
|
16
31912-90J00-000 BAND,STARTING MOTOR |
31912-90J00-000 |
US $5.23 |
||
|
17
|
17
31918-92J00-000 DAMPER,LOWER |
31918-92J00-000 |
US $6.88 |
||
|
18
|
18
01550-08207-000 Bolt |
01550-08207-000 |
from US $1.12 |
||
|
19
|
19
01550-10507-000 Bolt |
01550-10507-000 |
from US $6.46 |
||
|
20
|
20
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
