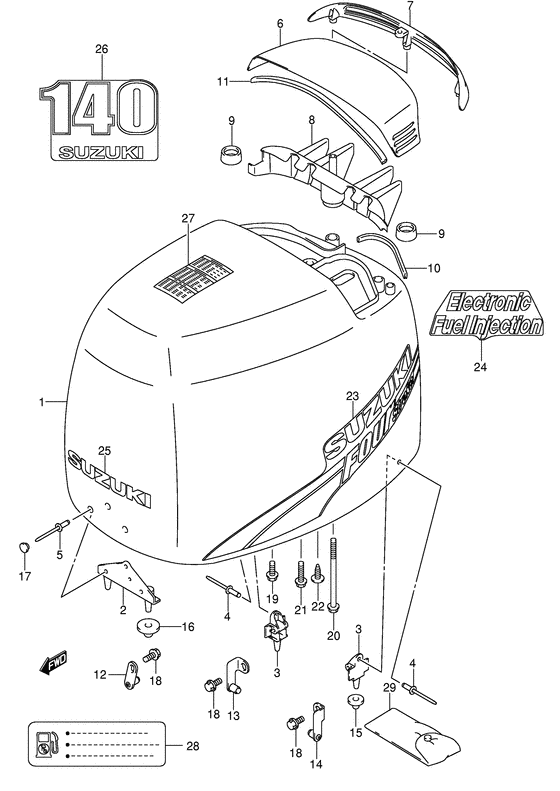

Engine cover (Df140wt) Diagram Suzuki DF115 TL/X; WTL/X
- Year
- 2003
- Model
- DF115
- Year
- 2003
- Engine
- 11501F-371001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61410-92840-0EP
Cover set, engine (black)
Cover set, engine (black); |
61410-92840-0EP |
— | ||
| replacements | |||||
|
1
|
1
61410-92845-0EP
COVER SET,ENGINE
Cover set, engine (black); |
61410-92845-0EP |
— | ||
|
1
|
1
61410-92846-0EP
Cover Set,engine
Cover set, engine (black); |
61410-92846-0EP |
— | ||
|
1
|
1
61410-92847-0EP Cover Set,engineCover set, engine (black); |
61410-92847-0EP |
US $1,210.88 |
||
|
2
|
2
61621-87D02-000 BRACKET,FASTENER,FRBracket, fastener front Bracket, fastener front; |
61621-87D02-000 |
from US $10.64 |
||
|
3
|
3
61644-90J00-000 BRACKET,FASTENER RRBracket, fastener rear |
61644-90J00-000 |
US $85.12 |
||
|
4
|
4
09229-04028-000
Rivet
|
09229-04028-000 |
— | ||
| replacements | |||||
|
4
|
4
09229-04028-XC0 RIVET |
09229-04028-XC0 |
from US $4.54 |
||
|
4
|
4
09229-04025-000 RIVETRivet, fastener |
09229-04025-000 |
from US $2.66 |
||
|
5
|
5
09229-04046-000 RIVET |
09229-04046-000 |
from US $4.49 |
||
|
6
|
6
61431-92J00-0EP
Handle, tilt up (black)
Handle, tilt up (black); |
61431-92J00-0EP |
— | ||
| replacement | |||||
|
6
|
6
61431-92J02-0EP HANDLE,TILT UPHandle, tilt up (black); |
61431-92J02-0EP |
US $226.32 |
||
|
7
|
7
61432-92J00-000 LOUVER,TILT UP HANDLE |
61432-92J00-000 |
US $55.20 |
||
|
8
|
8
61433-92J00-000 COVER,AIR INTAKE INNER |
61433-92J00-000 |
US $40.48 |
||
|
9
|
9
61438-92J00-000 CUSHION,AIR INTAKE INNER |
61438-92J00-000 |
US $5.85 |
||
|
10
|
10
61439-90J00-000
SEAL,TILT UP HANDLE
|
61439-90J00-000 |
— | ||
| replacement | |||||
|
10
|
10
61439-90J01-000 Seal,tilt Up Handle |
61439-90J01-000 |
US $5.63 |
||
|
11
|
11
61439-92J00-000
SEAL,TILT UP HANDLE
|
61439-92J00-000 |
— | ||
| replacement | |||||
|
11
|
11
61439-92J01-000 Seal,tilt Up Handle |
61439-92J01-000 |
US $36.80 |
||
|
12
|
12
61610-90J21-000
Fastener
|
61610-90J21-000 |
— | ||
| replacement | |||||
|
12
|
12
61610-93J00-000 FASTENER |
61610-93J00-000 |
US $12.18 |
||
|
13
|
13
61680-90J00-000
Fastener, rear stbd
|
61680-90J00-000 |
— | ||
| replacement | |||||
|
13
|
13
61680-90J01-000 FASTENER,RR STBD |
61680-90J01-000 |
US $7.15 |
||
|
14
|
14
61690-90J00-000
Fastener, rear port
|
61690-90J00-000 |
— | ||
| replacement | |||||
|
14
|
14
61690-90J01-000 FASTENER,RR PORT |
61690-90J01-000 |
US $12.36 |
||
|
15
|
15
09329-10022-000
CUSHION
|
09329-10022-000 |
— | ||
| replacement | |||||
|
15
|
15
09329-10024-000 CUSHION,ENGINE COVER FASTENER |
09329-10024-000 |
from US $3.02 |
||
|
16
|
16
09329-10023-000
CUSHION
|
09329-10023-000 |
— | ||
| replacement | |||||
|
16
|
16
09329-10025-000 Cushion |
09329-10025-000 |
from US $1.89 |
||
|
17
|
17
09250-12013-000
CAP(OD:12.3)
|
09250-12013-000 |
— | ||
| replacement | |||||
|
17
|
17
09250-12015-000 Cap(Od:12.3) |
09250-12015-000 |
from US $3.03 |
||
|
18
|
18
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
19
|
19
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
20
|
20
01550-06957-000 Bolt |
01550-06957-000 |
from US $5.88 |
||
|
21
|
21
09103-06093-000 BOLT(6X20)Bolt (6x20); |
09103-06093-000 |
from US $1.68 |
||
|
22
|
22
03542-06163-000
Screw
|
03542-06163-000 |
— | ||
| replacement | |||||
|
22
|
22
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
23
|
23
61443-90J10-000
Stripe, engine cover stbd
|
61443-90J10-000 |
— | ||
| replacement | |||||
|
23
|
23
61443-90J11-000 STRIPE,ENG COVER STBD |
61443-90J11-000 |
US $65.14 |
||
|
23
|
23
61453-90J10-000
Stripe, engine cover port
|
61453-90J10-000 |
— | ||
| replacement | |||||
|
23
|
23
61453-90J11-000 STRIPE,ENG COVER PORT |
61453-90J11-000 |
US $88.93 |
||
|
24
|
24
61446-87J00-000
Decal, efi
|
61446-87J00-000 |
— | ||
| replacement | |||||
|
24
|
24
61446-87J01-000 DECAL,EFI |
61446-87J01-000 |
US $11.55 |
||
|
25
|
25
68111-47C10-Y2D
Mark, emblem (silver)
Mark, emblem (silver); |
68111-47C10-Y2D |
— | ||
| replacements | |||||
|
25
|
25
68111-90J01-000 MARK,EMBLEM FRMark, emblem (silver); |
68111-90J01-000 |
US $14.75 |
||
|
25
|
25
68111-90J00-000
New Genuine Part
Mark, emblem (silver); |
68111-90J00-000 |
— | ||
|
26
|
26
61435-92J10-000
Mark, emblem rear
|
61435-92J10-000 |
— | ||
| replacement | |||||
|
26
|
26
61435-92J11-000 MARK,EMBLEM RR(140) |
61435-92J11-000 |
US $30.40 |
||
|
27
|
27
61458-99E31-000
LABEL,ENGINE COVER
|
61458-99E31-000 |
— | ||
|
28
|
28
69716-99E13-000
LABEL,FUEL LIMITATION
|
69716-99E13-000 |
— | ||
| replacement | |||||
|
28
|
28
69716-99E14-000
Label,fuel Limitation
|
69716-99E14-000 |
— | ||
|
29
|
29
09800-81810-000
Tool set
|
09800-81810-000 |
— | ||
| replacement | |||||
|
29
|
29
09800-81812-000 TOOL ASSY |
09800-81812-000 |
from US $40.11 |
||
