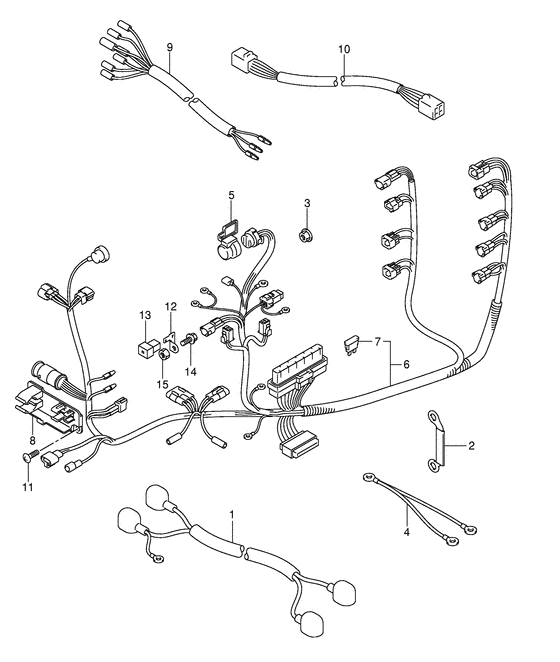

Harness Diagram Suzuki DF115 TL/X; WTL/X
- Year
- 2003
- Model
- DF115
- Year
- 2003
- Engine
- 11501F-371001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33810-90J00-000
Cable, starter motor
|
33810-90J00-000 |
— | ||
| replacements | |||||
|
1
|
1
33810-90J20-000
CABLE ASSY,STARTER MOTOR
|
33810-90J20-000 |
— | ||
|
1
|
1
33810-90J21-000
Cable Assy,starter Motor
|
33810-90J21-000 |
— | ||
|
2
|
2
33831-90J00-000 PLATE,PTT RELAY |
33831-90J00-000 |
US $4.82 |
||
|
3
|
3
08316-10087-000 NUT |
08316-10087-000 |
from US $0.80 |
||
|
4
|
4
33832-90J00-000
CABLE ASSY,TRIM RELAY GROUND
|
33832-90J00-000 |
— | ||
|
5
|
5
33634-99E00-000
CAP,CONNECTOR
Cap, service connector; |
33634-99E00-000 |
— | ||
|
6
|
6
36610-90J20-000
HARNESS ASSY,WIRING
Harness, wiring; |
36610-90J20-000 |
— | ||
| replacement | |||||
|
6
|
6
36610-90J21-000 Harness Assy,wiringHarness, wiring; |
36610-90J21-000 |
US $598.40 |
||
|
7
|
7
09481-30501-000 FUSE(30A)Fuse (30a); |
09481-30501-000 |
from US $1.08 |
||
|
8
|
8
36616-90J00-000
HOLDER,REMOCON CONNECTOR
|
36616-90J00-000 |
— | ||
|
9
|
9
36630-92E00-000 WIRE ASSY,INSTRUMENTWire assy, instrument Wire, instrument; |
36630-92E00-000 |
US $46 |
||
|
10
|
10
36682-92E00-000 WIRE,TRIM METER EXT(L:6500)Wire, trim gauge ext Wire, monitor gauge ext; |
36682-92E00-000 |
US $82.80 |
||
|
11
|
11
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.32 |
||
|
12
|
12
36865-90J00-000 TERMINAL,MAIN FUSE |
36865-90J00-000 |
US $6.11 |
||
|
13
|
13
09481-60401-000 FUSE(60A)Fuse (60a); |
09481-60401-000 |
from US $4.34 |
||
|
14
|
14
01570-06107-000 Bolt |
01570-06107-000 |
from US $4.06 |
||
|
15
|
15
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
