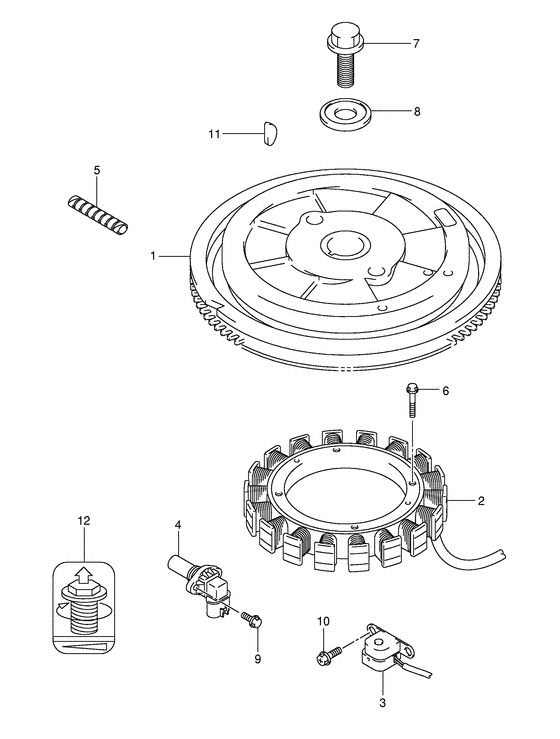

Magneto Diagram Suzuki DF115 TL/X; WTL/X
- Year
- 2003
- Model
- DF115
- Year
- 2003
- Engine
- 11501F-371001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32102-92J10-000 FLYWHEEL ASSY |
32102-92J10-000 |
US $1,041.92 |
||
|
2
|
2
32120-90J10-000 COIL,BATTERY CHARGER |
32120-90J10-000 |
US $570.24 |
||
|
3
|
3
32160-87J10-000
Coil, ignition timing
Coil, ignitin timing; |
32160-87J10-000 |
— | ||
| replacements | |||||
|
3
|
3
32160-87L00-000
COIL,IGN TIMING
Coil, ignitin timing; |
32160-87L00-000 |
— | ||
|
3
|
3
32160-87L01-000 Coil,ign TimingCoil, ignitin timing; |
32160-87L01-000 |
from US $82.17 |
||
|
4
|
4
33220-76G02-000 SENSOR ASSY,CAM POSITIONSensor, cam position |
33220-76G02-000 |
from US $104.88 |
||
|
5
|
5
33833-91J00-000 TUBE,SWITCH LEAD(L:250)Tube; L:250->00 |
33833-91J00-000 |
US $4.64 |
||
|
6
|
6
09103-06231-000 BOLT(6X35)Bolt (6x35) Bolt (6x35); |
09103-06231-000 |
from US $4.42 |
||
|
7
|
7
09103-16003-000
Bolt (16x50)
Bolt (16x50); |
09103-16003-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-16004-000 BOLT(16X50)Bolt (16x50); |
09103-16004-000 |
from US $7.36 |
||
|
8
|
8
09160-16048-000 WASHER(16.5X60X7)Washer (16.5x60x7.0) Washer (16.5x60x7.0); |
09160-16048-000 |
from US $22.13 |
||
|
9
|
9
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
10
|
10
02162-05163-000
Bolt
|
02162-05163-000 |
— | ||
| replacement | |||||
|
10
|
10
02162-0516A-000 SCREW |
02162-0516A-000 |
from US $0.70 |
||
|
11
|
11
08341-31059-000 KEYKey Key, woodruff; |
08341-31059-000 |
from US $1.60 |
||
|
12
|
12
32118-90J00-000 LABEL,MAG BOLT |
32118-90J00-000 |
from US $3.02 |
||
