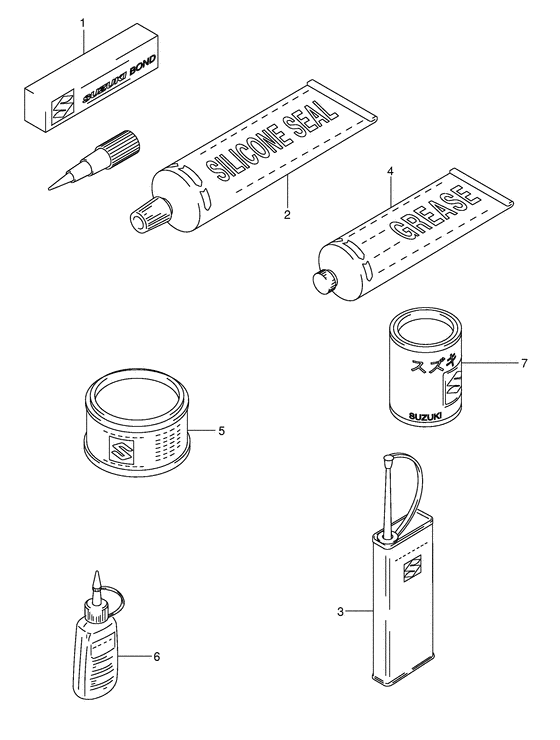

Optional Diagram Suzuki DF115 TL/X; WTL/X
- Year
- 2003
- Model
- DF115
- Year
- 2003
- Engine
- 11501F-371001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
99000-31010-000
LIQUID GSKT 150G BLACK
Liquid gasket; For crankcase |
99000-31010-000 |
— | ||
|
1
|
1
99000-31120-000
Silicon seal 50
Silicone sealant; 50g,for gear case |
99000-31120-000 |
— | ||
| replacement | |||||
|
1
|
1
93691-80030-000
SEAL
Silicone sealant; 50g,for gear case |
93691-80030-000 |
— | ||
|
2
|
2
93691-80030-000
SEAL
Silicone sealant; 100g,for gear case |
93691-80030-000 |
— | ||
|
3
|
3
99000-32040-000
THREAD LOCK NO.1401 CLEAR 200G
Cement, thread lock; 200g |
99000-32040-000 |
— | ||
|
4
|
4
99000-25160-000
Grease resistan
Grease, water resistant; 250g |
99000-25160-000 |
— | ||
| replacement | |||||
|
4
|
4
99000-25350-000
GREASE,WATER RESISTANT EP2
Grease, water resistant; 250g |
99000-25350-000 |
— | ||
|
5
|
5
99000-25010-000
Suzuki super grease a
Super grease a; 350g,for engine oil seal |
99000-25010-000 |
— | ||
| replacements | |||||
|
5
|
5
99000-25011-000
GREASE(A)450G
Super grease a; 350g,for engine oil seal |
99000-25011-000 |
— | ||
|
5
|
5
99000-25480-000
Ecstar Grease(A)
Super grease a; 350g,for engine oil seal |
99000-25480-000 |
— | ||
|
6
|
6
99000-32050-000
1342 threadlock
Thread lock cement; 50g (1342) |
99000-32050-000 |
— | ||
| replacement | |||||
|
6
|
6
99000-32160-000
THREAD LOCK NO.1342H BLUE 50G
Thread lock cement; 50g (1342) |
99000-32160-000 |
— | ||
|
6
|
6
99000-32020-000
THREAD LOCK(1333B RED 50G)
50g (1333b) |
99000-32020-000 |
— | ||
| replacement | |||||
|
6
|
6
990A0-06E33-10C
ECSTAR TLOCK 13
50g (1333b) |
990A0-06E33-10C |
— | ||
|
7
|
7
99000-10109-0ED
Paint (gray)
Paint (gray); |
99000-10109-0ED |
— | ||
|
8
|
8
99011-90J02-04B MANUAL,OWNER'S DF115/140('03)Model:03, drawing not shown |
99011-90J02-04B |
US $15.46 |
||
