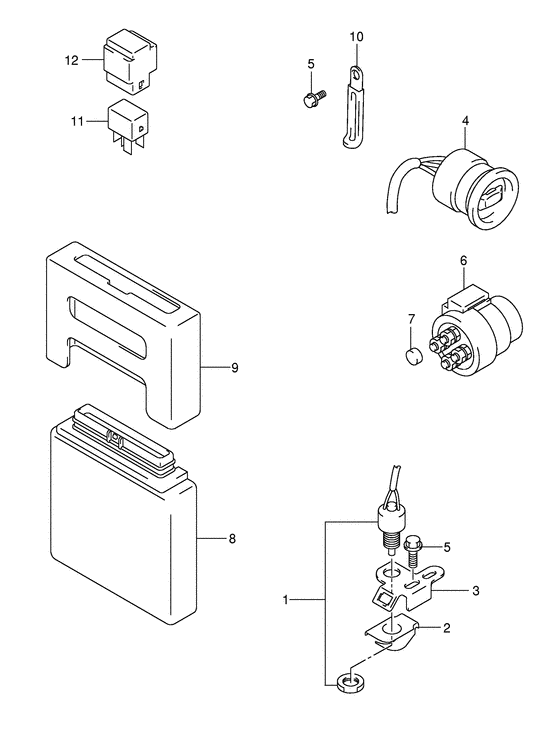

Ptt switch/engine control unit Diagram Suzuki DF115 TL/X; WTL/X
- Year
- 2003
- Model
- DF115
- Year
- 2003
- Engine
- 11501F-371001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37721-99E10-000
Switch assy, neutral
|
37721-99E10-000 |
— | ||
| replacements | |||||
|
1
|
1
37721-99E11-000
SWITCH ASSY,NEUTRAL
|
37721-99E11-000 |
— | ||
|
1
|
1
37721-99E12-000 Switch Assy,neutral |
37721-99E12-000 |
US $47.88 |
||
|
2
|
2
37725-95600-000 ACTUATOR,NEUTRAL SWITCHActuator, neutral switch Actuator, neutral switch; |
37725-95600-000 |
US $6.88 |
||
|
3
|
3
37726-90J00-000
BRACKET,NEUTRAL SWITCH
Bracket, neutral swwitch; |
37726-90J00-000 |
— | ||
|
4
|
4
37850-99E00-000
Switch assy,til
Switch, ptt; |
37850-99E00-000 |
— | ||
| replacement | |||||
|
4
|
4
37850-99E05-000 SWITCH ASSY,PTTSwitch, ptt; |
37850-99E05-000 |
from US $80.80 |
||
|
5
|
5
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
6
|
6
38410-94551-000
Relay assy,trim
Relay, ptt; |
38410-94551-000 |
— | ||
| replacement | |||||
|
6
|
6
38410-94552-000 RELAY ASSY,TRIMRelay, ptt; |
38410-94552-000 |
US $131.01 |
||
|
7
|
7
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
7
|
7
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
from US $1.69 |
||
|
8
|
8
33920-90J50-000
Unit, engine control
Df115wt |
33920-90J50-000 |
— | ||
| replacement | |||||
|
8
|
8
33920-90JB4-000 UNIT,ENGINE CONTROLDf115wt |
33920-90JB4-000 |
US $2,000 |
||
|
8
|
8
33920-92J10-000
Unit, engine control
Df140wt |
33920-92J10-000 |
— | ||
| replacement | |||||
|
8
|
8
33920-92J54-000 UNIT,ENGINE CONTROLDf140wt |
33920-92J54-000 |
US $1,833.52 |
||
|
9
|
9
33925-87J00-000 CUSHION,ENGINE CONTROL UNITCushion, engine control unit Cushion, engine control unit; |
33925-87J00-000 |
US $22.82 |
||
|
10
|
10
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
10
|
10
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
11
|
11
38860-76F01-000 RELAY ASSYRelay, starting motor Relay, engine control unit; |
38860-76F01-000 |
from US $28.80 |
||
|
12
|
12
38915-90J00-000 HOLDER,RELAYHolder, relay; |
38915-90J00-000 |
from US $3.34 |
||
