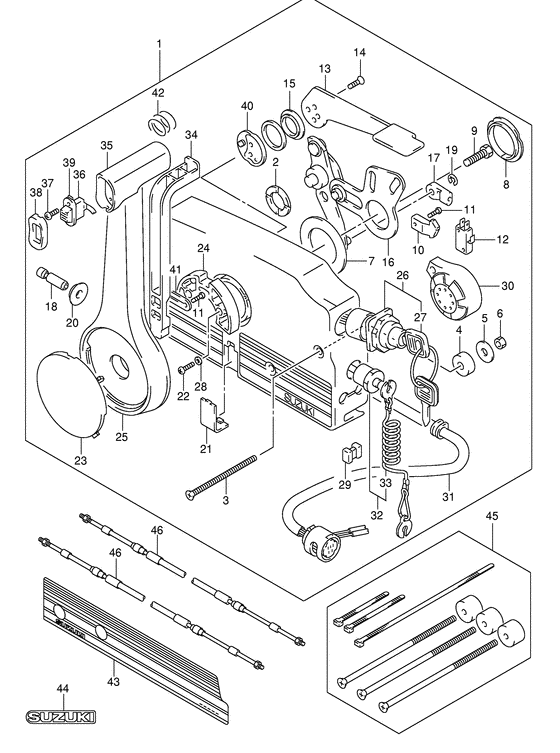

Remote control Diagram Suzuki DF115 TL/X; WTL/X
- Year
- 2003
- Model
- DF115
- Year
- 2003
- Engine
- 11501F-371001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-99E30-0EP
Remote control (black)
Remote control box (black); |
67200-99E30-0EP |
— | ||
| replacement | |||||
|
1
|
1
67200-99E71-000
REMOTE CONTROL ASSY
Remote control box (black); |
67200-99E71-000 |
— | ||
|
2
|
2
67232-95600-000 BUSH |
67232-95600-000 |
US $8.64 |
||
|
3
|
3
67296-95600-000 SCREW |
67296-95600-000 |
US $4.31 |
||
|
4
|
4
67294-95600-000 SPACER |
67294-95600-000 |
US $4.64 |
||
|
5
|
5
09160-06104-000
WASHER(6.5X24X2)
|
09160-06104-000 |
— | ||
|
6
|
6
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
7
|
7
67253-95600-000 WASHER |
67253-95600-000 |
US $8.64 |
||
|
8
|
8
67252-95600-000 BUSH |
67252-95600-000 |
US $15.68 |
||
|
9
|
9
09100-08232-000 BOLT(8X30)Bolt (8x30); |
09100-08232-000 |
US $2.43 |
||
|
10
|
10
67238-87D00-000 GEAR,DRIVEGear, drive; |
67238-87D00-000 |
US $31.28 |
||
|
11
|
11
67296-94300-000 SCREW(4X10) |
67296-94300-000 |
US $0.92 |
||
|
12
|
12
37721-94600-000
Sw assy neutral
Switch, neutral; |
37721-94600-000 |
— | ||
| replacement | |||||
|
12
|
12
37721-94601-000 SWITCH ASSY,NEUTRALSwitch, neutral; |
37721-94601-000 |
US $27.97 |
||
|
13
|
13
67241-99E00-000
LEVER,FREE THROTTLE(BLACK)
Lever, free throttle; |
67241-99E00-000 |
— | ||
|
14
|
14
09126-05003-000 SCREW(5X12)Screw (5x12); |
09126-05003-000 |
from US $1.68 |
||
|
15
|
15
67243-95600-000 BUSH,REMO-CON |
67243-95600-000 |
US $6.99 |
||
|
16
|
16
67220-95630-000 PLATE ASSY |
67220-95630-000 |
US $54.40 |
||
|
17
|
17
67275-95600-000 END,CABLE |
67275-95600-000 |
from US $4.64 |
||
|
18
|
18
67223-99E00-000 KNOB,BRAKE ADJUSTKnob, brake adjust; |
67223-99E00-000 |
US $41.95 |
||
|
19
|
19
67292-94300-000 E RING,REMO-CON |
67292-94300-000 |
from US $1.53 |
||
|
20
|
20
09308-08001-000 GROMMETGrommet |
09308-08001-000 |
from US $0.59 |
||
|
21
|
21
67267-95610-000 COVER,WIRECover, wire (black) |
67267-95610-000 |
US $4.38 |
||
|
22
|
22
67296-95610-000 SCREW |
67296-95610-000 |
US $2.13 |
||
|
23
|
23
67257-95610-000 CAP,LEVER |
67257-95610-000 |
US $15.06 |
||
|
24
|
24
67256-95600-000 HOLDER,NEUTRAL LOCKHolder, neut lock Holder, neutral lock; |
67256-95600-000 |
US $10.72 |
||
|
25
|
25
67251-99E00-000 LEVER,HANDLE |
67251-99E00-000 |
US $72.86 |
||
|
26
|
26
37110-92E02-000
Ignition switch
Switch assy, ignition; |
37110-92E02-000 |
— | ||
| replacements | |||||
|
26
|
26
37110-99E01-000
SWITCH ASSY,IGNITION
Switch assy, ignition; |
37110-99E01-000 |
— | ||
|
26
|
26
37110-99E02-000 Switch Assy,ignitionSwitch assy, ignition; |
37110-99E02-000 |
US $68.82 |
||
|
27
|
27
37141-92E00-000 KEY(11)Key (11); |
37141-92E00-000 |
US $13.91 |
||
|
27
|
27
37141-92E10-000 KEY(12)Key (12); |
37141-92E10-000 |
US $13.91 |
||
|
27
|
27
37141-92E20-000 KEY(13)Key (13); |
37141-92E20-000 |
US $13.91 |
||
|
27
|
27
37141-92E30-000 KEY(14)Key (14); |
37141-92E30-000 |
US $13.91 |
||
|
27
|
27
37141-92E40-000 KEY(15)Key (15); |
37141-92E40-000 |
US $13.91 |
||
|
27
|
27
37141-92E50-000 KEY(16)Key (16); |
37141-92E50-000 |
US $13.91 |
||
|
27
|
27
37141-92E60-000 KEY(17)Key (17); |
37141-92E60-000 |
US $13.91 |
||
|
27
|
27
37141-92E70-000 KEY(18)Key (18); |
37141-92E70-000 |
US $13.91 |
||
|
27
|
27
37141-92E80-000 KEY(19)Key (19); |
37141-92E80-000 |
US $13.91 |
||
|
27
|
27
37141-92E90-000 KEY(20)Key (20); |
37141-92E90-000 |
US $13.91 |
||
|
28
|
28
67297-95600-000 WASHER |
67297-95600-000 |
US $2.13 |
||
|
29
|
29
67273-95600-000
SPACER
|
67273-95600-000 |
— | ||
| replacement | |||||
|
29
|
29
67273-95601-000 Spacer |
67273-95601-000 |
US $3.46 |
||
|
30
|
30
38500-92E10-000 BUZZER,WARNING |
38500-92E10-000 |
US $75.07 |
||
|
31
|
31
36620-92E10-000 WIRE ASSY,REMOCON EXT(L:5050) |
36620-92E10-000 |
US $202.40 |
||
|
32
|
32
37820-92E00-000
Switch assy,eme
Switch assy, emergency; |
37820-92E00-000 |
— | ||
| replacements | |||||
|
32
|
32
37820-92E04-000
SWITCH ASSY,EMERGENCY
Switch assy, emergency; |
37820-92E04-000 |
— | ||
|
32
|
32
37820-92E05-000 Switch Assy,emergencySwitch assy, emergency; |
37820-92E05-000 |
from US $48 |
||
|
33
|
33
37823-92E00-000
Plate,lock
Plate; |
37823-92E00-000 |
— | ||
| replacements | |||||
|
33
|
33
37823-92E01-000
PLATE ASSY,EMERGENCY SW LOCK
Plate; |
37823-92E01-000 |
— | ||
|
33
|
33
37823-92E02-000 Plate Assy,emergency Sw LockPlate; |
37823-92E02-000 |
US $19.69 |
||
|
34
|
34
67255-95600-000
ARM,NEUTRAL LOCK
Arm, neutral lock; |
67255-95600-000 |
— | ||
|
35
|
35
67261-95600-000 GRIP |
67261-95600-000 |
US $14.32 |
||
|
36
|
36
37860-94610-000 SWITCH,TRIMSwitch, trim; |
37860-94610-000 |
US $69.55 |
||
|
37
|
37
09139-02003-000 SCREW(2X6)Screw (2x6.0); |
09139-02003-000 |
from US $1.28 |
||
|
38
|
38
67263-95600-000 CAP,GRIPCap, grip; |
67263-95600-000 |
US $5.70 |
||
|
39
|
39
37869-95590-000 CAP,TRIM SWITCHCap, trim switch Cap, trim switch; |
37869-95590-000 |
US $8.83 |
||
|
40
|
40
67245-95600-000 DRUM,FREE THROTTLEDrum assy, free throttle |
67245-95600-000 |
US $18.40 |
||
|
41
|
41
67258-87D00-000 BRACKET,NEUTRAL ARMBracket, neutral arm |
67258-87D00-000 |
US $4.82 |
||
|
42
|
42
67259-87D00-000 SPRING,NEUTRAL ARMSpring, neutral arm Spring, neutral arm; |
67259-87D00-000 |
from US $4.80 |
||
|
43
|
43
67282-95610-000
Decal,rmt cntl
Decal, remocon box port; Opt |
67282-95610-000 |
— | ||
|
44
|
44
68165-16B00-13L
EMBLEM,SUZUKI
Emblem, suzuki (silver); Opt |
68165-16B00-13L |
— | ||
| replacement | |||||
|
44
|
44
68165-16B01-13L Emblem,suzukEmblem, suzuki (silver); Opt |
68165-16B01-13L |
from US $7.15 |
||
|
45
|
45
67140-95600-000
ATTACHMENT KIT,TWIN REMOCON
Attachment, twin remocon kit; Opt |
67140-95600-000 |
— | ||
| replacement | |||||
|
45
|
45
67140-95601-000 Attachment Kit,twin RemoconAttachment, twin remocon kit; Opt |
67140-95601-000 |
US $40.80 |
||
|
46
|
46
67320-89J11-000
Cable, remocon 8f (2.4m)
Cable, remocon 8f (2.4m); Opt |
67320-89J11-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J00-000 CABLE ASSY,REMOCON(8F:2.4M)Cable, remocon 8f (2.4m); Opt |
67320-93J00-000 |
US $177.57 |
||
|
46
|
46
67320-89J21-000
Cable, remocon 10f (3.1m)
Cable, remocon 10f (3.1m); Opt |
67320-89J21-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M)Cable, remocon 10f (3.1m); Opt |
67320-93J10-000 |
from US $56.81 |
||
|
46
|
46
67320-89J31-000
Cable, remocon 12f (3.7m)
Cable, remocon 12f (3.7m); Opt |
67320-89J31-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J20-000 CABLE ASSY,REMOCON(12F:3.7M)Cable, remocon 12f (3.7m); Opt |
67320-93J20-000 |
from US $52.99 |
||
|
46
|
46
67320-89J41-000
Cable, remocon 14f (4.3m)
Cable, remocon 14f (4.3m); Opt |
67320-89J41-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J30-000 CABLE ASSY,REMOCON(14F:4.2M)Cable, remocon 14f (4.3m); Opt |
67320-93J30-000 |
from US $66.67 |
||
|
46
|
46
67320-89J51-000
Cable, remocon 16f (4.9m)
Cable, remocon 16f (4.9m); Opt |
67320-89J51-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J40-000 CABLE ASSY,REMOCON(16F:4.8M)Cable, remocon 16f (4.9m); Opt |
67320-93J40-000 |
from US $61.46 |
||
|
46
|
46
67320-89J61-000
Cable, remocon 18f (5.5m)
Cable, remocon 18f (5.5m); Opt |
67320-89J61-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J50-000 CABLE ASSY,REMOCON(18F:5.4M)Cable, remocon 18f (5.5m); Opt |
67320-93J50-000 |
from US $65.87 |
||
|
46
|
46
67320-89J71-000
Cable, remocon 20f (6.1m)
Cable, remocon 20f (6.1m); Opt |
67320-89J71-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J60-000 CABLE ASSY,REMOCON(20F:6.1M)Cable, remocon 20f (6.1m); Opt |
67320-93J60-000 |
from US $91.67 |
||
|
46
|
46
67320-89J81-000
Cable, remocon 22f (6.7m)
Cable, remocon 22f (6.7m); Opt |
67320-89J81-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J70-000 CABLE ASSY,REMOCON(22F:6.7M)Cable, remocon 22f (6.7m); Opt |
67320-93J70-000 |
from US $74.70 |
||
|
46
|
46
67320-89J90-000
Cable, remocon 24f (7.3m)
Cable, remocon 24f (7.3m); Opt |
67320-89J90-000 |
— | ||
| replacement | |||||
|
46
|
46
67320-93J80-000 CABLE ASSY,REMOCON(24F:7.3M)Cable, remocon 24f (7.3m); Opt |
67320-93J80-000 |
from US $79.12 |
||
