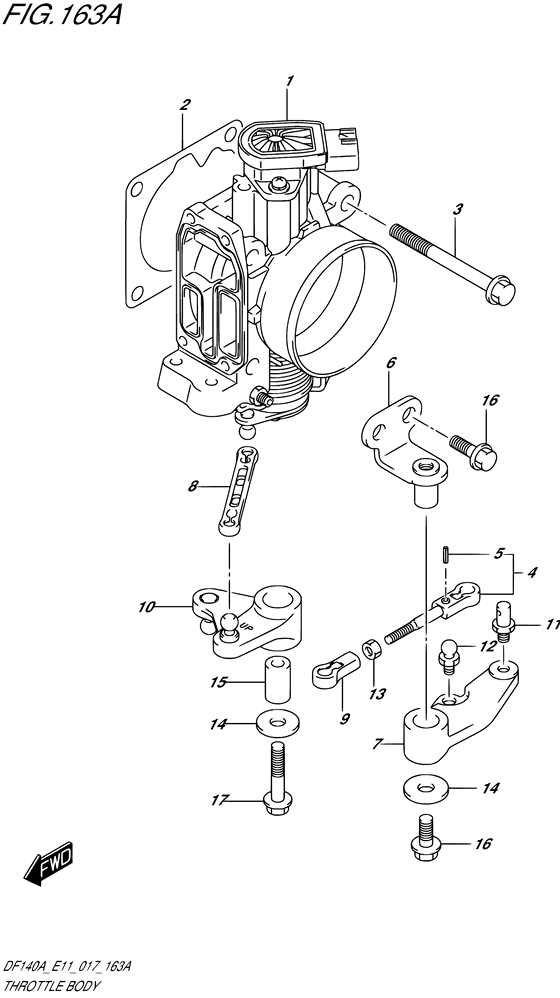

Throttle body Diagram Suzuki DF115A (Z)TL/X
- Year
- 2017
- Model
- DF115A
- Year
- 2017
- Engine
- 11503F-710001~ (11503Z-710001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 115
- Sales region
- General Export (P11/P40)
- Colour
- Pearl Nebular Black; Cool White (YAY; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13300-92J11-000
BODY ASSY,THROTTLE
|
13300-92J11-000 |
— | ||
| replacement | |||||
|
1
|
1
13300-92J12-000 Body Assy,throttle |
13300-92J12-000 |
US $744 |
||
|
2
|
2
13421-90J01-000 GASKET,THROTTLE BODY |
13421-90J01-000 |
US $3.33 |
||
| replacement | |||||
|
2
|
2
13421-90J02-000 Gasket,Throttle Body |
13421-90J02-000 |
US $2.29 |
||
|
3
|
3
01550-08557-000 Bolt |
01550-08557-000 |
from US $1.28 |
||
|
4
|
4
13510-90J00-000 ROD,THROTTLE |
13510-90J00-000 |
US $11.44 |
||
|
5
|
5
09205-02006-000 PIN,SPRING(2X12)Pin, spring |
09205-02006-000 |
from US $0.96 |
||
|
6
|
6
19115-90J00-000 HOLDER,THROTTLE LEVER |
19115-90J00-000 |
US $14.65 |
||
|
7
|
7
19121-90J00-000 LEVER,THROTTLE NO.1 |
19121-90J00-000 |
US $9.79 |
||
|
8
|
8
19130-92J00-000 ROD,THROTTLE NO.2 |
19130-92J00-000 |
US $4.45 |
||
|
9
|
9
19131-95502-000 CONNECTORConnector, oil pump no.2 |
19131-95502-000 |
from US $2.08 |
||
|
10
|
10
19140-92J00-000 LEVER,THROTTLE NO.2 |
19140-92J00-000 |
US $13.32 |
||
|
11
|
11
67473-89J00-000 PIN,CONNECTOR |
67473-89J00-000 |
US $4.80 |
||
|
12
|
12
09119-05010-000 PIVOTPivot, throttle lever |
09119-05010-000 |
from US $3.79 |
||
|
13
|
13
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
14
|
14
09160-06046-000 WASHER(6.5X20X1.5)Washer (6.5x20x1.5) |
09160-06046-000 |
from US $1.44 |
||
|
15
|
15
09180-06186-000 SPACER(6.2X12.6X21)Spacer, throttle lever no.2 |
09180-06186-000 |
from US $9.09 |
||
|
16
|
16
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
17
|
17
01550-06357-000 BoltBolt, throttle lever no.2 |
01550-06357-000 |
from US $0.91 |
||
