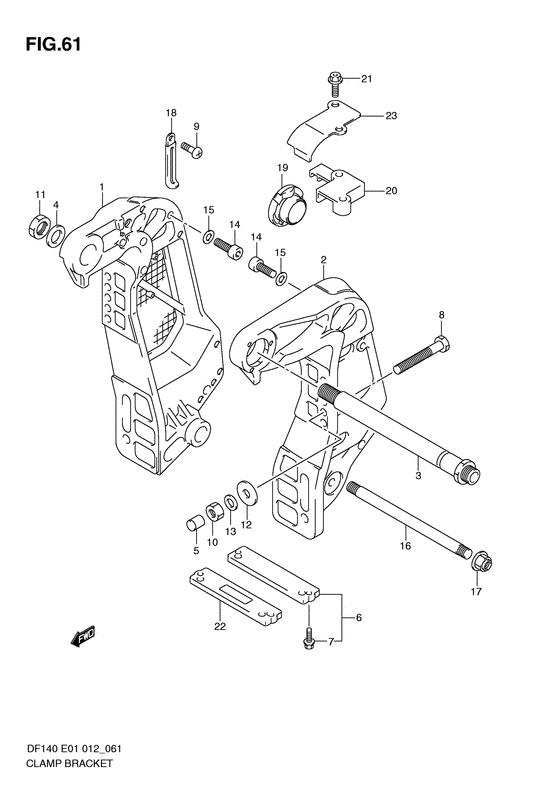

Clamp bracket Diagram Suzuki DF140 (Z)TL/X; W(Z)TL/X
- Year
- 2011
- Model
- DF140
- Year
- 2011
- Engine
- 14002F-110001~ (14002Z-110001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-92J03-0EP BRACKET,CLAMP STBDBracket, clamp stbd (black); |
41111-92J03-0EP |
US $401.28 |
||
|
2
|
2
41121-92J04-0EP BRACKET,CLAMP PORT(BLACK)Bracket, clamp port (black); |
41121-92J04-0EP |
US $401.28 |
||
|
3
|
3
41130-92J01-000
Shaft comp,clamp bracket
|
41130-92J01-000 |
— | ||
| replacement | |||||
|
3
|
3
41130-92J03-000 SHAFT,CLAMP BRACKET |
41130-92J03-000 |
US $104.88 |
||
|
4
|
4
41135-92J00-000 WASHER,CLAMP BRACKET SHAFTWasher, clamp bracket shaft; |
41135-92J00-000 |
US $3.84 |
||
|
5
|
5
41153-94500-000 CAP,TRANSOM BOLTCap, transom bolt; |
41153-94500-000 |
US $2.83 |
||
|
6
|
6
55320-94900-000 ANODE SET,CLAMP BRACKETZinc, protection Zinc, protection; |
55320-94900-000 |
US $44.71 |
||
| replacement | |||||
|
6
|
6
55320-94910-000 ANODE SET,CLAMP BRACKETZinc, protection; |
55320-94910-000 |
from US $22.40 |
||
|
7
|
7
09116-06121-000 BOLT(6X25)Bolt (6x25) Bolt (6x25); |
09116-06121-000 |
from US $1.22 |
||
|
8
|
8
09100-12090-000 BOLT(12X150)Bolt (12x150); |
09100-12090-000 |
from US $21.60 |
||
|
8
|
8
09100-12091-000 BOLT(12X115)Bolt (12x115); Opt |
09100-12091-000 |
US $108.20 |
||
|
9
|
9
09125-06063-000 SCREW(6X10)Screw (6x10); |
09125-06063-000 |
from US $1.28 |
||
|
10
|
10
09159-12014-000 NUT |
09159-12014-000 |
from US $2.39 |
||
|
11
|
11
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
12
|
12
09160-12044-000 WASHER(12.5X35X3.2)Washer (12.5x35x3.2) Washer (12.5x35x3.2); |
09160-12044-000 |
from US $2.13 |
||
|
13
|
13
09160-12110-000 WASHER(12.5X22X3)Washer (12.5x22x3.0); |
09160-12110-000 |
from US $4.19 |
||
|
14
|
14
09106-10065-000 BOLT(10X20)Bolt (10x20); |
09106-10065-000 |
from US $9.49 |
||
|
15
|
15
09160-10082-000 WASHER(10.5X19X2)Washer Washer (10.5x19x2); |
09160-10082-000 |
from US $0.96 |
||
|
16
|
16
45421-87D02-000
PIN,TILT LOCK
|
45421-87D02-000 |
— | ||
| replacement | |||||
|
16
|
16
45421-87D03-000 PIN,TILT LOCK |
45421-87D03-000 |
US $21.53 |
||
|
17
|
17
09159-14020-000 NUT |
09159-14020-000 |
from US $2.13 |
||
|
18
|
18
29404-93J10-000
CLAMP
|
29404-93J10-000 |
— | ||
| replacement | |||||
|
18
|
18
29404-93J11-000 Clamp |
29404-93J11-000 |
US $1.78 |
||
|
19
|
19
48140-93J00-000
Cam assy, tilt limit switch
Cam, tilt limit switch; |
48140-93J00-000 |
— | ||
| replacement | |||||
|
19
|
19
48140-93J01-000 CAM ASSY,TILT LIMIT SWITCHCam, tilt limit switch; |
48140-93J01-000 |
US $8.16 |
||
|
20
|
20
48144-93J00-000 HOLDER,TILT LIMIT SWITCHHolder, tilt limit switch; |
48144-93J00-000 |
US $6.88 |
||
|
21
|
21
09103-06278-000 BOLT(6X25)Bolt (6x20) Bolt (6x25); |
09103-06278-000 |
from US $1.22 |
||
|
22
|
22
55321-94910-000 ANODE(MAGNESIUM)Anode (magnesium); Opt |
55321-94910-000 |
US $49.28 |
||
|
23
|
23
48145-93J00-000 COVER,TILT LIMIT SWITCH |
48145-93J00-000 |
US $5.44 |
||
