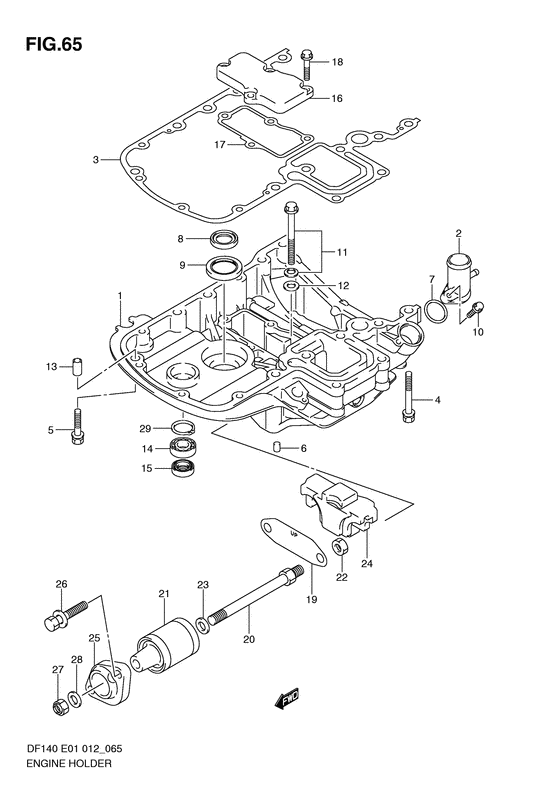

Engine holder Diagram Suzuki DF140 (Z)TL/X; W(Z)TL/X
- Year
- 2011
- Model
- DF140
- Year
- 2011
- Engine
- 14002F-110001~ (14002Z-110001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51110-90842-0EP
HOLDER SET,ENGINE(BLACK)
Holder set, engine (black); |
51110-90842-0EP |
— | ||
| replacements | |||||
|
1
|
1
51110-90843-0EP Holder Set,engine(Black)Holder set, engine (black); |
51110-90843-0EP |
US $1,358.88 |
||
|
1
|
1
54123-90J01-000 Plate,upper MountHolder set, engine (black); |
54123-90J01-000 |
US $14.45 |
||
|
2
|
2
51115-90J00-000 UNION,WATER RETURN |
51115-90J00-000 |
US $8.39 |
||
|
3
|
3
51211-90J21-000
Gasket, engine holder
|
51211-90J21-000 |
— | ||
| replacement | |||||
|
3
|
3
51211-90J22-000 GASKET,ENGINE HOLDER |
51211-90J22-000 |
from US $46.85 |
||
|
4
|
4
09116-08119-000
Bolt (8x70)
Bolt (8x70); |
09116-08119-000 |
— | ||
| replacement | |||||
|
4
|
4
09116-08160-000 BOLT(8X70)Bolt (8x70); |
09116-08160-000 |
from US $4.19 |
||
|
5
|
5
09116-08128-000 BOLT(8X40)Bolt (8x40); |
09116-08128-000 |
US $4.42 |
||
|
6
|
6
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
7
|
7
09280-26006-000 O RING(D:3.1,ID:26.4)O ring (d:3.1,id:26.4); |
09280-26006-000 |
from US $2.08 |
||
|
8
|
8
09282-24003-000 SEAL,OIL(24X36X6)Oil seal (24x36x6); |
09282-24003-000 |
from US $4.95 |
||
|
9
|
9
09283-32044-000 SEAL,OIL(32X47X6)Oil seal (32x47x6); |
09283-32044-000 |
from US $10.34 |
||
|
10
|
10
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
11
|
11
29117-93J10-000 BoltBolt (w/washer) (8x45) Bolt (w/washer) (8x45); |
29117-93J10-000 |
US $3.31 |
||
|
12
|
12
09160-08059-000 WASHER(8.5X18X1.6)Washer (8.5x18x1.6) Washer (8.5x18x1.6); |
09160-08059-000 |
from US $2.67 |
||
|
13
|
13
04211-11129-000 PINPin; |
04211-11129-000 |
from US $0.99 |
||
|
14
|
14
09262-17019-000 BEARING(17X35X8)Bearing, clutch shaft Bearing (17x35x8); |
09262-17019-000 |
from US $9.90 |
||
|
15
|
15
09289-18001-000 SEAL,OIL(18X30X8)Oil seal (18x30x8); |
09289-18001-000 |
from US $16.80 |
||
|
16
|
16
51122-90J00-000 COVER,MOUNT CASE |
51122-90J00-000 |
US $46.37 |
||
|
17
|
17
51123-90J01-000 GASKET,MOUNT CASE COVER |
51123-90J01-000 |
from US $5.12 |
||
|
18
|
18
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
19
|
19
54123-90J00-000
PLATE,UPR MOUNT
|
54123-90J00-000 |
— | ||
| replacement | |||||
|
19
|
19
54123-90J01-000 Plate,upper Mount |
54123-90J01-000 |
US $14.45 |
||
|
20
|
20
54112-90J21-000 BOLT,UPR MOUNT |
54112-90J21-000 |
US $32.94 |
||
|
21
|
21
54130-90J40-000 MOUNT,UPR |
54130-90J40-000 |
from US $34.96 |
||
|
22
|
22
09159-12014-000 NUT |
09159-12014-000 |
from US $2.39 |
||
|
23
|
23
54114-90J01-000
WASHER,MT BOLT(12.5X22X3.0)
Washer (12.5x22x3); |
54114-90J01-000 |
— | ||
| replacement | |||||
|
23
|
23
54114-90J10-000 WASHER,UPPER MOUNT BOLTWasher (12.5x22x3); |
54114-90J10-000 |
US $8.83 |
||
|
24
|
24
54125-90J10-000
MOUNT,UPR THRUST
|
54125-90J10-000 |
— | ||
| replacement | |||||
|
24
|
24
54125-90J11-000 Mount,upr Thrust |
54125-90J11-000 |
US $25.60 |
||
|
25
|
25
54148-90J11-0EP COVER,UPR MOUNTCover, upper mount (black); |
54148-90J11-0EP |
US $73.97 |
||
|
26
|
26
09116-10139-000
Bolt (10x44) (w/washer)
Bolt (10x44); |
09116-10139-000 |
— | ||
| replacement | |||||
|
26
|
26
09116-10176-000 BOLT(10X44)Bolt (10x44); |
09116-10176-000 |
from US $6.82 |
||
|
27
|
27
09159-12014-000 NUT |
09159-12014-000 |
from US $2.39 |
||
|
28
|
28
09160-12110-000 WASHER(12.5X22X3)Washer (12.5x22x3); |
09160-12110-000 |
from US $4.19 |
||
|
29
|
29
08331-41359-000 CIRCLIP |
08331-41359-000 |
from US $1.60 |
||
