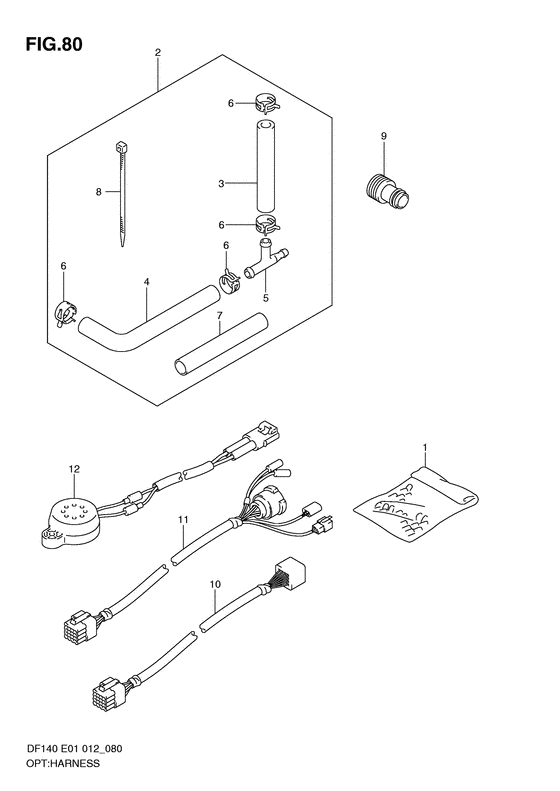

Harness (Optional; df140t e1) Diagram Suzuki DF140 (Z)TL/X; W(Z)TL/X
- Year
- 2011
- Model
- DF140
- Year
- 2011
- Engine
- 14002F-110001~ (14002Z-110001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set Terminal & sleeve set; |
36990-87D00-000 |
US $12.02 |
||
|
2
|
2
34660-90J02-000
KIT,WATER PRESS GAUGE SUB
|
34660-90J02-000 |
— | ||
| replacements | |||||
|
2
|
2
34660-90J03-000
Kit,water Press Gauge Sub
|
34660-90J03-000 |
— | ||
|
2
|
2
34660-90J04-000 Water Press Gauge Sub Kit |
34660-90J04-000 |
US $9.68 |
||
|
3
|
3
09352-50903-600
HOSE(5X9X600)
L:600->160 |
09352-50903-600 |
— | ||
| replacement | |||||
|
3
|
3
09352-50006-600 Hose(5X9X600)L:600->160 |
09352-50006-600 |
from US $4.32 |
||
|
4
|
4
09352-50903-600
HOSE(5X9X600)
L:600->210 |
09352-50903-600 |
— | ||
| replacement | |||||
|
4
|
4
09352-50006-600 Hose(5X9X600)L:600->210 |
09352-50006-600 |
from US $4.32 |
||
|
5
|
5
09367-06006-000 3 WAY |
09367-06006-000 |
from US $6.43 |
||
|
6
|
6
09401-08413-000 CLIP |
09401-08413-000 |
from US $1.60 |
||
|
7
|
7
18498-99EA0-000
PROTECTOR(L:80)
Protector (l:80); |
18498-99EA0-000 |
— | ||
| replacement | |||||
|
7
|
7
18498-99EA1-000 Protector(9.5X11.5X80)Protector (l:80); |
18498-99EA1-000 |
US $1.55 |
||
|
8
|
8
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp; |
09407-25402-000 |
from US $2.24 |
||
|
9
|
9
17917-87L00-000 CONNECTOR,FLUSH WATER |
17917-87L00-000 |
US $7.58 |
||
|
10
|
10
36620-93J10-000
WIRE ASSY,REMOCON EXT(L:2000)
L:2000 |
36620-93J10-000 |
— | ||
| replacement | |||||
|
10
|
10
36620-93J11-000 Wire Assy,remocon Ext(L:2000)L:2000 |
36620-93J11-000 |
US $94.94 |
||
|
10
|
10
36620-93J40-000
WIRE ASSY,REMOCON EXT(L:3000)
L:3000 |
36620-93J40-000 |
— | ||
| replacement | |||||
|
10
|
10
36620-93J41-000
Wire Assy,remote Control Ext
L:3000 |
36620-93J41-000 |
— | ||
|
11
|
11
36620-93J30-000
WIRE ASSY,REMOCON(L:2000)
L:2000 |
36620-93J30-000 |
— | ||
| replacement | |||||
|
11
|
11
36620-93J31-000 Wire Assy,remocon(L:2000)L:2000 |
36620-93J31-000 |
US $148.80 |
||
|
12
|
12
38500-93J00-000
BUZZER ASSY,WARNING
Buzzer assy, warning; |
38500-93J00-000 |
— | ||
| replacement | |||||
|
12
|
12
38500-93J90-000 BUZZER,WARNINGBuzzer assy, warning; |
38500-93J90-000 |
from US $28.80 |
||
