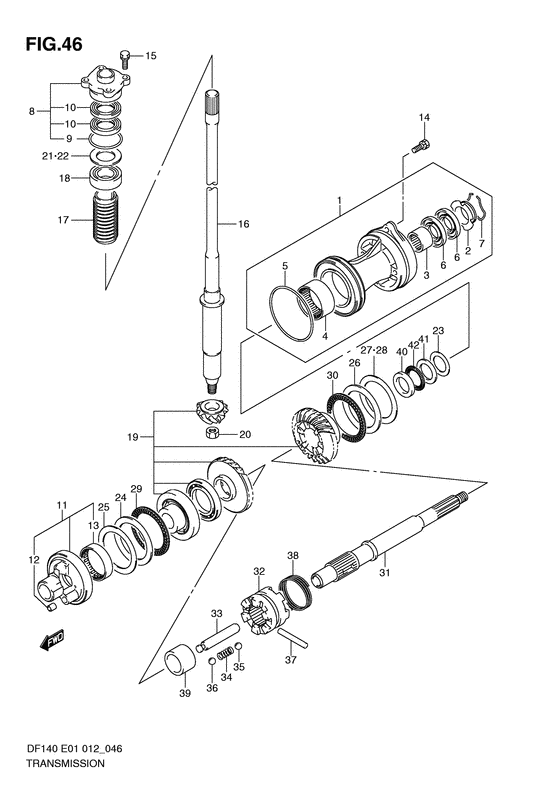

Transmission (Df140z e1) Diagram Suzuki DF140 (Z)TL/X; W(Z)TL/X
- Year
- 2011
- Model
- DF140
- Year
- 2011
- Engine
- 14002F-110001~ (14002Z-110001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56120-92J12-0EP HOUSING,PROPELLER SFT BRGHousing, prop sft brg (black); |
56120-92J12-0EP |
US $291.20 |
||
|
2
|
2
56123-92J00-000 WASHER,OIL SEAL PROTECTOR |
56123-92J00-000 |
US $2.08 |
||
|
3
|
3
09263-30051-000 BEARING(30X37X26)Bearing (30x37x26); |
09263-30051-000 |
from US $19.20 |
||
|
4
|
4
09263-50001-000 BEARING(50X62X25)Bearing Bearing (50x62x25); |
09263-50001-000 |
from US $40 |
||
|
5
|
5
09280-97001-000 O RING(D:3.5,ID:95)O ring (d:3.5,id:95.0) O ring (d:3.5 id:95); |
09280-97001-000 |
from US $2.27 |
||
|
6
|
6
09282-30007-000 SEAL,OIL(30X50X6)Oil seal (30x50x6); |
09282-30007-000 |
from US $7.20 |
||
|
7
|
7
09387-52001-000 SET,RING |
09387-52001-000 |
US $1.62 |
||
|
8
|
8
56130-90J00-000 HOUSING,DRIVE SHAFT OIL SEALHousing, drive shaft brg; |
56130-90J00-000 |
from US $58.88 |
||
|
9
|
9
09280-46004-000 O RING(D:3.5,ID:45.7)O ring (d:3.5 id:45.7); |
09280-46004-000 |
from US $1.47 |
||
|
10
|
10
09282-24004-000 SEAL,OIL(24X40X7)Oil seal Oil seal (24x40x7); |
09282-24004-000 |
from US $5.62 |
||
|
11
|
11
56140-92J30-000 HOUSING,REV GEAR BEARING |
56140-92J30-000 |
US $181.06 |
||
|
12
|
12
09206-09012-000 PIN(7.4X9X10)Pin, knock |
09206-09012-000 |
from US $1.82 |
||
|
13
|
13
09263-45004-000 BEARING(45X52X16)Bearing (45x52x16); |
09263-45004-000 |
from US $20.98 |
||
|
14
|
14
09117-08047-000 BOLT(8X30)Bolt (8x30); |
09117-08047-000 |
from US $1.76 |
||
|
15
|
15
09117-08057-000
Bolt
Bolt (8x25); |
09117-08057-000 |
— | ||
| replacement | |||||
|
15
|
15
09117-08110-000 BOLT(8X25)Bolt (8x25); |
09117-08110-000 |
from US $1.92 |
||
|
16
|
16
57110-92J41-000
Shaft,drive (l)
Shaft, drive (l); W/transom(l) |
57110-92J41-000 |
— | ||
| replacement | |||||
|
16
|
16
57110-92J60-000 SHAFT,DRIVE(L)Shaft, drive (l); W/transom(l) |
57110-92J60-000 |
US $498.56 |
||
|
16
|
16
57110-92J51-000
SHAFT,DRIVE (X)
Shaft, drive (x); W/transom(x) |
57110-92J51-000 |
— | ||
| replacement | |||||
|
16
|
16
57110-92J70-000 SHAFT,DRIVE(X)Shaft, drive (x); W/transom(x) |
57110-92J70-000 |
from US $495 |
||
|
17
|
17
57133-90J01-000
Collar, drive shaft
|
57133-90J01-000 |
— | ||
| replacement | |||||
|
17
|
17
57133-90J02-000 COLLAR,DRIVE SHAFT |
57133-90J02-000 |
US $11.68 |
||
|
18
|
18
09265-25040-000
Bearing
Bearing (25x52x29.25); |
09265-25040-000 |
— | ||
| replacement | |||||
|
18
|
18
09265-25046-000 BEARING(25X52X19.25)Bearing (25x52x29.25); |
09265-25046-000 |
from US $44 |
||
|
19
|
19
57300-92850-000 PINION & GEAR SET |
57300-92850-000 |
US $1,008 |
||
|
20
|
20
09140-14024-000 NUT |
09140-14024-000 |
from US $2.08 |
||
|
21
|
21
57500-87873-000 SHIM SET,DRIVE SHAFT |
57500-87873-000 |
from US $37.60 |
||
|
22
|
22
09181-40186-000 SHIM(41X52X0.5)Shim (t:0.50) Shim (41x52x0.50); |
09181-40186-000 |
from US $2.40 |
||
|
22
|
22
09181-41002-000 SHIM(41X52X0.55)Shim (41x52x0.55); |
09181-41002-000 |
US $3.13 |
||
|
22
|
22
09181-41003-000 SHIM(41X52X0.6)Shim (t:0.60) Shim (41x52x0.60); |
09181-41003-000 |
from US $2.36 |
||
|
22
|
22
09181-41004-000 SHIM(41X52X0.65)Shim (t:0.65) Shim (41x52x0.65); |
09181-41004-000 |
from US $2.30 |
||
|
22
|
22
09181-41005-000 SHIM(41X52X0.7)Shim (t:0.70) Shim (41x52x0.70); |
09181-41005-000 |
from US $2.30 |
||
|
22
|
22
09181-41006-000 SHIM(41X52X0.75)Shim (t:0.75) Shim (41x52x0.75); |
09181-41006-000 |
from US $2.30 |
||
|
22
|
22
09181-40190-000 SHIM(40X52X0.8)Shim (t:0.80) Shim (41x52x0.80); |
09181-40190-000 |
from US $1.49 |
||
|
22
|
22
09181-41008-000 SHIM(41X52X0.85)Shim (t:0.85) Shim (41x52x0.85); |
09181-41008-000 |
from US $2.30 |
||
|
22
|
22
09181-41009-000 SHIM(41X52X0.9)Shim (t:0.90) Shim (41x52x0.90); |
09181-41009-000 |
from US $9.93 |
||
|
22
|
22
09181-41010-000 SHIM(41X52X0.95)Shim (t:0.95) Shim (41x52x0.95); |
09181-41010-000 |
from US $2.30 |
||
|
22
|
22
09181-40195-000 SHIM(40X52X1)Shim (t:1.00) Shim (41x52x1.00); |
09181-40195-000 |
from US $2.58 |
||
|
22
|
22
09181-41012-000 SHIM(41X52X1.05)Shim (t:1.05) Shim (41x52x1.05); |
09181-41012-000 |
from US $2.72 |
||
|
22
|
22
09181-41013-000 SHIM(41X52X1.1)Shim (t:1.10) Shim (41x52x1.10); |
09181-41013-000 |
from US $2.30 |
||
|
22
|
22
09181-41014-000 SHIM(41X52X1.15)Shim (t:1.15) Shim (41x52x1.15); |
09181-41014-000 |
from US $2.30 |
||
|
23
|
23
09160-35015-000 WASHER(35X46X0.6)Washer (35x46x0.6); Prop saft rev |
09160-35015-000 |
from US $2.88 |
||
|
23
|
23
09160-35014-000 WASHER(35X46X0.7)Washer (35x46x0.7); Prop saft rev |
09160-35014-000 |
from US $2.88 |
||
|
23
|
23
09160-35013-000 WASHER(35X46X0.8)Washer (35x46x0.8); Prop saft rev |
09160-35013-000 |
from US $2.88 |
||
|
23
|
23
09160-35006-000 WASHER(35X46X0.9)Washer (35x46x0.9); Prop saft rev |
09160-35006-000 |
from US $1.73 |
||
|
23
|
23
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) Washer (35x46x0.95); Prop saft rev |
09160-35008-000 |
from US $4.19 |
||
|
23
|
23
09160-35002-000 WASHER(35X46X1)Washer (35x46x1.0); Prop saft rev |
09160-35002-000 |
from US $1.53 |
||
|
23
|
23
09160-35009-000 WASHER(35X46X1.05)Washer (35x46x1.05); Prop saft rev |
09160-35009-000 |
from US $4.19 |
||
|
23
|
23
09160-35003-000 WASHER(35X46X1.1)Washer (35x46x1.1); Prop saft rev |
09160-35003-000 |
from US $2.07 |
||
|
23
|
23
09160-35010-000 WASHER(35X46X1.15)Washer (35x46x1.15); Prop saft rev |
09160-35010-000 |
from US $4.19 |
||
|
24
|
24
09160-60011-000 WASHER(60X85X3)Washer (60x85x3.0); Rev gear |
09160-60011-000 |
from US $36.62 |
||
|
25
|
25
09160-60008-000 WASHER(60X85X0.8)Washer (60x85x0.8) Washer (60x85x0.8); |
09160-60008-000 |
US $86.80 |
||
|
25
|
25
09160-60009-000 WASHER(60X85X0.9)Washer (60x85x0.9) Washer (60x85x0.9); |
09160-60009-000 |
from US $16.18 |
||
|
25
|
25
09160-60003-000 WASHER(60X85X1)Washer (60x85x1.0) Washer (60x85x1.0); |
09160-60003-000 |
from US $19.02 |
||
|
25
|
25
09160-60004-000 WASHER(60X85X1.1)Washer (60x85x1.1) Washer (60x85x1.1); |
09160-60004-000 |
from US $19.02 |
||
|
25
|
25
09160-60005-000 WASHER(60X85X1.2)Washer (60x85x1.2) Washer (60x85x1.2); |
09160-60005-000 |
from US $11.85 |
||
|
25
|
25
09160-60006-000 WASHER(60X85X1.3)Washer (60x85x1.3) Washer (60x85x1.3); |
09160-60006-000 |
from US $23.67 |
||
|
25
|
25
09160-60007-000 WASHER(60X85X1.4)Washer (60x85x1.4) Washer (60x85x1.4); |
09160-60007-000 |
from US $19.02 |
||
|
26
|
26
09160-70005-000 WASHER(70X95X2)Washer (70x95x2.0); Fwd gear |
09160-70005-000 |
from US $24.47 |
||
|
27
|
27
57500-92813-000 SHIM SET,FORWARD GEARFwd gear |
57500-92813-000 |
from US $59.20 |
||
|
28
|
28
09181-70006-000 SHIM(70X95X0.6)Shim (70x95x0.6) Shim (70x95x0.6); Fwd gear |
09181-70006-000 |
US $44.50 |
||
|
28
|
28
09181-70009-000 SHIM(70X95X0.65)Shim (70x95x0.65) Shim (70x95x0.65); Fwd gear |
09181-70009-000 |
US $53 |
||
|
28
|
28
09181-70001-000 SHIM(70X95X0.7)Shim (70x95x0.7) Shim (70x95x0.7); Fwd gear |
09181-70001-000 |
US $39.70 |
||
|
28
|
28
09181-70010-000 SHIM(70X95X0.75)Shim (70x95x0.75) Shim (70x95x0.75); Fwd gear |
09181-70010-000 |
US $53 |
||
|
28
|
28
09181-70002-000 SHIM(70X95X0.8)Shim (70x95x0.8) Shim (70x95x0.8); Fwd gear |
09181-70002-000 |
US $39.70 |
||
|
28
|
28
09181-70011-000 SHIM(70X95X0.85)Shim (70x95x0.85) Shim (70x95x0.85); Fwd gear |
09181-70011-000 |
US $53 |
||
|
28
|
28
09181-70003-000 SHIM(70X95X0.9)Shim (70x95x0.9) Shim (70x95x0.9); Fwd gear |
09181-70003-000 |
US $39.70 |
||
|
28
|
28
09181-70012-000 SHIM(70X95X0.95)Shim (70x95x0.95) Shim (70x95x0.95); Fwd gear |
09181-70012-000 |
US $84.60 |
||
|
28
|
28
09181-70004-000 SHIM(70X95X1)Shim (70x95x1.0) Shim (70x95x1.0); Fwd gear |
09181-70004-000 |
US $39.70 |
||
|
29
|
29
09269-60001-000 BEARING(60X85X3)Bearing (60x85x3.0) Bearing (60x85x3.0); Rev |
09269-60001-000 |
from US $20 |
||
|
30
|
30
09269-70001-000 BEARING(70X95X4)Bearing Bearing (70x95x4.0); Fwd |
09269-70001-000 |
from US $37.60 |
||
|
31
|
31
57610-92J31-000 SHAFT,PROPELLER |
57610-92J31-000 |
US $366.16 |
||
|
32
|
32
57621-92J10-000
Shifter, clutch dog
|
57621-92J10-000 |
— | ||
| replacement | |||||
|
32
|
32
57621-92J20-000 SHIFTER,CLUTCH DOG |
57621-92J20-000 |
US $103.20 |
||
|
33
|
33
57631-92J00-000
PIN,CONNECTOR
|
57631-92J00-000 |
— | ||
| replacement | |||||
|
33
|
33
57631-92J01-000 Pin,connector |
57631-92J01-000 |
US $16.41 |
||
|
34
|
34
09440-09040-000 SPRING |
09440-09040-000 |
from US $2.84 |
||
|
35
|
35
06111-07004-000 BALLNo.1 |
06111-07004-000 |
from US $0.76 |
||
|
36
|
36
06111-11004-000 BALLNo.2 |
06111-11004-000 |
from US $1.28 |
||
|
37
|
37
09202-07002-000 PIN(7X48) |
09202-07002-000 |
from US $4.93 |
||
|
38
|
38
09440-49004-000 SPRING |
09440-49004-000 |
from US $1.76 |
||
|
39
|
39
57616-92J00-000 SPACER,CLUTCH DOG FORWARD |
57616-92J00-000 |
US $41.95 |
||
|
40
|
40
09160-30055-000 WASHER(30X47X6)Washer (30x47x6.0) Washer (30x47x6.0); Prop saft rev |
09160-30055-000 |
from US $72.21 |
||
|
41
|
41
09160-30056-000 WASHER(32X47X3)Washer (32x47x3.0) Washer (32x47x3.0); Prop saft rev |
09160-30056-000 |
from US $15.97 |
||
|
42
|
42
09269-30014-000 BEARING(30X47X2)Bearing (30x47x2.0) Bearing (30x47x2.0); Prop saft rev |
09269-30014-000 |
from US $6.72 |
||
