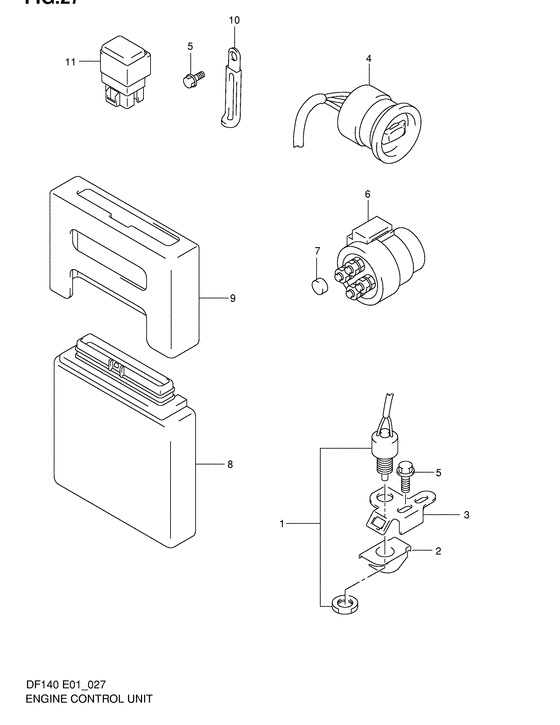

Ptt switch & engine control unit Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37721-99E00-000
Switch assy,neu
|
37721-99E00-000 |
— | ||
| replacements | |||||
|
1
|
1
37721-99E01-000
SWITCH ASSY,NEUTRAL
|
37721-99E01-000 |
— | ||
|
1
|
1
37721-99E02-000 Switch Assy,neutral |
37721-99E02-000 |
US $58.40 |
||
|
2
|
2
37725-95600-000 ACTUATOR,NEUTRAL SWITCHActuator, neutral switch Actuator, neutral sw; |
37725-95600-000 |
US $6.88 |
||
|
3
|
3
37726-90J00-000
BRACKET,NEUTRAL SWITCH
|
37726-90J00-000 |
— | ||
|
4
|
4
37850-99E00-000
Switch assy,til
Switch, ptt; |
37850-99E00-000 |
— | ||
| replacement | |||||
|
4
|
4
37850-99E05-000 SWITCH ASSY,PTTSwitch, ptt; |
37850-99E05-000 |
from US $80.80 |
||
|
5
|
5
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
6
|
6
38410-94551-000
Relay assy,trim
Relay, ptt; |
38410-94551-000 |
— | ||
| replacement | |||||
|
6
|
6
38410-94552-000 RELAY ASSY,TRIMRelay, ptt; |
38410-94552-000 |
US $131.01 |
||
|
7
|
7
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
7
|
7
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
from US $5.61 |
||
|
8
|
8
33920-92J00-000
Unit, engine control
|
33920-92J00-000 |
— | ||
| replacement | |||||
|
8
|
8
33920-92J54-000 UNIT,ENGINE CONTROL |
33920-92J54-000 |
US $1,833.52 |
||
|
9
|
9
33925-87J00-000 CUSHION,ENGINE CONTROL UNITCushion, engine control unit Cushion, engine control unit; |
33925-87J00-000 |
US $22.82 |
||
|
10
|
10
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
10
|
10
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
11
|
11
38910-92E00-000 RELAY,ECM MAINRelay, engine control unit; |
38910-92E00-000 |
US $53.20 |
||
