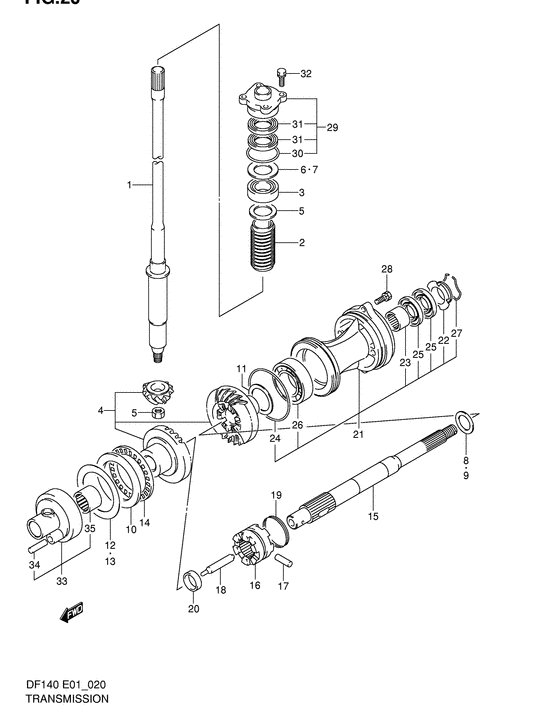

Transmission Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-90J00-000
Shaft assy, drive
Type:l |
57110-90J00-000 |
— | ||
| replacement | |||||
|
1
|
1
57110-90J20-000 SHAFT,DRIVE(L)Shaft assy, drive (l) Type:l |
57110-90J20-000 |
US $813.12 |
||
|
1
|
1
57110-90J10-000
Shaft, drive
Type:ul |
57110-90J10-000 |
— | ||
| replacement | |||||
|
1
|
1
57110-90J30-000 SHAFT,DRIVE(X)Shaft assy, drive (ul) Type:ul |
57110-90J30-000 |
US $841.28 |
||
|
2
|
2
57133-90J01-000
Collar, drive shaft
|
57133-90J01-000 |
— | ||
| replacement | |||||
|
2
|
2
57133-90J02-000 COLLAR,DRIVE SHAFT |
57133-90J02-000 |
US $11.68 |
||
|
3
|
3
09265-25040-000
Bearing
|
09265-25040-000 |
— | ||
| replacement | |||||
|
3
|
3
09265-25046-000 BEARING(25X52X19.25) |
09265-25046-000 |
from US $44 |
||
|
4
|
4
57300-92800-000
Pinion/gear set
|
57300-92800-000 |
— | ||
| replacement | |||||
|
4
|
4
57300-92801-000 PINION & GEAR SET |
57300-92801-000 |
US $704 |
||
|
5
|
5
09140-14021-000 NUT |
09140-14021-000 |
from US $2.24 |
||
|
6
|
6
57500-87872-000
Shim set,drive
|
57500-87872-000 |
— | ||
| replacement | |||||
|
6
|
6
57500-87873-000 SHIM SET,DRIVE SHAFT |
57500-87873-000 |
from US $37.60 |
||
|
7
|
7
09181-41003-000 SHIM(41X52X0.6)Shim (t:0.60) Shim (t:0.60); |
09181-41003-000 |
from US $2.36 |
||
|
7
|
7
09181-41004-000 SHIM(41X52X0.65)Shim (t:0.65) Shim (t:0.65); |
09181-41004-000 |
from US $2.30 |
||
|
7
|
7
09181-41005-000 SHIM(41X52X0.7)Shim (t:0.70) Shim (t:0.70); |
09181-41005-000 |
from US $2.30 |
||
|
7
|
7
09181-41006-000 SHIM(41X52X0.75)Shim (t:0.75) Shim (t:0.75); |
09181-41006-000 |
from US $2.30 |
||
|
7
|
7
09181-40190-000 SHIM(40X52X0.8)Shim (t:0.80) Shim (t:0.80); |
09181-40190-000 |
from US $1.49 |
||
|
7
|
7
09181-41008-000 SHIM(41X52X0.85)Shim (t:0.85) Shim (t:0.85); |
09181-41008-000 |
from US $2.30 |
||
|
7
|
7
09181-41009-000 SHIM(41X52X0.9)Shim (t:0.90) Shim (t:0.90); |
09181-41009-000 |
from US $9.93 |
||
|
7
|
7
09181-41010-000 SHIM(41X52X0.95)Shim (t:0.95) Shim (t:0.95); |
09181-41010-000 |
from US $2.30 |
||
|
7
|
7
09181-40195-000 SHIM(40X52X1)Shim (t:1.00) Shim (t:1.00); |
09181-40195-000 |
from US $2.58 |
||
|
7
|
7
09181-41012-000 SHIM(41X52X1.05)Shim (t:1.05) Shim (t:1.05); |
09181-41012-000 |
from US $2.72 |
||
|
7
|
7
09181-41013-000 SHIM(41X52X1.1)Shim (t:1.10) Shim (t:1.10); |
09181-41013-000 |
from US $2.30 |
||
|
7
|
7
09181-41014-000 SHIM(41X52X1.15)Shim (t:1.15) Shim (t:1.15); |
09181-41014-000 |
from US $2.30 |
||
|
8
|
8
57500-87861-000 SHIM SET,REVERSE PROP SHAFTWasher set, rev prop shaft Shim set, prop shaft rev; |
57500-87861-000 |
from US $30.40 |
||
|
9
|
9
08211-30382-000 WASHERWasher (30x38x1.5); |
08211-30382-000 |
from US $2.08 |
||
|
9
|
9
09160-30036-000 WASHER(30X38X1.7)Washer (30x38x1.7); |
09160-30036-000 |
from US $4.55 |
||
|
9
|
9
09160-30037-000 WASHER(30X38X1.9)Washer (30x38x1.9) Washer (30x38x1.9); |
09160-30037-000 |
from US $4.55 |
||
|
9
|
9
09160-30038-000 WASHER(30X38X2.1)Washer (30x38x2.1); |
09160-30038-000 |
from US $4.55 |
||
|
9
|
9
09160-30039-000 WASHER(30X38X2.3)Washer (30x38x2.3); |
09160-30039-000 |
from US $4.55 |
||
|
9
|
9
09160-30041-000 WASHER(30X38X2.4)Washer (t:2.4) Washer (30x38x2.4); |
09160-30041-000 |
from US $6.82 |
||
|
9
|
9
09160-30042-000 WASHER(30X38X2.6)Washer (t:2.6) Washer (30x38x2.6); |
09160-30042-000 |
from US $4.55 |
||
|
9
|
9
09160-30043-000 WASHER(30X38X2.7)Washer (t:2.7) Washer (30x38x2.7); |
09160-30043-000 |
from US $5.69 |
||
|
9
|
9
09160-30044-000 WASHER(30X38X2.8)Washer (t:2.8) Washer (30x38x2.8); |
09160-30044-000 |
from US $4.55 |
||
|
10
|
10
09160-70002-000 WASHER(70X95X5.25)Washer (70x95x5.25) Washer (70x95x5.25); Fwd gear |
09160-70002-000 |
from US $39.20 |
||
|
11
|
11
09181-45003-000 SHIM(45X56X1)Shim (t:1.0) Shim (45x56x1.0); Rev gear |
09181-45003-000 |
US $2.84 |
||
|
11
|
11
09181-45004-000 SHIM(45X56X1.1)Shim (t:1.1) Shim (45x56x1.1); Rev gear |
09181-45004-000 |
from US $2.84 |
||
|
11
|
11
09181-45005-000 SHIM(45X56X1.2)Shim (t:1.2) Shim (45x56x1.2); Rev gear |
09181-45005-000 |
US $2.84 |
||
|
11
|
11
09181-45006-000 SHIM(45X56X1.3)Shim (t:1.3) Shim (45x56x1.3); Rev gear |
09181-45006-000 |
US $2.84 |
||
|
11
|
11
09181-45007-000 SHIM(45X56X1.4)Shim (t:1.4) Shim (45x56x1.4); Rev gear |
09181-45007-000 |
US $2.84 |
||
|
11
|
11
09181-45008-000 SHIM(45X56X1.5)Shim (t:1.5) Shim (45x56x1.5); Rev gear |
09181-45008-000 |
US $2.84 |
||
|
11
|
11
09181-45009-000 SHIM(45X56X1.6)Shim (t:1.6) Shim (45x56x1.6); Rev gear |
09181-45009-000 |
US $3.36 |
||
|
12
|
12
57500-92813-000 SHIM SET,FORWARD GEARFwd gear |
57500-92813-000 |
US $59.20 |
||
|
13
|
13
09181-70001-000 SHIM(70X95X0.7)Shim (70x95x0.7) Shim (70x95x0.7); Fwd gear |
09181-70001-000 |
US $39.70 |
||
|
13
|
13
09181-70002-000 SHIM(70X95X0.8)Shim (70x95x0.8) Shim (70x95x0.8); Fwd gear |
09181-70002-000 |
US $39.70 |
||
|
13
|
13
09181-70003-000 SHIM(70X95X0.9)Shim (70x95x0.9) Shim (70x95x0.9); Fwd gear |
09181-70003-000 |
US $39.70 |
||
|
13
|
13
09181-70004-000 SHIM(70X95X1)Shim (70x95x1.0) Shim (70x95x1.0); Fwd gear |
09181-70004-000 |
US $39.70 |
||
|
13
|
13
09181-70006-000 SHIM(70X95X0.6)Shim (70x95x0.6) Shim (70x95x0.6); Fwd gear |
09181-70006-000 |
US $44.50 |
||
|
13
|
13
09181-70009-000 SHIM(70X95X0.65)Shim (70x95x0.65) Shim (70x95x0.65); Fwd gear |
09181-70009-000 |
US $53 |
||
|
13
|
13
09181-70010-000 SHIM(70X95X0.75)Shim (70x95x0.75) Shim (70x95x0.75); Fwd gear |
09181-70010-000 |
US $53 |
||
|
13
|
13
09181-70011-000 SHIM(70X95X0.85)Shim (70x95x0.85) Shim (70x95x0.85); Fwd gear |
09181-70011-000 |
US $53 |
||
|
13
|
13
09181-70012-000 SHIM(70X95X0.95)Shim (70x95x0.95) Shim (70x95x0.95); Fwd gear |
09181-70012-000 |
US $84.60 |
||
|
14
|
14
09269-70001-000 BEARING(70X95X4)Bearing |
09269-70001-000 |
from US $37.60 |
||
|
15
|
15
57610-92J00-000 SHAFT,PROPELLER |
57610-92J00-000 |
from US $527.50 |
||
|
16
|
16
57621-92J00-000 SHIFTER,CLUTCH DOG |
57621-92J00-000 |
US $138 |
||
|
17
|
17
09202-07002-000 PIN(7X48) |
09202-07002-000 |
from US $4.93 |
||
|
18
|
18
57631-87E00-000 PIN,CONNECTORRod, push Rod, push; |
57631-87E00-000 |
US $19.87 |
||
|
19
|
19
09440-50002-000 SPRING |
09440-50002-000 |
US $23.20 |
||
|
20
|
20
57616-90J00-000 SPACER,CLUTCH DOG FORWARDSpacer, clutch dog fwd; |
57616-90J00-000 |
US $10.40 |
||
|
21
|
21
56120-92J00-0EP
Housing, prop sft brg (black)
Housing, prop sft brg (black); |
56120-92J00-0EP |
— | ||
| replacement | |||||
|
21
|
21
56120-92J01-0EP HOUSING,PROPELLER SFT BRGHousing, prop sft brg (black); |
56120-92J01-0EP |
US $457.52 |
||
|
22
|
22
56123-92J00-000 WASHER,OIL SEAL PROTECTOR |
56123-92J00-000 |
US $2.08 |
||
|
23
|
23
09263-30051-000 BEARING(30X37X26) |
09263-30051-000 |
from US $19.20 |
||
|
24
|
24
09280-97001-000 O RING(D:3.5,ID:95)O ring (d:3.5,id:95.0) O ring (d:3.5,id:95); |
09280-97001-000 |
from US $2.27 |
||
|
25
|
25
09282-30007-000 SEAL,OIL(30X50X6) |
09282-30007-000 |
from US $7.20 |
||
|
26
|
26
08113-62090-000 BEARINGBearing |
08113-62090-000 |
from US $25.84 |
||
|
27
|
27
09387-52001-000 SET,RINGRing; |
09387-52001-000 |
US $1.62 |
||
|
28
|
28
09117-08047-000 BOLT(8X30)Bolt (8x30); |
09117-08047-000 |
from US $1.76 |
||
|
29
|
29
56130-90J00-000 HOUSING,DRIVE SHAFT OIL SEAL |
56130-90J00-000 |
from US $58.88 |
||
|
30
|
30
09280-46004-000 O RING(D:3.5,ID:45.7)O ring (d:3.5,id:45.7); |
09280-46004-000 |
from US $1.47 |
||
|
31
|
31
09282-24004-000 SEAL,OIL(24X40X7)Oil seal |
09282-24004-000 |
from US $5.62 |
||
|
32
|
32
09117-08057-000
Bolt
Bolt (8x25); |
09117-08057-000 |
— | ||
| replacement | |||||
|
32
|
32
09117-08110-000 BOLT(8X25)Bolt (8x25); |
09117-08110-000 |
from US $1.92 |
||
|
33
|
33
56140-92J00-000 HOUSING,FWD GEAR BEARINGHousing, forward gear bearing Housing, fwd gear brg; |
56140-92J00-000 |
US $115.18 |
||
|
34
|
34
09206-09012-000 PIN(7.4X9X10)Pin, knock Pin, knock; |
09206-09012-000 |
from US $1.82 |
||
|
35
|
35
09263-50001-000 BEARING(50X62X25)Bearing |
09263-50001-000 |
from US $40 |
||
