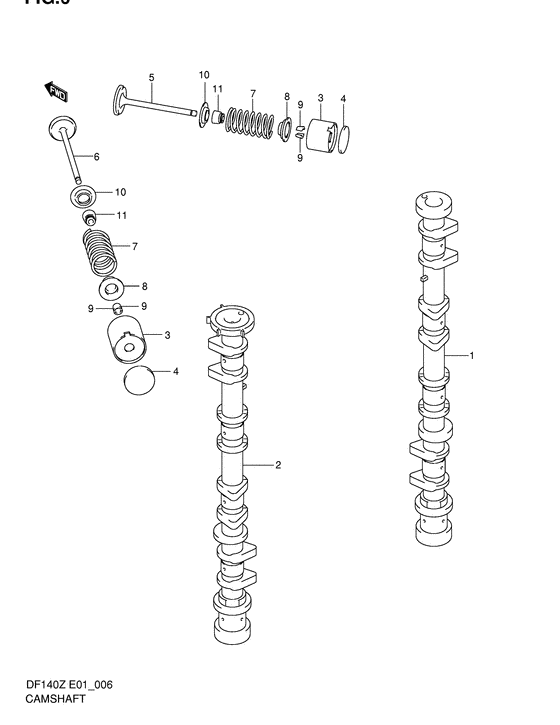

Camshaft Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-92J00-000 CAMSHAFT,INTAKE |
12711-92J00-000 |
US $368 |
||
|
2
|
2
12720-92J00-000 CAMSHAFT ASSY,EXHAUST |
12720-92J00-000 |
US $393.76 |
||
|
3
|
3
12891-69G00-000 TAPPET,T:5.50 |
12891-69G00-000 |
from US $29.05 |
||
|
4
|
4
12892-69G00-218
Shim, tappet
|
12892-69G00-218 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-218 SHIM,TAPPET T:2.175 |
12892-69G10-218 |
from US $9.27 |
||
|
4
|
4
12892-69G00-220
Shim, tappet
|
12892-69G00-220 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-220 SHIM,TAPPET T:2.200 |
12892-69G10-220 |
from US $5.63 |
||
|
4
|
4
12892-69G00-223
Shim, tappet
|
12892-69G00-223 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-223 SHIM,TAPPET T:2.225 |
12892-69G10-223 |
from US $7.36 |
||
|
4
|
4
12892-69G00-225
Shim, tappet
|
12892-69G00-225 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-225 SHIM,TAPPET T:2.250 |
12892-69G10-225 |
from US $9.58 |
||
|
4
|
4
12892-69G00-228
Shim, tappet
|
12892-69G00-228 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-228 SHIM,TAPPET T:2.275 |
12892-69G10-228 |
from US $7.36 |
||
|
4
|
4
12892-69G00-230
Shim, tappet
|
12892-69G00-230 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-230 SHIM,TAPPET T:2.300 |
12892-69G10-230 |
from US $9.18 |
||
|
4
|
4
12892-69G00-233
Shim, tappet
|
12892-69G00-233 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-233 SHIM,TAPPET T:2.325 |
12892-69G10-233 |
from US $8.73 |
||
|
4
|
4
12892-69G00-235
Shim, tappet
|
12892-69G00-235 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-235 SHIM,TAPPET T:2.350 |
12892-69G10-235 |
from US $9.20 |
||
|
4
|
4
12892-69G00-238
Shim, tappet
|
12892-69G00-238 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-238 SHIM,TAPPET T:2.375 |
12892-69G10-238 |
from US $9.20 |
||
|
4
|
4
12892-69G00-240
Shim, tappet
|
12892-69G00-240 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-240 SHIM,TAPPET T:2.400 |
12892-69G10-240 |
from US $8.60 |
||
|
4
|
4
12892-69G00-243
Shim, tappet
|
12892-69G00-243 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-243 SHIM,TAPPET T:2.425 |
12892-69G10-243 |
from US $6.01 |
||
|
4
|
4
12892-69G00-245
Shim, tappet
|
12892-69G00-245 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-245 SHIM,TAPPET T:2.450 |
12892-69G10-245 |
from US $9.20 |
||
|
4
|
4
12892-69G00-248
Shim, tappet
|
12892-69G00-248 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-248 SHIM,TAPPET T:2.475 |
12892-69G10-248 |
from US $9.25 |
||
|
4
|
4
12892-69G00-250
Shim, tappet
|
12892-69G00-250 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-250 SHIM,TAPPET T:2.500 |
12892-69G10-250 |
from US $8.87 |
||
|
4
|
4
12892-69G00-253
Shim, tappet
|
12892-69G00-253 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-253 SHIM,TAPPET T:2.525 |
12892-69G10-253 |
from US $9.50 |
||
|
4
|
4
12892-69G00-255
Shim, tappet
|
12892-69G00-255 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-255 SHIM,TAPPET T:2.550 |
12892-69G10-255 |
from US $8.98 |
||
|
4
|
4
12892-69G00-258
Shim, tappet
|
12892-69G00-258 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-258 SHIM,TAPPET T:2.575 |
12892-69G10-258 |
from US $6.10 |
||
|
4
|
4
12892-69G00-260
Shim, tappet
|
12892-69G00-260 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-260 SHIM,TAPPET T:2.600 |
12892-69G10-260 |
from US $9.09 |
||
|
4
|
4
12892-69G00-263
Shim, tappet
|
12892-69G00-263 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-263 SHIM,TAPPET T:2.625 |
12892-69G10-263 |
from US $10.08 |
||
|
4
|
4
12892-69G00-265
Shim, tappet
|
12892-69G00-265 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-265 SHIM,TAPPET T:2.650 |
12892-69G10-265 |
from US $10.08 |
||
|
4
|
4
12892-69G00-268
Shim, tappet
|
12892-69G00-268 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-268 SHIM,TAPPET T:2.675 |
12892-69G10-268 |
from US $6.17 |
||
|
4
|
4
12892-69G00-270
Shim, tappet
|
12892-69G00-270 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-270 SHIM,TAPPET T:2.700 |
12892-69G10-270 |
from US $6.17 |
||
|
4
|
4
12892-69G00-273
Shim, tappet
|
12892-69G00-273 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-273 SHIM,TAPPET T:2.725 |
12892-69G10-273 |
US $7.36 |
||
|
4
|
4
12892-69G00-275
Shim, tappet
|
12892-69G00-275 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-275 SHIM,TAPPET T:2.750 |
12892-69G10-275 |
US $7.36 |
||
|
4
|
4
12892-69G00-278
Shim, tappet
|
12892-69G00-278 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-278 SHIM,TAPPET T:2.775 |
12892-69G10-278 |
from US $5.58 |
||
|
4
|
4
12892-69G00-280
Shim, tappet
|
12892-69G00-280 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-280 SHIM,TAPPET T:2.800 |
12892-69G10-280 |
US $10.08 |
||
|
4
|
4
12892-69G00-283
Shim, tappet
|
12892-69G00-283 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-283 SHIM,TAPPET T:2.825 |
12892-69G10-283 |
US $7.36 |
||
|
4
|
4
12892-69G00-285
Shim, tappet
|
12892-69G00-285 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-285 SHIM,TAPPET T:2.850 |
12892-69G10-285 |
US $7.36 |
||
|
4
|
4
12892-69G00-288
Shim, tappet
|
12892-69G00-288 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-288 SHIM,TAPPET T:2.875 |
12892-69G10-288 |
from US $5.58 |
||
|
4
|
4
12892-69G00-290
Shim, tappet
|
12892-69G00-290 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-290 SHIM,TAPPET T:2.900 |
12892-69G10-290 |
US $7.36 |
||
|
4
|
4
12892-69G00-293
Shim, tappet
|
12892-69G00-293 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-293 SHIM,TAPPET T:2.925 |
12892-69G10-293 |
US $7.36 |
||
|
4
|
4
12892-69G00-295
Shim, tappet
|
12892-69G00-295 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-295 SHIM,TAPPET T:2.950 |
12892-69G10-295 |
US $7.36 |
||
|
4
|
4
12892-69G00-298
Shim, tappet
|
12892-69G00-298 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-298 SHIM,TAPPET T:2.975 |
12892-69G10-298 |
from US $5.58 |
||
|
4
|
4
12892-69G00-300
Shim, tappet
|
12892-69G00-300 |
— | ||
| replacement | |||||
|
4
|
4
12892-69G10-300 SHIM,TAPPET T:3.000 |
12892-69G10-300 |
US $9.58 |
||
|
5
|
5
12911-86FA0-000
Valve, Intake
|
12911-86FA0-000 |
— | ||
| replacements | |||||
|
5
|
5
12911-86FA1-000
Valve,intake
|
12911-86FA1-000 |
— | ||
|
5
|
5
12911-86FA2-000 Valve,intake |
12911-86FA2-000 |
from US $24.26 |
||
|
6
|
6
12915-86F50-000
Valve,exhaust
|
12915-86F50-000 |
— | ||
| replacement | |||||
|
6
|
6
12915-86F51-000 Valve,exhaust |
12915-86F51-000 |
from US $36 |
||
|
7
|
7
12921-90J00-000
Spring, valve
|
12921-90J00-000 |
— | ||
| replacement | |||||
|
7
|
7
12921-90J01-000 SPRING,VALVE |
12921-90J01-000 |
from US $5.19 |
||
|
8
|
8
12931-90J00-000 RETAINER,VALVE SPRING |
12931-90J00-000 |
US $2.74 |
||
|
9
|
9
12932-85FA0-000 COTTER,VALVE |
12932-85FA0-000 |
from US $1.60 |
||
|
10
|
10
12933-86510-000 SEAT,VALVE SPRING |
12933-86510-000 |
from US $1.04 |
||
|
11
|
11
09289-06003-000 SEAL,OIL(6X12.8X10.2)Seal, valve strm Seal, valve strm; |
09289-06003-000 |
from US $5.45 |
||
