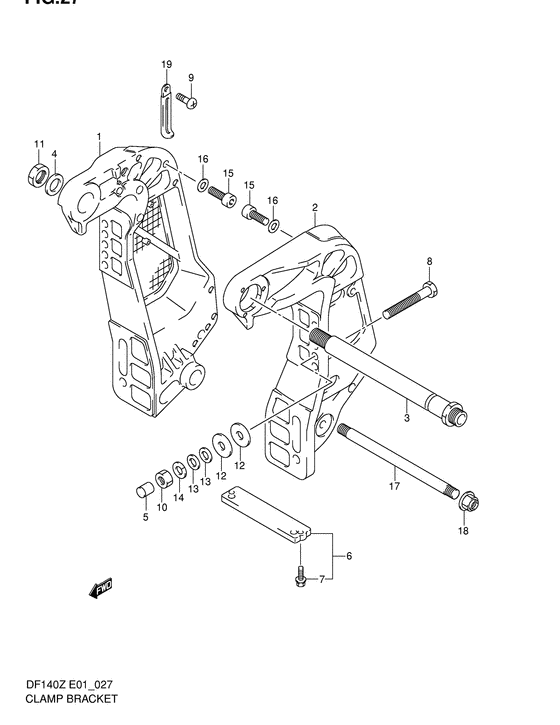

Clamp bracket Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-92J01-0EP
Bracket, clamp stbd (black)
Bracket, clamp stbd (black); |
41111-92J01-0EP |
— | ||
| replacement | |||||
|
1
|
1
41111-92J03-0EP BRACKET,CLAMP STBDBracket, clamp stbd (black); |
41111-92J03-0EP |
US $401.28 |
||
|
2
|
2
41121-92J01-0EP
Bracket, clamp port (black)
Bracket, clamp port (black); |
41121-92J01-0EP |
— | ||
| replacement | |||||
|
2
|
2
41121-92J04-0EP BRACKET,CLAMP PORT(BLACK)Bracket, clamp port (black); |
41121-92J04-0EP |
US $401.28 |
||
|
3
|
3
41130-95540-000
Shaft,clamp bra
Shaft, clamp brkt; |
41130-95540-000 |
— | ||
| replacement | |||||
|
3
|
3
41130-95541-000 SHAFT,CLAMP BRACKETShaft, clamp brkt; |
41130-95541-000 |
US $259.44 |
||
|
4
|
4
41135-92J00-000 WASHER,CLAMP BRACKET SHAFTWasher, clamp bracket shaft; |
41135-92J00-000 |
US $3.84 |
||
|
5
|
5
41153-94500-000 CAP,TRANSOM BOLTCap, transom bolt; |
41153-94500-000 |
US $2.83 |
||
|
6
|
6
55320-94900-000 ANODE SET,CLAMP BRACKETZinc, protection Zinc, protection; |
55320-94900-000 |
US $44.71 |
||
| replacement | |||||
|
6
|
6
55320-94910-000 ANODE SET,CLAMP BRACKETZinc, protection; |
55320-94910-000 |
from US $22.40 |
||
|
7
|
7
09116-06121-000 BOLT(6X25)Bolt (6x25) Bolt (6x25); |
09116-06121-000 |
from US $1.22 |
||
|
8
|
8
09100-12083-000 Bolt (12x150,pitch:1.75)Bolt (12x150); |
09100-12083-000 |
US $31.89 |
||
| replacements | |||||
|
8
|
8
09100-12090-000 BOLT(12X150)Bolt (12x150); |
09100-12090-000 |
from US $21.60 |
||
|
8
|
8
09159-12014-000 NUTBolt (12x150); |
09159-12014-000 |
from US $2.45 |
||
|
8
|
8
09100-12045-000
Bolt 12x115
Bolt (12x115); Opt |
09100-12045-000 |
— | ||
| replacements | |||||
|
8
|
8
09100-12091-000 BOLT(12X115)Bolt (12x115); Opt |
09100-12091-000 |
US $108.20 |
||
|
8
|
8
09159-12014-000 NUTBolt (12x115); Opt |
09159-12014-000 |
from US $2.45 |
||
|
9
|
9
09125-06063-000 SCREW(6X10)Screw (6x10); |
09125-06063-000 |
from US $1.28 |
||
|
10
|
10
09140-12028-000 NUT |
09140-12028-000 |
from US $3.22 |
||
|
11
|
11
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
12
|
12
09160-12044-000 WASHER(12.5X35X3.2)Washer (12.5x35x3.2) Washer (12.5x35x3.2); |
09160-12044-000 |
from US $2.13 |
||
|
13
|
13
09160-12066-000 WASHER(12.5X22X2.5)Washer (12.5x22x2.5) Washer (12.5x22x2.5); |
09160-12066-000 |
from US $1.22 |
||
|
14
|
14
09162-12005-000 WASHER,LOCKLock washer (12.2x21.5x3) Washer, lock (12.2x21.5x3.0); |
09162-12005-000 |
from US $1.51 |
||
|
15
|
15
09106-10065-000 BOLT(10X20)Bolt (10x20); |
09106-10065-000 |
from US $9.49 |
||
|
16
|
16
09160-10082-000 WASHER(10.5X19X2)Washer Washer (10.5x19x2.0); |
09160-10082-000 |
from US $0.96 |
||
|
17
|
17
45421-87D00-000
Pin,tilt lock
|
45421-87D00-000 |
— | ||
| replacement | |||||
|
17
|
17
45421-87D03-000 PIN,TILT LOCK |
45421-87D03-000 |
US $21.53 |
||
|
18
|
18
09159-14020-000 NUT |
09159-14020-000 |
from US $2.13 |
||
|
19
|
19
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
19
|
19
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
