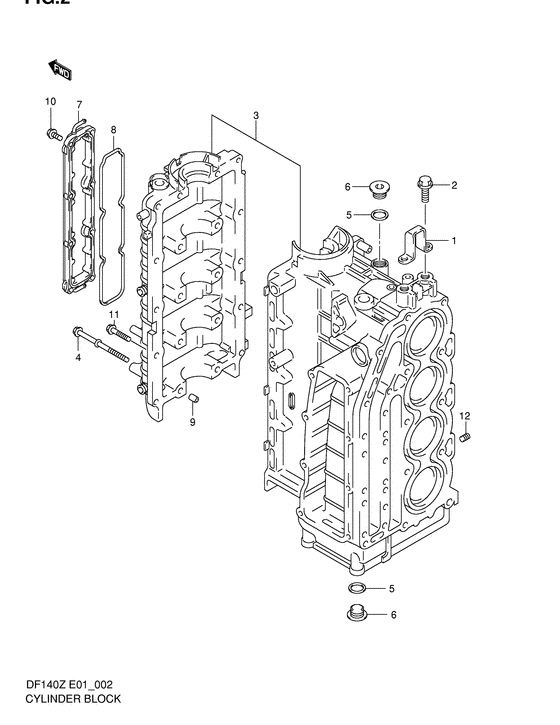

Cylinder block Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11291-90J00-019
Hook, engine (black)
Hook, engine (black); |
11291-90J00-019 |
— | ||
| replacement | |||||
|
1
|
1
11291-90J10-000 HOOK,ENGINEHook, engine (black); |
11291-90J10-000 |
US $8.21 |
||
|
2
|
2
01550-12307-000
Bolt
|
01550-12307-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1230C-000 Bolt |
01550-1230C-000 |
from US $5.24 |
||
|
3
|
3
11300-92J00-019
Block, cylinder (black)
Block, cylinder (black); |
11300-92J00-019 |
— | ||
| replacement | |||||
|
3
|
3
11300-92J00-000
BLOCK ASSY,CYLINDER
Block, cylinder (black); |
11300-92J00-000 |
— | ||
|
4
|
4
11117-90J00-000
Bolt, crankcase
|
11117-90J00-000 |
— | ||
| replacement | |||||
|
4
|
4
11117-90J10-000 BOLT,CRANKCASE |
11117-90J10-000 |
US $5.02 |
||
|
5
|
5
11216-77E00-000 GASKET,M18 PLUG |
11216-77E00-000 |
from US $1.74 |
||
|
6
|
6
09248-18005-000 PLUGPlug, oil gallery |
09248-18005-000 |
from US $8.51 |
||
| replacement | |||||
|
6
|
6
09248-18011-000 PLUG(18X8)Plug, oil gallery |
09248-18011-000 |
from US $3.15 |
||
|
7
|
7
11330-90J00-019
Cover, crkc wtr jkt (black)
Cover, crkc wtr jkt (black); |
11330-90J00-019 |
— | ||
| replacement | |||||
|
7
|
7
11330-90J00-000 COVER,CRANKCASE WTR JKTCover, water jacket Cover, crkc wtr jkt (black); |
11330-90J00-000 |
US $94.40 |
||
|
8
|
8
11332-90J00-000 O RING,CRANKCASE WTR JKT COVERO ring, water jacket cover |
11332-90J00-000 |
from US $5.88 |
||
|
9
|
9
09206-13019-000 PIN(10.4X13X16) |
09206-13019-000 |
from US $4 |
||
|
10
|
10
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
11
|
11
01550-08407-000 Bolt |
01550-08407-000 |
from US $1.12 |
||
|
12
|
12
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.76 |
||
