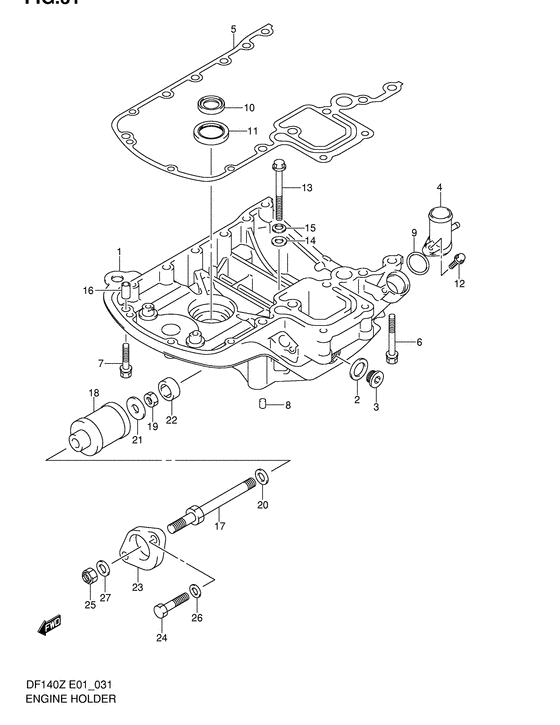

Engine holder Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51110-90J00-0EP
Holder, engine (black)
Holder, engine (black); |
51110-90J00-0EP |
— | ||
| replacement | |||||
|
1
|
1
51110-90832-0EP
HOLDER & CL SFT SET,ENG(BLACK)
Holder, engine (black); |
51110-90832-0EP |
— | ||
|
2
|
2
09160-18031-000 WASHER(18.5X28X2.6)Gasket (18.5x28x2.6); |
09160-18031-000 |
from US $1.44 |
||
|
3
|
3
09248-18006-000 PLUG(18X8) |
09248-18006-000 |
from US $9.37 |
||
|
4
|
4
51115-90J00-000 UNION,WATER RETURN |
51115-90J00-000 |
US $8.39 |
||
|
5
|
5
51211-90J01-000
Gasket, engine holder
|
51211-90J01-000 |
— | ||
| replacement | |||||
|
5
|
5
51211-90J10-000 GASKET,ENGINE HOLDER |
51211-90J10-000 |
from US $70 |
||
|
6
|
6
09116-08119-000
Bolt (8x70)
Bolt (8x70); |
09116-08119-000 |
— | ||
| replacement | |||||
|
6
|
6
09116-08160-000 BOLT(8X70)Bolt (8x70); |
09116-08160-000 |
from US $4.19 |
||
|
7
|
7
09116-08098-000
Bolt
Bolt (8x40); |
09116-08098-000 |
— | ||
| replacement | |||||
|
7
|
7
09116-08128-000 BOLT(8X40)Bolt (8x40); |
09116-08128-000 |
US $4.42 |
||
|
8
|
8
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
9
|
9
09280-26006-000 O RING(D:3.1,ID:26.4)O ring (d:3.1,id:26.4); |
09280-26006-000 |
from US $2.08 |
||
|
10
|
10
09282-24003-000 SEAL,OIL(24X36X6)Seal, oil; |
09282-24003-000 |
from US $4.95 |
||
|
11
|
11
09283-32044-000 SEAL,OIL(32X47X6)Seal, oil; |
09283-32044-000 |
from US $10.34 |
||
|
12
|
12
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
13
|
13
01550-08903-000
Bolt
|
01550-08903-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-0890B-000 Bolt |
01550-0890B-000 |
from US $7.31 |
||
|
14
|
14
09160-08053-000
Washer cylinder (Steel)
Washer (8.5x19x2.3); |
09160-08053-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-08039-000 WASHER(8.5X19X2.3) STEELWasher (8.5x19x2.3); |
09160-08039-000 |
from US $1.12 |
||
|
15
|
15
09164-08020-000 WASHERWasher, wave Washer, wave (8.4x17x1.8); |
09164-08020-000 |
from US $1.52 |
||
|
16
|
16
04211-11129-000 PINPin; |
04211-11129-000 |
from US $0.99 |
||
|
17
|
17
54112-90J02-000
Bolt, upper mount
|
54112-90J02-000 |
— | ||
| replacement | |||||
|
17
|
17
54112-90J10-000 BOLT,UPR MOUNT |
54112-90J10-000 |
US $42.40 |
||
|
18
|
18
54130-90J20-000
Mount, upper
|
54130-90J20-000 |
— | ||
| replacement | |||||
|
18
|
18
54130-90J31-000 MOUNT,UPR |
54130-90J31-000 |
US $79.49 |
||
|
19
|
19
09140-12029-000 NUT |
09140-12029-000 |
from US $4.66 |
||
|
20
|
20
09160-12099-000
Washer (12.5x24x2.5)
Washer (12.5x24x2.5); |
09160-12099-000 |
— | ||
| replacement | |||||
|
20
|
20
54113-90J00-000 WASHER,UPR MOUNTWasher (12.5x24x2.5) Washer (12.5x24x2.5); |
54113-90J00-000 |
from US $6.15 |
||
|
21
|
21
09160-12101-000
Washer (12x22x3.0)
Washer (12x22x3.0); |
09160-12101-000 |
— | ||
| replacement | |||||
|
21
|
21
09160-12110-000 WASHER(12.5X22X3)Washer (12x22x3.0); |
09160-12110-000 |
from US $4.19 |
||
|
22
|
22
54125-90J00-000
MOUNT,UPR THRUST REVERSE
|
54125-90J00-000 |
— | ||
| replacement | |||||
|
22
|
22
54125-90J01-000 Mount,upr Thrust Reverse |
54125-90J01-000 |
US $8.21 |
||
|
23
|
23
54148-90J01-0EP
Cover, upper mount (black)
Cover, upper mount (black); |
54148-90J01-0EP |
— | ||
| replacement | |||||
|
23
|
23
54148-90J11-0EP COVER,UPR MOUNTCover, upper mount (black); |
54148-90J11-0EP |
US $73.97 |
||
|
24
|
24
09100-10157-000
Bolt
Bolt (10x45); |
09100-10157-000 |
— | ||
| replacement | |||||
|
24
|
24
09100-10157-XC0 BOLT(10X45)Bolt (10x45); |
09100-10157-XC0 |
US $138.40 |
||
|
25
|
25
09159-12014-000 NUT |
09159-12014-000 |
from US $2.45 |
||
|
26
|
26
09160-10082-000 WASHER(10.5X19X2)Washer Washer (10.5x19x2.0); |
09160-10082-000 |
from US $0.96 |
||
|
27
|
27
09164-13007-000
Washer (12.5x22x2.5)
Washer (12.5x22x2.5); |
09164-13007-000 |
— | ||
| replacement | |||||
|
27
|
27
09164-13007-XC0 WASHERWasher (12.5x22x2.5); |
09164-13007-XC0 |
from US $6.77 |
||
