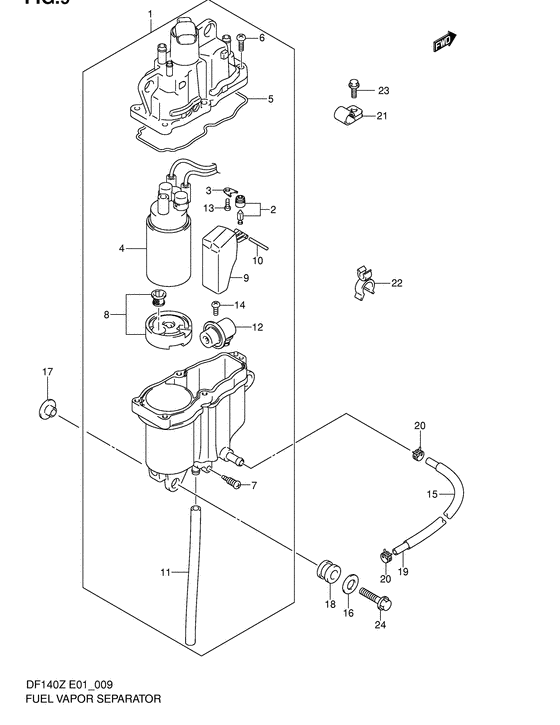

Fuel vapor separator Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15600-90J00-000
SEPARATOR ASSY,FUEL VAPOR
|
15600-90J00-000 |
— | ||
| replacement | |||||
|
1
|
1
15600-90J01-000 Separator Assy,fuel Vapor |
15600-90J01-000 |
US $1,183.95 |
||
|
2
|
2
13370-99E00-000 VALVE ASSY,NEEDLEValve, needle; |
13370-99E00-000 |
US $56.58 |
||
|
3
|
3
13373-39110-000 PLATE |
13373-39110-000 |
from US $2.52 |
||
|
4
|
4
15200-90J00-000 PUMP ASSY,FUELPump, fuel; |
15200-90J00-000 |
from US $384 |
||
|
5
|
5
15626-90J00-000 SEAL |
15626-90J00-000 |
from US $12.92 |
||
|
6
|
6
15628-99E00-000 SCREW(L:15)Screw (l:15); |
15628-99E00-000 |
US $1.84 |
||
|
7
|
7
15629-99E10-000 SCREW,DRAIN |
15629-99E10-000 |
US $3.95 |
||
|
8
|
8
15641-99E00-000
FILTER,FUEL PUMP
|
15641-99E00-000 |
— | ||
| replacement | |||||
|
8
|
8
15641-99E01-000 Filter,fuel Pump |
15641-99E01-000 |
US $27.42 |
||
|
9
|
9
15650-99E00-000 FLOAT |
15650-99E00-000 |
US $50.40 |
||
|
10
|
10
15654-99E00-000 PIN |
15654-99E00-000 |
US $1.84 |
||
|
11
|
11
15683-87J00-000 HOSEHose, drain |
15683-87J00-000 |
US $2.50 |
||
|
12
|
12
15760-87J00-000 REGULATOR |
15760-87J00-000 |
from US $173.06 |
||
|
13
|
13
02112-04083-000
Screw
|
02112-04083-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.96 |
||
|
14
|
14
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
15
|
15
18498-90J70-000
Protector, evap hose
|
18498-90J70-000 |
— | ||
| replacements | |||||
|
15
|
15
18498-90J00-000
PROTECTOR,EVAP HOSE(290)
|
18498-90J00-000 |
— | ||
|
15
|
15
18498-90J01-000 Protector,evap Hose(290) |
18498-90J01-000 |
US $3.13 |
||
|
16
|
16
09160-06084-000 WASHER(6.5X18X1.6)Washer (6.5x18x1.6); |
09160-06084-000 |
from US $0.76 |
||
|
17
|
17
09169-06075-000 WASHER |
09169-06075-000 |
from US $1.22 |
||
|
18
|
18
09320-09039-000
CUSHION
|
09320-09039-000 |
— | ||
| replacement | |||||
|
18
|
18
09320-09059-000 Cushion,silencer Cover |
09320-09059-000 |
from US $1.67 |
||
|
19
|
19
09352-50823-600
HOSE(5X8.2X600)
Hose; L:600->40 |
09352-50823-600 |
— | ||
| replacements | |||||
|
19
|
19
44420-44AR0-000 HOSE SET,FUELHose; L:600->40 |
44420-44AR0-000 |
US $11.95 |
||
|
19
|
19
09352-50005-600 Hose(5X8.2X600)Hose; L:600->40 |
09352-50005-600 |
from US $4.10 |
||
|
20
|
20
09401-08409-000 CLIPClip; |
09401-08409-000 |
from US $0.99 |
||
|
21
|
21
09403-13408-000
CLAMP
|
09403-13408-000 |
— | ||
| replacement | |||||
|
21
|
21
09403-13413-000 Clamp |
09403-13413-000 |
from US $8.31 |
||
|
22
|
22
09408-00124-000 CLIP |
09408-00124-000 |
US $21.70 |
||
|
23
|
23
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
24
|
24
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
