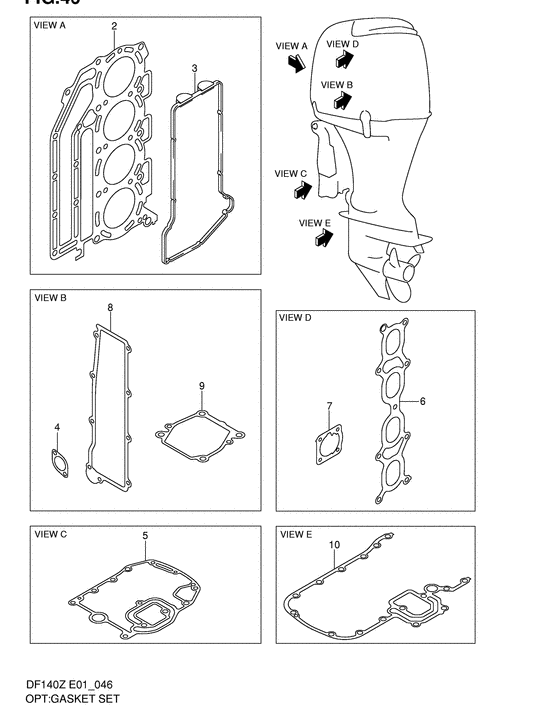

Gasket set (Optional;) Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-92851-000
Gasket set
|
11400-92851-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-92855-000
GASKET SET
|
11400-92855-000 |
— | ||
|
2
|
2
11141-92J00-000
Gasket, cyl head
|
11141-92J00-000 |
— | ||
| replacement | |||||
|
2
|
2
11141-92J01-000 GASKET,CYLINDER HEAD |
11141-92J01-000 |
from US $77.27 |
||
|
3
|
3
11189-90J00-000 GASKET,CYLINDER HEAD COVERGasket, cylinder head cover |
11189-90J00-000 |
from US $20.74 |
||
|
4
|
4
11265-87E10-000 GASKET,PROTECTION COVERGasket, protection anode; |
11265-87E10-000 |
from US $1.61 |
||
|
5
|
5
11489-90J00-000 GASKET,OIL PAN |
11489-90J00-000 |
from US $26.09 |
||
|
6
|
6
13119-90J00-000 GASKET,INTAKE MANIFOLD |
13119-90J00-000 |
from US $4.02 |
||
|
7
|
7
13421-90J00-000
Gasket, throttle body
|
13421-90J00-000 |
— | ||
| replacement | |||||
|
7
|
7
13421-90J01-000 GASKET,THROTTLE BODY |
13421-90J01-000 |
US $3.33 |
||
|
8
|
8
14151-90J00-000 GASKET,RECT & REGULATOR |
14151-90J00-000 |
from US $4.15 |
||
|
9
|
9
17472-87E10-000 GASKET,PUMP CASE PANELGasket, pump case panel Gasket, pump case panel; |
17472-87E10-000 |
from US $4.19 |
||
|
10
|
10
51211-90J01-000
Gasket, engine holder
|
51211-90J01-000 |
— | ||
| replacement | |||||
|
10
|
10
51211-90J10-000 GASKET,ENGINE HOLDER |
51211-90J10-000 |
from US $70 |
||
