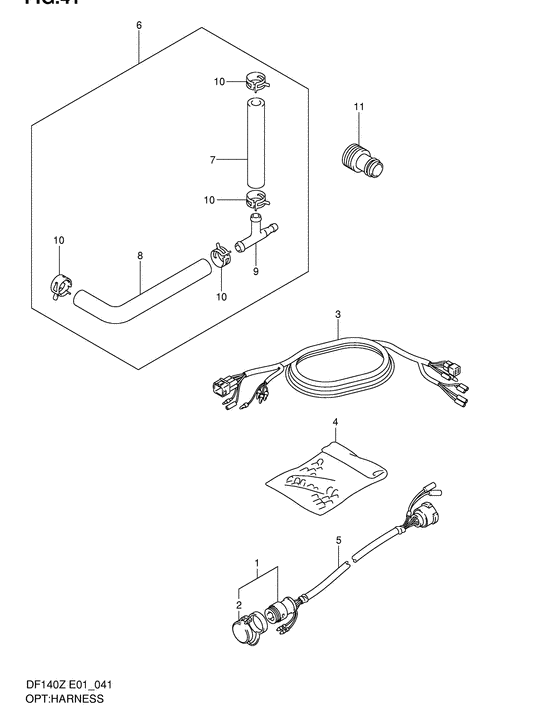

Harness (Optional;) Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36620-87D20-000 WIRE,REMOCON EXTENSION(L:5000)Wiring harness, extension Harness assy, extension (l); L:5000 |
36620-87D20-000 |
US $133.95 |
||
|
1
|
1
36620-95302-000 WIRE,REMOCON EXTENSION(L:2000)Wiring harness, extension Harness assy, extension (s); L:2000 |
36620-95302-000 |
US $96.78 |
||
|
2
|
2
36631-94300-000 CAP,REMOTE CONTROL HARNESS |
36631-94300-000 |
US $2.98 |
||
|
3
|
3
36660-94480-000 WIRE,SENDER EXT(L:2000)Wire, sender ext s Wire, sender extension (s); L:2000 |
36660-94480-000 |
US $57.41 |
||
|
4
|
4
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set Terminal & sleeve set; |
36990-87D00-000 |
US $12.02 |
||
|
5
|
5
36620-92E00-000 WIRE ASSY,REMOCON EXT(L:6360)Wiring harness 9 wires Wire, remocon ext; |
36620-92E00-000 |
US $218.96 |
||
|
6
|
6
34660-90J00-000
Water press gauge sub kit
|
34660-90J00-000 |
— | ||
| replacements | |||||
|
6
|
6
34660-90J02-000
KIT,WATER PRESS GAUGE SUB
|
34660-90J02-000 |
— | ||
|
6
|
6
34660-90J03-000
Kit,water Press Gauge Sub
|
34660-90J03-000 |
— | ||
|
6
|
6
34660-90J04-000 Water Press Gauge Sub Kit |
34660-90J04-000 |
US $9.68 |
||
|
7
|
7
09352-50903-600
HOSE(5X9X600)
L:600->60 |
09352-50903-600 |
— | ||
| replacement | |||||
|
7
|
7
09352-50006-600 Hose(5X9X600)L:600->60 |
09352-50006-600 |
from US $4.32 |
||
|
8
|
8
09352-50903-600
HOSE(5X9X600)
L:600->10 |
09352-50903-600 |
— | ||
| replacement | |||||
|
8
|
8
09352-50006-600 Hose(5X9X600)L:600->10 |
09352-50006-600 |
from US $4.32 |
||
|
9
|
9
09367-06006-000 3 WAY |
09367-06006-000 |
from US $6.43 |
||
|
10
|
10
09401-08411-000 CLIP |
09401-08411-000 |
from US $0.91 |
||
|
11
|
11
17917-99E00-000
Connector, flush water
|
17917-99E00-000 |
— | ||
| replacement | |||||
|
11
|
11
17917-87L00-000 CONNECTOR,FLUSH WATER |
17917-87L00-000 |
US $7.58 |
||
