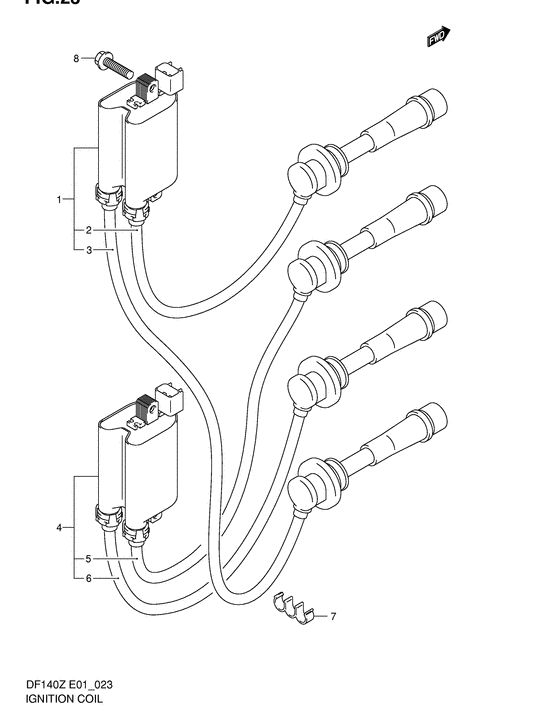

Ignition coil Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33410-90J00-000 COIL ASSY,IGNITION NO.1 |
33410-90J00-000 |
US $99.17 |
||
|
2
|
2
33710-90J00-000 CORD,HIGH TENSION NO.1No.1 |
33710-90J00-000 |
from US $30.54 |
||
|
3
|
3
33740-90J00-000 CORD,HIGH TENSION NO.4No.4 |
33740-90J00-000 |
US $26.31 |
||
|
4
|
4
33420-90J00-000 COIL ASSY,IGNITION NO.2 |
33420-90J00-000 |
US $99.17 |
||
|
5
|
5
33720-90J00-000 CORD,HIGH TENSION NO.2No.2 |
33720-90J00-000 |
US $27.60 |
||
|
6
|
6
33730-90J00-000 CORD,HIGH TENSION NO.3No.3 |
33730-90J00-000 |
US $26.31 |
||
|
7
|
7
09408-00035-000 CLIPClamp |
09408-00035-000 |
from US $1.10 |
||
|
8
|
8
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
