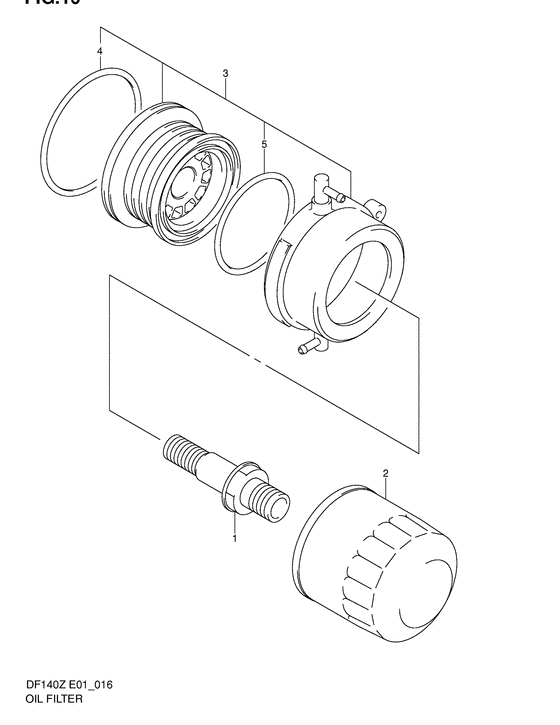

Oil filter Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11241-54E00-000 STAND,OIL COOLER |
11241-54E00-000 |
from US $31.99 |
||
|
2
|
2
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil |
16510-82703-000 |
from US $14.38 |
||
|
3
|
3
16600-92J00-000
Cooler assy, oil
|
16600-92J00-000 |
— | ||
| replacement | |||||
|
3
|
3
16600-92J10-000
Cooler Assy,Oil
|
16600-92J10-000 |
— | ||
|
4
|
4
16621-73G00-000 GASKET,OIL COOLERGasket, oil cooler |
16621-73G00-000 |
US $9.70 |
||
| replacement | |||||
|
4
|
4
16621-73G01-000 GASKET,OIL COOLER |
16621-73G01-000 |
from US $6.98 |
||
|
5
|
5
09280-56005-000 O RING(D:3.53,ID:56.74)O ring (d:3.53 id:56.74); |
09280-56005-000 |
from US $15.90 |
||
