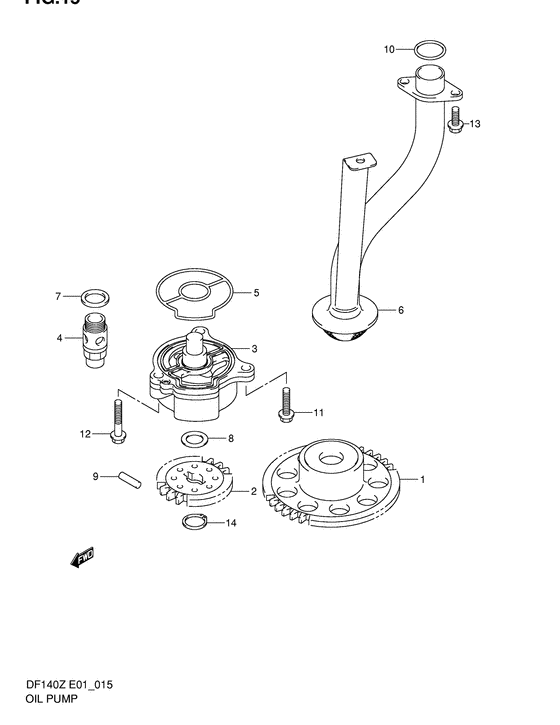

Oil pump Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12632-92J00-000
Gear, oil pump drive
|
12632-92J00-000 |
— | ||
| replacement | |||||
|
1
|
1
12630-92811-000 GEAR SET,OIL PUMP |
12630-92811-000 |
US $85.01 |
||
|
2
|
2
16113-90J00-000
Gear, oil pump driven
|
16113-90J00-000 |
— | ||
|
3
|
3
16400-90J00-000 PUMP ASSY,OIL |
16400-90J00-000 |
from US $130.25 |
||
|
4
|
4
16440-99E00-000 VALVE ASSY,OIL RELIEFValve, oil relife; |
16440-99E00-000 |
US $25.09 |
||
| replacement | |||||
|
4
|
4
16440-99E01-000 Valve Assy,Oil ReliefValve, oil relife; |
16440-99E01-000 |
from US $25.09 |
||
|
5
|
5
16451-90J00-000 O RING,OIL PUMP |
16451-90J00-000 |
from US $7.68 |
||
|
6
|
6
16520-90J00-000 STRAINER,OIL PUMP |
16520-90J00-000 |
US $35.73 |
||
|
7
|
7
09168-16002-000 GASKET(16X22X2)Gasket (16x22x2.0); |
09168-16002-000 |
from US $1.31 |
||
|
8
|
8
09181-12158-000 SHIM(12X20X0.5)Washer (12x20x0.5) Washer (12x20x0.5); |
09181-12158-000 |
from US $1.60 |
||
|
9
|
9
09261-05006-000 PIN(5X18) |
09261-05006-000 |
from US $0.96 |
||
|
10
|
10
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) O ring (d:2.4,id:21.8); |
09280-22020-000 |
from US $1.60 |
||
|
11
|
11
01547-06257-000 Bolt |
01547-06257-000 |
from US $1.12 |
||
|
12
|
12
01547-06357-000 Bolt |
01547-06357-000 |
from US $0.96 |
||
|
13
|
13
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
08331-31126-000
Circlip
|
08331-31126-000 |
— | ||
| replacement | |||||
|
14
|
14
08331-3112A-000 CIRCLIP |
08331-3112A-000 |
from US $0.91 |
||
