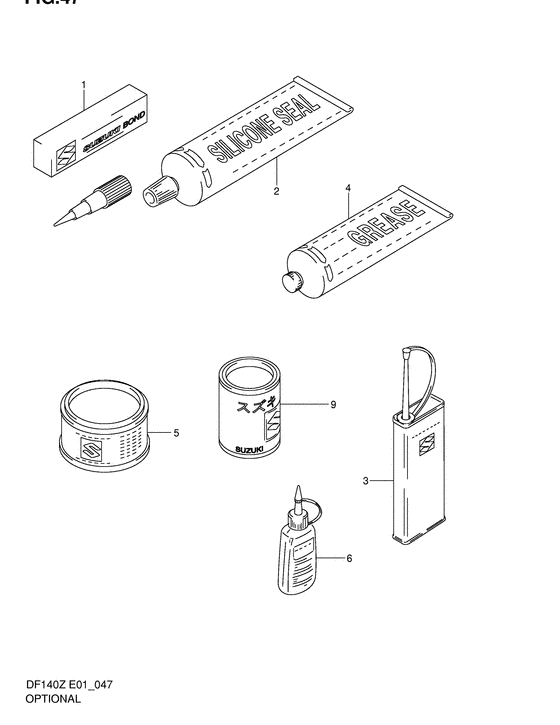

Optional Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
99000-31010-000
LIQUID GSKT 150G BLACK
Liquid gasket; For crankcase |
99000-31010-000 |
— | ||
|
1
|
1
99000-31120-000
Silicon seal 50
Silicone sealant; 50g,for gear case |
99000-31120-000 |
— | ||
| replacement | |||||
|
1
|
1
93691-80030-000
SEAL
Silicone sealant; 50g,for gear case |
93691-80030-000 |
— | ||
|
2
|
2
93691-80030-000
SEAL
Silicone sealant; 100g,for gear case |
93691-80030-000 |
— | ||
|
3
|
3
99000-32040-000
THREAD LOCK NO.1401 CLEAR 200G
Cement, thread lock; 200g |
99000-32040-000 |
— | ||
|
4
|
4
99000-25160-000
Grease resistan
Grease, water resistant; 250g |
99000-25160-000 |
— | ||
| replacement | |||||
|
4
|
4
99000-25350-000
GREASE,WATER RESISTANT EP2
Grease, water resistant; 250g |
99000-25350-000 |
— | ||
|
5
|
5
99000-25010-000
Suzuki super grease a
Super grease a; 350g,for engine oil seal |
99000-25010-000 |
— | ||
| replacements | |||||
|
5
|
5
99000-25011-000
GREASE(A)450G
Super grease a; 350g,for engine oil seal |
99000-25011-000 |
— | ||
|
5
|
5
99000-25480-000
Ecstar Grease(A)
Super grease a; 350g,for engine oil seal |
99000-25480-000 |
— | ||
|
6
|
6
99000-32050-000
1342 threadlock
Thread lock cement; 50g (1342) |
99000-32050-000 |
— | ||
| replacement | |||||
|
6
|
6
99000-32160-000
THREAD LOCK NO.1342H BLUE 50G
Thread lock cement; 50g (1342) |
99000-32160-000 |
— | ||
|
6
|
6
99000-32020-000
THREAD LOCK(1333B RED 50G)
50g (1333b) |
99000-32020-000 |
— | ||
| replacement | |||||
|
6
|
6
990A0-06E33-10C
ECSTAR TLOCK 13
50g (1333b) |
990A0-06E33-10C |
— | ||
|
7
|
7
99011-92J00-051 MANUAL,OWNER'S DF140('02)Booklet type, drawing not shown |
99011-92J00-051 |
US $15.46 |
||
|
7
|
7
99011-92J00-04B MANUAL,OWNER'S DF140('02) |
99011-92J00-04B |
US $15.46 |
||
