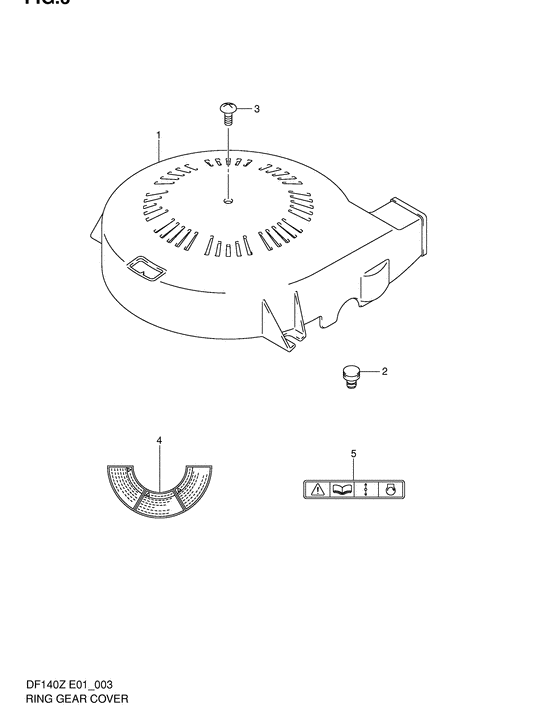

Ring gear cover Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-90J00-000 COVER ASSY,RING GEAR |
11510-90J00-000 |
US $40.80 |
||
|
2
|
2
11512-99E00-000
CUSHION,RING GEAR COVER
|
11512-99E00-000 |
— | ||
| replacement | |||||
|
2
|
2
11512-99E01-000 Cushion,ring Gear Cover |
11512-99E01-000 |
US $3.20 |
||
|
3
|
3
09125-06111-000 SCREW(6X18)Screw (6x18); |
09125-06111-000 |
from US $0.95 |
||
|
4
|
4
61472-93E31-000
Label, mag cover
|
61472-93E31-000 |
— | ||
| replacements | |||||
|
4
|
4
61472-93E32-000
LABEL,RECOIL,STARTER
|
61472-93E32-000 |
— | ||
|
4
|
4
61472-93E33-000 Label,recoil,starter |
61472-93E33-000 |
US $8.35 |
||
|
5
|
5
69711-93E10-000
LABEL,S.I.G.P.
Label, caution; |
69711-93E10-000 |
— | ||
| replacement | |||||
|
5
|
5
69711-93E11-000 Label(S.i.g.p.)Label, caution; |
69711-93E11-000 |
US $3.83 |
||
