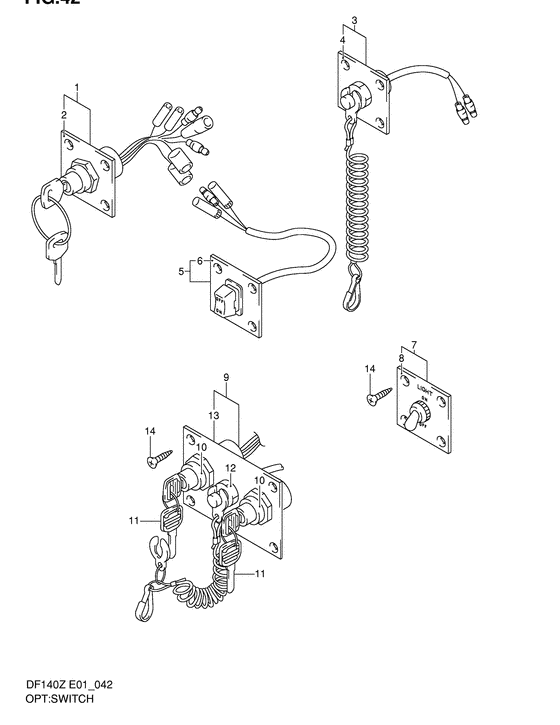

Switch (Optional;) Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37100-92E00-000
Sngl ign sw pan
|
37100-92E00-000 |
— | ||
| replacements | |||||
|
1
|
1
37100-99E00-000
PANEL ASSY,IGNITION SWITCH
|
37100-99E00-000 |
— | ||
|
1
|
1
37100-99E01-000 Panel Assy,ignition Switch |
37100-99E01-000 |
US $81.33 |
||
|
2
|
2
37139-92E00-000
Panel,ignition
Panel, ignition sw; |
37139-92E00-000 |
— | ||
| replacement | |||||
|
2
|
2
37139-92E01-000 PANEL,IGNITION SWITCHPanel, ignition switch Panel, ignition sw; |
37139-92E01-000 |
US $29.99 |
||
|
3
|
3
37803-92E00-000
Emgry switch pn
|
37803-92E00-000 |
— | ||
| replacements | |||||
|
3
|
3
37803-99E05-000
PANEL ASSY, EMERGENCY SWITCH
|
37803-99E05-000 |
— | ||
|
3
|
3
37803-99E06-000 Panel Assy,emergency Switch |
37803-99E06-000 |
US $56.67 |
||
|
4
|
4
37825-92E00-000 PANEL,EMERGENCY SWPanel, emergency sw; |
37825-92E00-000 |
US $29.99 |
||
|
5
|
5
37805-92E00-000 PANEL ASSY,PTT SWPanel assy, ptt sw Ptt switch set; |
37805-92E00-000 |
US $83.54 |
||
|
6
|
6
37855-92E00-000
Panel,ptt sw
Panel, ptt sw; |
37855-92E00-000 |
— | ||
| replacement | |||||
|
6
|
6
37855-99E00-000 PANEL,PTT SWPanel, ptt sw; |
37855-99E00-000 |
US $31.28 |
||
|
7
|
7
37210-92E00-000
Panel assy, lighting sw
Lighting sw set; |
37210-92E00-000 |
— | ||
| replacement | |||||
|
7
|
7
37210-93J00-000 PANEL ASSY,LIGHTING SWITCHLighting sw set; |
37210-93J00-000 |
US $74.70 |
||
|
8
|
8
37212-92E00-000
Panel,lighting
Panel, lighting sw; |
37212-92E00-000 |
— | ||
|
9
|
9
37100-92E12-000
Panel assy,dual
|
37100-92E12-000 |
— | ||
| replacement | |||||
|
9
|
9
37100-99E14-000
PANEL ASSY,DUAL ENGINE SWITCH
|
37100-99E14-000 |
— | ||
|
10
|
10
37110-92E01-000
Switch assy, ig
Switch assy, ignition; |
37110-92E01-000 |
— | ||
| replacements | |||||
|
10
|
10
37110-99E01-000
SWITCH ASSY,IGNITION
Switch assy, ignition; |
37110-99E01-000 |
— | ||
|
10
|
10
37110-99E02-000 Switch Assy,ignitionSwitch assy, ignition; |
37110-99E02-000 |
US $68.82 |
||
|
11
|
11
37141-92E00-000 KEY(11)Key (11); |
37141-92E00-000 |
US $13.91 |
||
|
11
|
11
37141-92E10-000 KEY(12)Key (12); |
37141-92E10-000 |
US $13.91 |
||
|
11
|
11
37141-92E20-000 KEY(13)Key (13); |
37141-92E20-000 |
US $13.91 |
||
|
11
|
11
37141-92E30-000 KEY(14)Key (14); |
37141-92E30-000 |
US $13.91 |
||
|
11
|
11
37141-92E40-000 KEY(15)Key (15); |
37141-92E40-000 |
US $13.91 |
||
|
11
|
11
37141-92E50-000 KEY(16)Key (16); |
37141-92E50-000 |
US $13.91 |
||
|
11
|
11
37141-92E60-000 KEY(17)Key (17); |
37141-92E60-000 |
US $13.91 |
||
|
11
|
11
37141-92E70-000 KEY(18)Key (18); |
37141-92E70-000 |
US $13.91 |
||
|
11
|
11
37141-92E80-000 KEY(19)Key (19); |
37141-92E80-000 |
US $13.91 |
||
|
11
|
11
37141-92E90-000 KEY(20)Key (20); |
37141-92E90-000 |
US $13.91 |
||
|
12
|
12
37820-92E90-000
Switch assy,eme
|
37820-92E90-000 |
— | ||
| replacements | |||||
|
12
|
12
37820-92E94-000
SWITCH ASSY,EMERGENCY
|
37820-92E94-000 |
— | ||
|
12
|
12
37820-92E95-000 Switch Assy,emergency |
37820-92E95-000 |
US $61.82 |
||
|
13
|
13
37139-92E10-000
Panel,ignition
|
37139-92E10-000 |
— | ||
| replacement | |||||
|
13
|
13
37139-99E10-000 PANEL,IGNITION SWITCH |
37139-99E10-000 |
US $47.84 |
||
|
14
|
14
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.80 |
||
