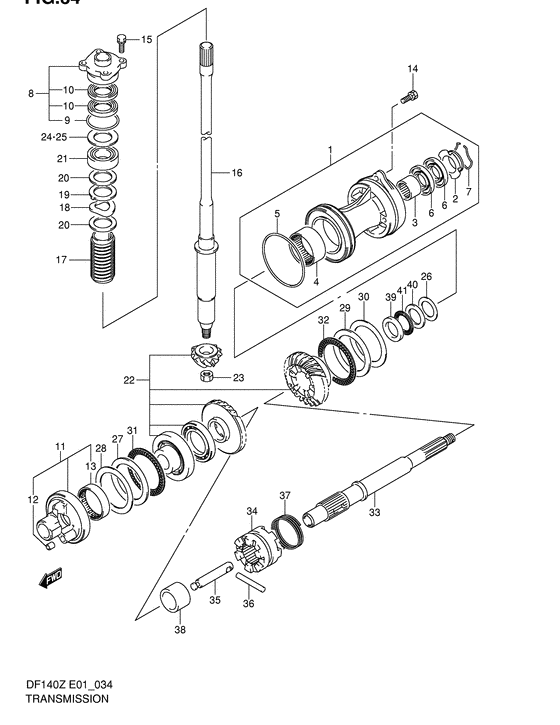

Transmission (Counter rotation) Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56120-92J10-0EP
Housing, prop shaft brg (black
Housing, prop shaft brg (black); |
56120-92J10-0EP |
— | ||
| replacement | |||||
|
1
|
1
56120-92J11-0EP
HOUSING,PROPELLER SFT BRG
Housing, prop shaft brg (black); |
56120-92J11-0EP |
— | ||
|
2
|
2
56123-92J00-000 WASHER,OIL SEAL PROTECTOR |
56123-92J00-000 |
US $2.08 |
||
|
3
|
3
09263-30051-000 BEARING(30X37X26)Bearing (30x37x26); |
09263-30051-000 |
from US $19.20 |
||
|
4
|
4
09263-50001-000 BEARING(50X62X25)Bearing Bearing (50x62x25); |
09263-50001-000 |
from US $40 |
||
|
5
|
5
09280-97001-000 O RING(D:3.5,ID:95)O ring (d:3.5,id:95.0) O ring (d:3.5 id:95); |
09280-97001-000 |
from US $2.27 |
||
|
6
|
6
09282-30007-000 SEAL,OIL(30X50X6)Seal oil; |
09282-30007-000 |
from US $7.20 |
||
|
7
|
7
09387-52001-000 SET,RINGRing, oil seal; |
09387-52001-000 |
US $1.62 |
||
|
8
|
8
56130-90J00-000 HOUSING,DRIVE SHAFT OIL SEALHousing, drive shaft brg; |
56130-90J00-000 |
from US $58.88 |
||
|
9
|
9
09280-46004-000 O RING(D:3.5,ID:45.7)O ring (d:3.5 id:45.7); |
09280-46004-000 |
from US $1.47 |
||
|
10
|
10
09282-24004-000 SEAL,OIL(24X40X7)Oil seal Seal, oil; |
09282-24004-000 |
from US $5.62 |
||
|
11
|
11
56140-92J10-000
Housing, rev gear brg
|
56140-92J10-000 |
— | ||
| replacement | |||||
|
11
|
11
56140-92J30-000 HOUSING,REV GEAR BEARING |
56140-92J30-000 |
US $181.06 |
||
|
12
|
12
09206-09012-000 PIN(7.4X9X10)Pin, knock Pin, knock; |
09206-09012-000 |
from US $1.82 |
||
|
13
|
13
09263-45004-000 BEARING(45X52X16)Bearing (45x52x16); |
09263-45004-000 |
from US $20.98 |
||
|
14
|
14
09117-08047-000 BOLT(8X30)Bolt (8x30); |
09117-08047-000 |
from US $1.76 |
||
|
15
|
15
09117-08057-000
Bolt
Bolt (8x25); |
09117-08057-000 |
— | ||
| replacement | |||||
|
15
|
15
09117-08110-000 BOLT(8X25)Bolt (8x25); |
09117-08110-000 |
from US $1.92 |
||
|
16
|
16
57110-90J10-000
Shaft, drive
Shaft, drive; |
57110-90J10-000 |
— | ||
| replacement | |||||
|
16
|
16
57110-90J30-000 SHAFT,DRIVE(X)Shaft assy, drive (ul) Shaft, drive; |
57110-90J30-000 |
US $841.28 |
||
|
17
|
17
57133-90J01-000
Collar, drive shaft
|
57133-90J01-000 |
— | ||
| replacement | |||||
|
17
|
17
57133-90J02-000 COLLAR,DRIVE SHAFT |
57133-90J02-000 |
US $11.68 |
||
|
18
|
18
09164-31001-000 WASHER |
09164-31001-000 |
from US $3.20 |
||
|
19
|
19
09169-31001-000 WASHER |
09169-31001-000 |
from US $2.40 |
||
|
20
|
20
09181-31001-000 Washer,31x46x2.0Washer (31x46x2.0); |
09181-31001-000 |
from US $2.72 |
||
|
21
|
21
09265-25040-000
Bearing
|
09265-25040-000 |
— | ||
| replacement | |||||
|
21
|
21
09265-25046-000 BEARING(25X52X19.25) |
09265-25046-000 |
from US $44 |
||
|
22
|
22
57300-92810-000 PINION & GEAR SET |
57300-92810-000 |
US $883.12 |
||
|
23
|
23
09140-14024-000 NUT |
09140-14024-000 |
from US $2.08 |
||
|
24
|
24
57500-87872-000
Shim set,drive
|
57500-87872-000 |
— | ||
| replacement | |||||
|
24
|
24
57500-87873-000 SHIM SET,DRIVE SHAFT |
57500-87873-000 |
from US $37.60 |
||
|
25
|
25
09181-41003-000 SHIM(41X52X0.6)Shim (t:0.60) Shim (41x52x0.60); |
09181-41003-000 |
from US $2.36 |
||
|
25
|
25
09181-41004-000 SHIM(41X52X0.65)Shim (t:0.65) Shim (41x52x0.65); |
09181-41004-000 |
from US $2.30 |
||
|
25
|
25
09181-41005-000 SHIM(41X52X0.7)Shim (t:0.70) Shim (41x52x0.70); |
09181-41005-000 |
from US $2.30 |
||
|
25
|
25
09181-41006-000 SHIM(41X52X0.75)Shim (t:0.75) Shim (41x52x0.75); |
09181-41006-000 |
from US $2.30 |
||
|
25
|
25
09181-40190-000 SHIM(40X52X0.8)Shim (t:0.80) Shim (41x52x0.80); |
09181-40190-000 |
from US $1.49 |
||
|
25
|
25
09181-41008-000 SHIM(41X52X0.85)Shim (t:0.85) Shim (41x52x0.85); |
09181-41008-000 |
from US $2.30 |
||
|
25
|
25
09181-41009-000 SHIM(41X52X0.9)Shim (t:0.90) Shim (41x52x0.90); |
09181-41009-000 |
from US $9.93 |
||
|
25
|
25
09181-41010-000 SHIM(41X52X0.95)Shim (t:0.95) Shim (41x52x0.95); |
09181-41010-000 |
from US $2.30 |
||
|
25
|
25
09181-40195-000 SHIM(40X52X1)Shim (t:1.00) Shim (41x52x1.00); |
09181-40195-000 |
from US $2.58 |
||
|
25
|
25
09181-41012-000 SHIM(41X52X1.05)Shim (t:1.05) Shim (41x52x1.05); |
09181-41012-000 |
from US $2.72 |
||
|
25
|
25
09181-41013-000 SHIM(41X52X1.1)Shim (t:1.10) Shim (41x52x1.10); |
09181-41013-000 |
from US $2.30 |
||
|
25
|
25
09181-41014-000 SHIM(41X52X1.15)Shim (t:1.15) Shim (41x52x1.15); |
09181-41014-000 |
from US $2.30 |
||
|
26
|
26
09160-35015-000 WASHER(35X46X0.6)Washer (35x46x0.6); Prop saft rev |
09160-35015-000 |
from US $2.88 |
||
|
26
|
26
09160-35014-000 WASHER(35X46X0.7)Washer (35x46x0.7); |
09160-35014-000 |
from US $2.88 |
||
|
26
|
26
09160-35013-000 WASHER(35X46X0.8)Washer (35x46x0.8); |
09160-35013-000 |
from US $2.88 |
||
|
26
|
26
09160-35006-000 WASHER(35X46X0.9)Washer (35x46x0.9); |
09160-35006-000 |
from US $1.73 |
||
|
26
|
26
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) Washer (35x46x0.95); |
09160-35008-000 |
from US $4.19 |
||
|
26
|
26
09160-35002-000 WASHER(35X46X1)Washer (35x46x1.0); |
09160-35002-000 |
from US $1.53 |
||
|
26
|
26
09160-35009-000 WASHER(35X46X1.05)Washer (35x46x1.05); |
09160-35009-000 |
from US $4.19 |
||
|
26
|
26
09160-35003-000 WASHER(35X46X1.1)Washer (35x46x1.1); |
09160-35003-000 |
from US $1.89 |
||
|
26
|
26
09160-35010-000 WASHER(35X46X1.15)Washer (35x46x1.15); |
09160-35010-000 |
from US $4.19 |
||
|
27
|
27
09160-60002-000 WASHER(60X85X4.2)Washer (60x85x4.2) Washer (60x85x4.2); Rev gear |
09160-60002-000 |
US $31.28 |
||
|
28
|
28
09160-60008-000 WASHER(60X85X0.8)Washer (60x85x0.8) Washer (60x85x0.8); |
09160-60008-000 |
US $86.80 |
||
|
28
|
28
09160-60009-000 WASHER(60X85X0.9)Washer (60x85x0.9) Washer (60x85x0.9); |
09160-60009-000 |
from US $16.18 |
||
|
28
|
28
09160-60003-000 WASHER(60X85X1)Washer (60x85x1.0) Washer (60x85x1.0); |
09160-60003-000 |
from US $19.02 |
||
|
28
|
28
09160-60004-000 WASHER(60X85X1.1)Washer (60x85x1.1) Washer (60x85x1.1); |
09160-60004-000 |
from US $19.02 |
||
|
28
|
28
09160-60005-000 WASHER(60X85X1.2)Washer (60x85x1.2) Washer (60x85x1.2); |
09160-60005-000 |
from US $11.85 |
||
|
28
|
28
09160-60006-000 WASHER(60X85X1.3)Washer (60x85x1.3) Washer (60x85x1.3); |
09160-60006-000 |
from US $23.67 |
||
|
28
|
28
09160-60007-000 WASHER(60X85X1.4)Washer (60x85x1.4) Washer (60x85x1.4); |
09160-60007-000 |
from US $19.02 |
||
|
29
|
29
09160-70002-000 WASHER(70X95X5.25)Washer (70x95x5.25) Washer (70x95x5.25); Fwd gear |
09160-70002-000 |
from US $39.20 |
||
|
30
|
30
09181-70006-000 SHIM(70X95X0.6)Shim (70x95x0.6) Shim (70x95x0.6); |
09181-70006-000 |
US $44.50 |
||
|
30
|
30
09181-70009-000 SHIM(70X95X0.65)Shim (70x95x0.65) Shim (70x95x0.65); |
09181-70009-000 |
US $53 |
||
|
30
|
30
09181-70001-000 SHIM(70X95X0.7)Shim (70x95x0.7) Shim (70x95x0.7); |
09181-70001-000 |
US $39.70 |
||
|
30
|
30
09181-70010-000 SHIM(70X95X0.75)Shim (70x95x0.75) Shim (70x95x0.75); |
09181-70010-000 |
US $53 |
||
|
30
|
30
09181-70002-000 SHIM(70X95X0.8)Shim (70x95x0.8) Shim (70x95x0.8); |
09181-70002-000 |
US $39.70 |
||
|
30
|
30
09181-70011-000 SHIM(70X95X0.85)Shim (70x95x0.85) Shim (70x95x0.85); |
09181-70011-000 |
US $53 |
||
|
30
|
30
09181-70003-000 SHIM(70X95X0.9)Shim (70x95x0.9) Shim (70x95x0.9); |
09181-70003-000 |
US $39.70 |
||
|
30
|
30
09181-70012-000 SHIM(70X95X0.95)Shim (70x95x0.95) Shim (70x95x0.95); |
09181-70012-000 |
US $84.60 |
||
|
30
|
30
09181-70004-000 SHIM(70X95X1)Shim (70x95x1.0) Shim (70x95x1.0); |
09181-70004-000 |
US $39.70 |
||
|
31
|
31
09269-60001-000 BEARING(60X85X3)Bearing (60x85x3.0) Bearing (60x85x3.0); Rev |
09269-60001-000 |
US $20 |
||
|
32
|
32
09269-70001-000 BEARING(70X95X4)Bearing Bearing (70x95x4.0); Fwd |
09269-70001-000 |
from US $37.60 |
||
|
33
|
33
57610-92J10-000
Shaft, propeller
|
57610-92J10-000 |
— | ||
| replacement | |||||
|
33
|
33
57610-92J11-000 SHAFT,PROPELLER |
57610-92J11-000 |
US $975.04 |
||
|
34
|
34
57621-92J00-000 SHIFTER,CLUTCH DOG |
57621-92J00-000 |
US $138 |
||
|
35
|
35
57631-87E00-000 PIN,CONNECTORRod, push |
57631-87E00-000 |
US $19.87 |
||
|
36
|
36
09202-07002-000 PIN(7X48) |
09202-07002-000 |
from US $4.93 |
||
|
37
|
37
09440-50002-000 SPRING |
09440-50002-000 |
US $23.20 |
||
|
38
|
38
57616-92J00-000 SPACER,CLUTCH DOG FORWARD |
57616-92J00-000 |
US $41.95 |
||
|
39
|
39
09160-30055-000 WASHER(30X47X6)Washer (30x47x6.0) Washer (30x47x6.0); Prop saft rev |
09160-30055-000 |
from US $72.21 |
||
|
40
|
40
09160-30056-000 WASHER(32X47X3)Washer (32x47x3.0) Washer (32x47x3.0); Prop saft rev |
09160-30056-000 |
from US $15.97 |
||
|
41
|
41
09269-30014-000 BEARING(30X47X2)Bearing (30x47x2.0) Bearing (30x47x2.0); Prop saft rev |
09269-30014-000 |
from US $6.72 |
||
