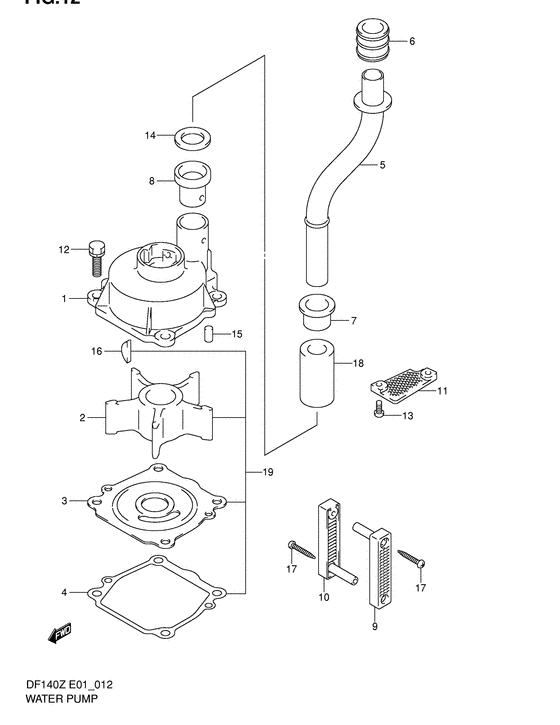

Water pump Diagram Suzuki DF140 (Z)TL/X
- Year
- 2002
- Model
- DF140
- Year
- 2002
- Engine
- 14001F-251001~ (14001Z-251001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 140
- Sales region
- Japan
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17411-90J00-000
Case, water pump
|
17411-90J00-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-90812-000 Water Pump Case Set |
17400-90812-000 |
US $192 |
||
|
2
|
2
17461-90J00-000
Impeller, water pump
|
17461-90J00-000 |
— | ||
| replacement | |||||
|
2
|
2
17461-90J01-000 Impeller,Water Pump |
17461-90J01-000 |
from US $50.86 |
||
|
3
|
3
17471-87E01-000
Panel,pump case
|
17471-87E01-000 |
— | ||
| replacement | |||||
|
3
|
3
17471-92J00-000 PANEL,PUMP CASE UNDER |
17471-92J00-000 |
from US $10.55 |
||
|
4
|
4
17472-87E10-000 GASKET,PUMP CASE PANELGasket, pump case panel Gasket, pump case panel; |
17472-87E10-000 |
from US $4.19 |
||
|
5
|
5
17560-90J11-000
Tube, water (x)
Tube, water (ul); |
17560-90J11-000 |
— | ||
| replacements | |||||
|
5
|
5
09161-16008-000 WASHER(15.8X26X1)Tube, water (ul); |
09161-16008-000 |
from US $0.93 |
||
|
5
|
5
17561-90J13-000 TUBE,WATER(X)Tube, water (ul); |
17561-90J13-000 |
US $29.07 |
||
|
6
|
6
17562-90J00-000
BUSH,WATER TUBE UPR
|
17562-90J00-000 |
— | ||
| replacement | |||||
|
6
|
6
17562-90J01-000 Bush,water Tube Upr |
17562-90J01-000 |
US $3.68 |
||
|
7
|
7
17563-87D00-000
BUSH,WATER TUBE,LOWER
|
17563-87D00-000 |
— | ||
| replacement | |||||
|
7
|
7
17563-87D01-000 Bush,water Tube,lower |
17563-87D01-000 |
US $7.36 |
||
|
8
|
8
17564-87D00-000 BUSH,WATER PUMP CASEBush, water pump case |
17564-87D00-000 |
from US $10.40 |
||
|
9
|
9
17631-90J00-000 FILTER,WATER PORT SIDEFilter, water port side Filter, water port side; |
17631-90J00-000 |
from US $3.84 |
||
|
10
|
10
17632-90J00-000 FILTER,WATER STBD SIDEFilter, water stbd side Filter, water stbd side; |
17632-90J00-000 |
from US $3.84 |
||
|
11
|
11
17635-87E00-000 FILTER,WATER SUBFilter, water sub; |
17635-87E00-000 |
US $3.04 |
||
|
12
|
12
09117-08057-000
Bolt
Bolt (8x25); |
09117-08057-000 |
— | ||
| replacement | |||||
|
12
|
12
09117-08110-000 BOLT(8X25)Bolt (8x25); |
09117-08110-000 |
from US $1.92 |
||
|
13
|
13
09125-05046-000 SCREW(5X12)Screw (5x12) Screw (5x12); |
09125-05046-000 |
from US $0.96 |
||
|
14
|
14
09161-16008-000 WASHER(15.8X26X1)Washer (15.8x26x1.0); |
09161-16008-000 |
from US $0.93 |
||
|
15
|
15
09202-06031-000 PIN(6X12)Pin, knock Pin, knock; |
09202-06031-000 |
from US $1.92 |
||
|
16
|
16
09420-05006-000
Key
|
09420-05006-000 |
— | ||
| replacement | |||||
|
16
|
16
09420-05009-000 KEY |
09420-05009-000 |
from US $8.35 |
||
|
17
|
17
03112-04303-000
Screw
|
03112-04303-000 |
— | ||
| replacement | |||||
|
17
|
17
03112-04309-000 SCREW |
03112-04309-000 |
from US $0.76 |
||
|
18
|
18
17612-90J00-000
SPACER,WATER TUBE
Spacer, water tube (ul); |
17612-90J00-000 |
— | ||
| replacement | |||||
|
18
|
18
17612-90J01-000 Spacer,water TubeSpacer, water tube (ul); |
17612-90J01-000 |
US $5.12 |
||
|
19
|
19
17400-90J10-000
Water pump repair kit
Opt |
17400-90J10-000 |
— | ||
| replacement | |||||
|
19
|
19
17400-90J20-000 KIT,WATER PUMP REPAIROpt |
17400-90J20-000 |
from US $47.32 |
||
