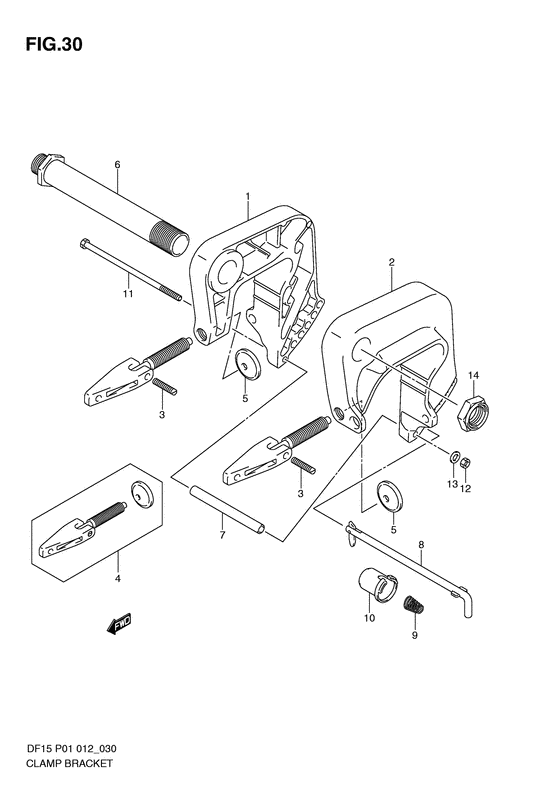

Clamp bracket (Df15 p01) Diagram Suzuki DF15 S/L; RS/L
- Year
- 2011
- Model
- DF15
- Year
- 2011
- Engine
- 01503F-110001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-94J20-0EP BRACKET,CLAMP STBDBracket, clamp stbd (black); |
41111-94J20-0EP |
US $154.56 |
||
|
2
|
2
41121-94J20-0EP BRACKET,CLAMP PORTBracket, clamp port (black); |
41121-94J20-0EP |
US $111.87 |
||
|
3
|
3
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) Spring; |
09205-06007-000 |
from US $1.04 |
||
|
4
|
4
41210-89E11-000 SCREW ASSY,CLAMPOpt |
41210-89E11-000 |
US $31.20 |
||
|
5
|
5
41213-98100-000
PLATE,CLAMP
Plate, clamp; |
41213-98100-000 |
— | ||
| replacement | |||||
|
5
|
5
41213-94J01-000 PLATE,CLAMPPlate, clamp; |
41213-94J01-000 |
US $3.04 |
||
|
6
|
6
41130-89E20-000
Shaft comp,clamp bracket
Shaft, clamp brkt; |
41130-89E20-000 |
— | ||
| replacement | |||||
|
6
|
6
41130-90L00-000 SHAFT,CLAMP BRACKETShaft, clamp brkt; |
41130-90L00-000 |
US $115.20 |
||
|
7
|
7
09180-06163-000 SPACER(6.5X10.5X104)Spacer (6.5x10.5x104); |
09180-06163-000 |
US $6.49 |
||
|
8
|
8
45420-99J00-000
Pin,tilt lock
|
45420-99J00-000 |
— | ||
| replacements | |||||
|
8
|
8
45420-99JM0-000
PIN,TILT LOCK
|
45420-99JM0-000 |
— | ||
|
8
|
8
45420-99JM1-000 PIN COMP,TILT LOCK |
45420-99JM1-000 |
US $32 |
||
|
9
|
9
09441-17001-000 SPRING |
09441-17001-000 |
US $2.24 |
||
|
10
|
10
45425-94J00-000
Stopper
|
45425-94J00-000 |
— | ||
| replacement | |||||
|
10
|
10
45425-94J01-000 STOPPER,TILT LOCK PIN |
45425-94J01-000 |
US $2.08 |
||
|
11
|
11
09100-06125-000
Bolt
Bolt (6x140); |
09100-06125-000 |
— | ||
| replacement | |||||
|
11
|
11
09100-06177-000 BOLT(6X140)Bolt (6x140); |
09100-06177-000 |
US $4.46 |
||
|
12
|
12
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.52 |
||
|
13
|
13
09160-06082-000 WASHER(6.5X13X1.0)Washer (6.5x13x1.0); |
09160-06082-000 |
from US $0.96 |
||
|
14
|
14
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
