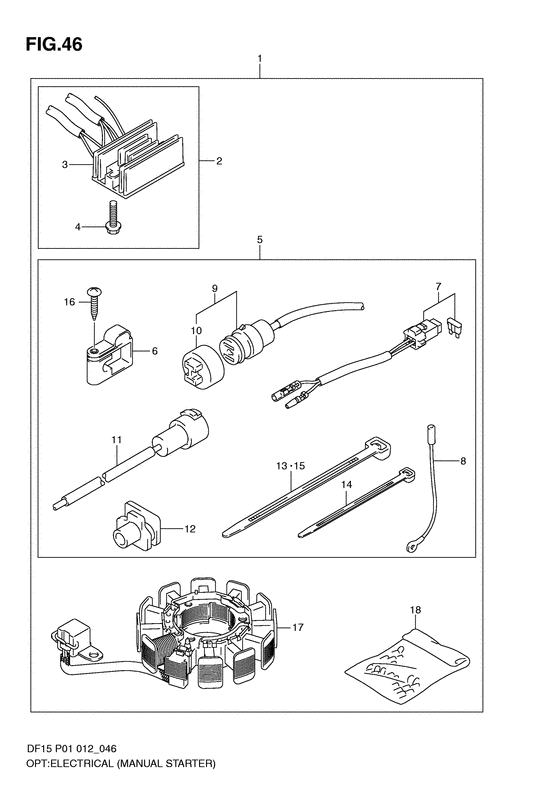

Electrical (Optional; manual starter) (df15 p01) Diagram Suzuki DF15 S/L; RS/L
- Year
- 2011
- Model
- DF15
- Year
- 2011
- Engine
- 01503F-110001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 15
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
32801-94J01-000 RECTIFIER & REGULATOR SET |
32801-94J01-000 |
US $136.90 |
||
|
3
|
3
32800-94J11-000 RECTIFIER & REGULATOR ASSY |
32800-94J11-000 |
US $135.20 |
||
|
4
|
4
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
5
|
5
39600-94J01-000 Receptacle set |
39600-94J01-000 |
US $127.60 |
||
|
6
|
6
33816-94J01-000 Clamp, Cable |
33816-94J01-000 |
US $3.97 |
||
|
7
|
7
36740-94J00-000 CASE ASSY,FUSE |
36740-94J00-000 |
US $32.94 |
||
|
8
|
8
37801-98300-000
LEAD,STOP SWITCH
|
37801-98300-000 |
— | ||
| replacement | |||||
|
8
|
8
37801-98301-000 Lead,stop Switch |
37801-98301-000 |
US $2.43 |
||
|
9
|
9
39601-95D00-000
RECEPTACLE
Receptacle assy, lighting; |
39601-95D00-000 |
— | ||
| replacement | |||||
|
9
|
9
39601-95D01-000 ReceptacleReceptacle assy, lighting; |
39601-95D01-000 |
US $35.70 |
||
|
10
|
10
36634-93910-000 CAP |
36634-93910-000 |
from US $2.58 |
||
|
11
|
11
39602-93900-000 PLUG ASSY,LAMP CORDPlug, lighting Plug, receptacle; |
39602-93900-000 |
US $38.27 |
||
|
12
|
12
39603-94400-000
GROMMET,RECEPTACLEE
Grommet, receptacle; |
39603-94400-000 |
— | ||
| replacement | |||||
|
12
|
12
39603-94401-000 Grommet,receptacleeGrommet, receptacle; |
39603-94401-000 |
US $6.40 |
||
|
13
|
13
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) Clamp (l:100); Lead |
09407-10404-000 |
from US $3.96 |
||
|
14
|
14
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); Harness |
09407-14403-000 |
from US $1.08 |
||
|
15
|
15
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp (l:248); Grommet |
09407-25402-000 |
from US $2.24 |
||
|
16
|
16
03241-0625A-000 SCREW |
03241-0625A-000 |
from US $1.87 |
||
|
17
|
17
32120-94J10-000 COIL,STARTER & PULSER |
32120-94J10-000 |
US $213.44 |
||
|
18
|
18
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set Terminal & sleeve set; |
36990-87D00-000 |
US $12.02 |
||
