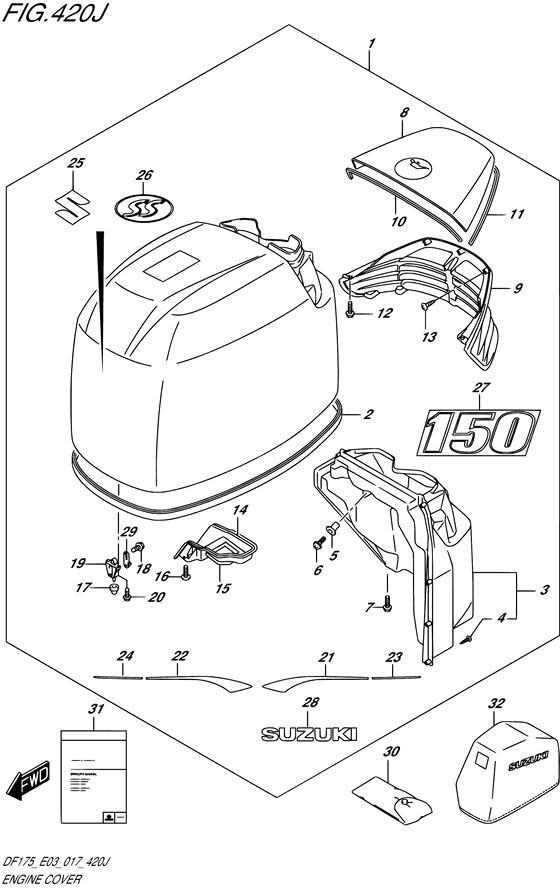

Engine cover ((DF150ST E03)) Diagram Suzuki DF150 TL/X
- Year
- 2017
- Model
- DF150
- Year
- 2017
- Engine
- 15002F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- U.S.A. (P03)
- Colour
- Metallic Matte Black #2 (; YKV)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61403-96840-YKV
COVER SET,ENG(DF150ST)
|
61403-96840-YKV |
— | ||
| replacement | |||||
|
1
|
1
61403-96841-YKV Cover Set,eng(Df150St) |
61403-96841-YKV |
US $1,513.60 |
||
|
2
|
2
61112-96J20-000 SEAL,ENGINE COVER |
61112-96J20-000 |
US $63.20 |
||
|
3
|
3
61430-96J10-000 GUIDE ASSY,AIR INTK INR |
61430-96J10-000 |
US $94.94 |
||
|
4
|
4
03542-05169-000 SCREWScrew, air intk guide no.1 |
03542-05169-000 |
from US $0.77 |
||
|
5
|
5
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
6
|
6
02142-05167-000 SCREWScrew, air intk guide no.2 |
02142-05167-000 |
from US $0.76 |
||
|
7
|
7
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
8
|
8
61431-96J21-YKV HANDLE,TILT UP(MAT BLACK) |
61431-96J21-YKV |
US $187.68 |
||
|
9
|
9
61432-96J20-000 LOUVER,TILT UP HANDLE(MAT RED) |
61432-96J20-000 |
US $132.11 |
||
|
10
|
10
61438-96J10-000 SEAL,TILT UP HANDLE NO.1 |
61438-96J10-000 |
US $8.13 |
||
|
11
|
11
61439-96J10-000 SEAL,TILT UP HANDLE NO.2 |
61439-96J10-000 |
US $8.13 |
||
|
12
|
12
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
13
|
13
03542-05169-000 SCREWScrew, air intk guide no.1 |
03542-05169-000 |
from US $0.77 |
||
|
14
|
14
61475-96J10-000 GUIDE,AIR VENT |
61475-96J10-000 |
US $18.40 |
||
|
15
|
15
61476-96J10-000 SEAL,AIR VENT |
61476-96J10-000 |
US $6.51 |
||
|
16
|
16
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.32 |
||
|
17
|
17
09329-10022-000
CUSHION
|
09329-10022-000 |
— | ||
| replacement | |||||
|
17
|
17
09329-10024-000 CUSHION,ENGINE COVER FASTENER |
09329-10024-000 |
from US $3.02 |
||
|
18
|
18
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
19
|
19
61621-93J01-000 BRACKET,FASTENER |
61621-93J01-000 |
US $15.20 |
||
|
20
|
20
01547-06167-000 BoltBolt, fastener bracket |
01547-06167-000 |
from US $0.96 |
||
|
21
|
21
61443-96J40-000 STRIPE,ENGINE COVER STBD |
61443-96J40-000 |
US $56.67 |
||
|
22
|
22
61453-96J40-000 STRIPE,ENGINE COVER PORT |
61453-96J40-000 |
US $56.67 |
||
|
23
|
23
61444-96J00-000 STRIPE,ENGINE COVER UPPER STBD |
61444-96J00-000 |
US $25.58 |
||
|
24
|
24
61454-96J00-000 STRIPE,ENGINE COVER UPPER PORT |
61454-96J00-000 |
US $25.58 |
||
|
25
|
25
77811-54GC0-0PG EMBLEM,MARK S |
77811-54GC0-0PG |
from US $14.45 |
||
|
26
|
26
61424-93J00-000 MARK,EMBLEM(SS) |
61424-93J00-000 |
US $25.58 |
||
|
27
|
27
61435-96J60-000
MARK,EMBLEM REAR(150)
|
61435-96J60-000 |
— | ||
| replacement | |||||
|
27
|
27
61435-96J61-000 Mark,emblem Rear(150) |
61435-96J61-000 |
US $29.07 |
||
|
28
|
28
61441-98L00-000 MARK,SUZUKI |
61441-98L00-000 |
US $68.80 |
||
|
29
|
29
61610-93J00-000 FASTENER |
61610-93J00-000 |
US $12.18 |
||
|
30
|
30
09800-81840-000
TOOL SET
|
09800-81840-000 |
— | ||
| replacement | |||||
|
30
|
30
09800-81841-000 TOOL SET |
09800-81841-000 |
US $34.59 |
||
|
31
|
31
99011-96J90-03B MANUAL,OWNER'S |
99011-96J90-03B |
US $15.46 |
||
|
31
|
31
99011-96J90-054
MANUAL,OWNER'S
|
99011-96J90-054 |
— | ||
| replacement | |||||
|
31
|
31
99011-96J91-054 MANUAL,OWNER'S |
99011-96J91-054 |
US $15.46 |
||
|
32
|
32
68110-96J00-000
COVER,WEATHER
OPT |
68110-96J00-000 |
— | ||
| replacements | |||||
|
32
|
32
68110-96J01-000
COVER,WEATHER
OPT |
68110-96J01-000 |
— | ||
|
32
|
32
99000-81730-000 Cover Comp,weatherOPT |
99000-81730-000 |
US $184 |
||
