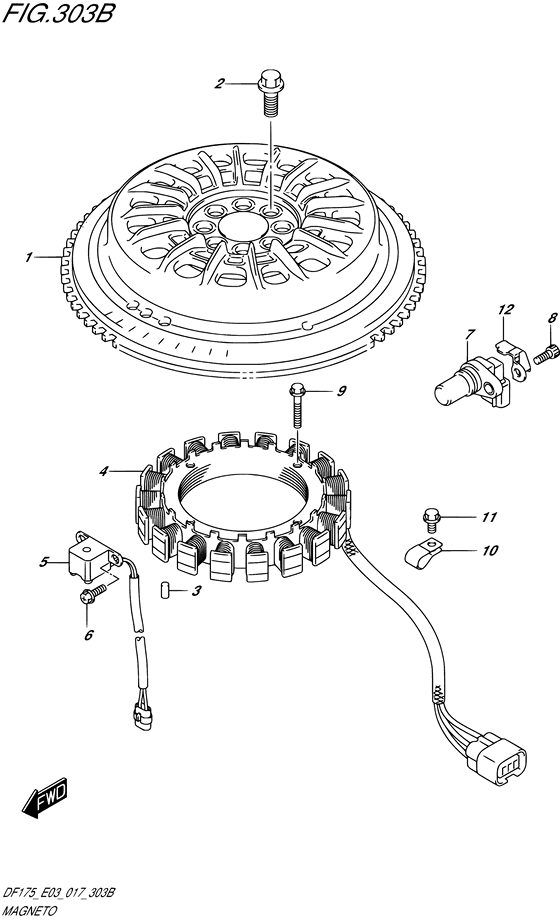

Magneto ((DF150Z E03)) Diagram Suzuki DF150 TL/X
- Year
- 2017
- Model
- DF150
- Year
- 2017
- Engine
- 15002F-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- U.S.A. (P03)
- Colour
- Metallic Matte Black #2 (; YKV)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32102-96J02-000
FLYWHEEL,MAGNETO
|
32102-96J02-000 |
— | ||
| replacement | |||||
|
1
|
1
32102-96J30-000 Flywheel,magneto |
32102-96J30-000 |
US $795.52 |
||
|
2
|
2
09103-12125-000 BOLT(12X26) |
09103-12125-000 |
from US $2.59 |
||
|
3
|
3
09202-06031-000 PIN(6X12)Pin, knock |
09202-06031-000 |
from US $1.92 |
||
|
4
|
4
32120-96J00-000 COIL,BATTERY CHARGING |
32120-96J00-000 |
US $436.48 |
||
|
5
|
5
32160-88L10-000 COIL,IGNITION TIMING |
32160-88L10-000 |
US $90.16 |
||
|
6
|
6
09106-05030-000 BOLT(5X10)Screw, cover rr |
09106-05030-000 |
from US $4.13 |
||
|
7
|
7
33220-64L10-000 SENSOR ASSY,POSITION |
33220-64L10-000 |
from US $71.20 |
||
|
8
|
8
07130-06167-000 BoltBolt, cam position sensor |
07130-06167-000 |
from US $5.07 |
||
|
9
|
9
09103-06231-000 BOLT(6X35)Bolt (6x35) |
09103-06231-000 |
from US $4.42 |
||
|
10
|
10
09403-13408-000
CLAMP
|
09403-13408-000 |
— | ||
| replacement | |||||
|
10
|
10
09403-13413-000 Clamp |
09403-13413-000 |
from US $8.31 |
||
|
11
|
11
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
12
|
12
11185-96J00-000 COVER,SENSOR |
11185-96J00-000 |
US $5.47 |
||
