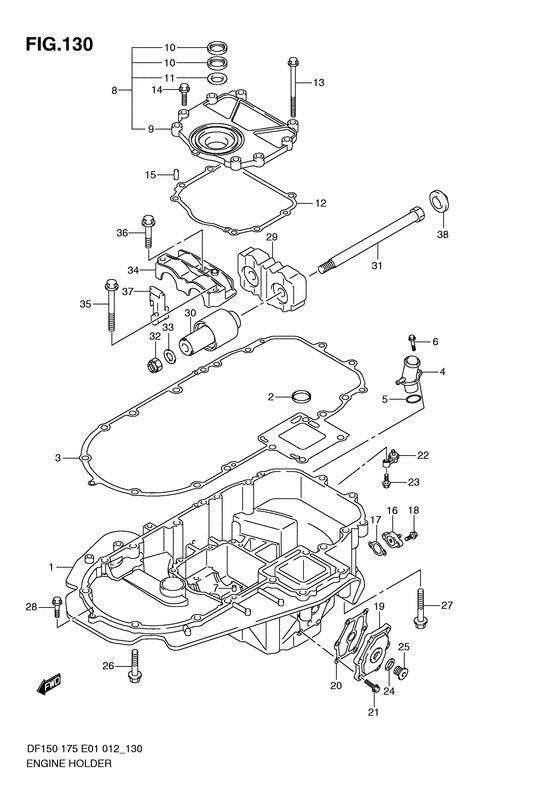

Engine holder Diagram Suzuki DF150 (Z)TL/X
- Year
- 2011
- Model
- DF150
- Year
- 2011
- Engine
- 15002F-110001~ (15002Z-110001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51111-96J00-0EP
HOLDER,ENGINE(BLACK)
Holder set, engine (black); |
51111-96J00-0EP |
— | ||
| replacements | |||||
|
1
|
1
51110-96J00-0EP
HOLDER COMP,ENGINE
Holder set, engine (black); |
51110-96J00-0EP |
— | ||
|
1
|
1
51110-96J20-0EP
HOLDER COMP,ENGINE(BLACK)
Holder set, engine (black); |
51110-96J20-0EP |
— | ||
|
1
|
1
51120-96J20-000 COVER COMP,MOUNT OIL SEALHolder set, engine (black); |
51120-96J20-000 |
US $100.46 |
||
|
1
|
1
51123-96J02-000 GASKET,MOUNT OIL COVERHolder set, engine (black); |
51123-96J02-000 |
US $5.60 |
||
|
1
|
1
51110-96J21-0EP
Holder Comp,engine
Holder set, engine (black); |
51110-96J21-0EP |
— | ||
|
1
|
1
51110-96J22-0EP Holder Comp,engineHolder set, engine (black); |
51110-96J22-0EP |
US $1,112.32 |
||
|
2
|
2
16519-93J00-000 SEAL,ENGINE HOLDER OIL |
16519-93J00-000 |
from US $3.20 |
||
|
3
|
3
51211-96J00-000 GASKET,ENGINE HOLDER |
51211-96J00-000 |
from US $63.20 |
||
|
4
|
4
51115-90J00-000 UNION,WATER RETURN |
51115-90J00-000 |
US $8.39 |
||
|
5
|
5
09280-26006-000 O RING(D:3.1,ID:26.4)O ring (d:3.1,id:26.4); |
09280-26006-000 |
from US $2.08 |
||
|
6
|
6
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
7
|
7
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
8
|
8
51120-96J00-000
Cover,mount oil seal
|
51120-96J00-000 |
— | ||
| replacement | |||||
|
8
|
8
51120-96J02-000 COVER,MOUNT OIL SEAL |
51120-96J02-000 |
US $110.77 |
||
|
9
|
9
51122-96J01-000
COVER,MOUNT OIL SEAL
|
51122-96J01-000 |
— | ||
| replacement | |||||
|
9
|
9
51120-96J02-000 COVER,MOUNT OIL SEAL |
51120-96J02-000 |
US $110.77 |
||
|
10
|
10
51124-93J00-000
Seal,oil
|
51124-93J00-000 |
— | ||
| replacement | |||||
|
10
|
10
51124-93J01-000 SEAL,OIL |
51124-93J01-000 |
from US $7.52 |
||
|
11
|
11
51125-93J00-000 SCRAPER |
51125-93J00-000 |
from US $6.56 |
||
|
12
|
12
51123-96J01-000
GASKET,MOUNT OIL COVER
|
51123-96J01-000 |
— | ||
| replacement | |||||
|
12
|
12
51123-96J02-000 GASKET,MOUNT OIL COVER |
51123-96J02-000 |
US $5.60 |
||
|
13
|
13
09103-08109-000 BOLT(8X120)Bolt, mount oil seal cover (8x120) Bolt (8x120); |
09103-08109-000 |
from US $5.08 |
||
|
14
|
14
01550-0830A-000 BoltBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
15
|
15
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
16
|
16
51140-96J00-000 COVER,ENGINE HOLDER |
51140-96J00-000 |
US $102.61 |
||
|
17
|
17
51142-96J00-000 GASKET,ENGINE HOLDER COVER |
51142-96J00-000 |
US $1.82 |
||
|
18
|
18
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
19
|
19
51161-96J00-0EP
Cover, eng holder water jkt
|
51161-96J00-0EP |
— | ||
| replacement | |||||
|
19
|
19
51161-96J01-000 COVER,ENGINE HOLDER WATER JKT |
51161-96J01-000 |
US $45.63 |
||
|
20
|
20
51162-96J00-000 GASKET,ENG HLDR WATER JKT COV |
51162-96J00-000 |
from US $4.32 |
||
|
21
|
21
09103-06093-000 BOLT(6X20)Bolt (6x20); |
09103-06093-000 |
from US $1.68 |
||
|
22
|
22
51170-96J00-000
Bracket, water indicator
|
51170-96J00-000 |
— | ||
| replacement | |||||
|
22
|
22
51170-96J01-000 BRACKET,WATER INDICATOR |
51170-96J01-000 |
US $6.38 |
||
|
23
|
23
09116-06121-000 BOLT(6X25)Bolt (6x25) Bolt (6x25); |
09116-06121-000 |
from US $1.22 |
||
|
24
|
24
09160-18031-000 WASHER(18.5X28X2.6)Washer (18.5x28x2.6); |
09160-18031-000 |
from US $1.44 |
||
|
25
|
25
09248-18010-000 PLUG(18X15) |
09248-18010-000 |
from US $6.72 |
||
|
26
|
26
09116-10136-000
Bolt, lower mount cov
Bolt (10x50); |
09116-10136-000 |
— | ||
| replacement | |||||
|
26
|
26
09116-10175-000 BOLT(10X50)Bolt (10x50); |
09116-10175-000 |
from US $5.02 |
||
|
27
|
27
09116-10137-000 BOLT(10X70)Bolt, eng set (10x70) Bolt (10x70); |
09116-10137-000 |
from US $11.36 |
||
|
28
|
28
01550-08307-000 Bolt |
01550-08307-000 |
from US $1.06 |
||
|
29
|
29
54121-96J01-000 MOUNT,UPR THRUST |
54121-96J01-000 |
US $84.64 |
||
|
30
|
30
54130-96J01-000 MOUNT,UPR |
54130-96J01-000 |
US $76.06 |
||
| replacement | |||||
|
30
|
30
54130-96J02-000 Mount,Upr |
54130-96J02-000 |
from US $52.80 |
||
|
31
|
31
54112-96J01-000
BOLT,UPR MOUNT
Bolt, upper mount (14x227); |
54112-96J01-000 |
— | ||
| replacement | |||||
|
31
|
31
54112-96J02-000 BOLT,UPPER MOUNTBolt, upper mount (14x227); |
54112-96J02-000 |
US $46 |
||
|
32
|
32
09159-14026-000
NUT
|
09159-14026-000 |
— | ||
| replacement | |||||
|
32
|
32
29159-93J00-000 NUT(M14) |
29159-93J00-000 |
from US $10.78 |
||
|
33
|
33
09160-15051-000 WASHER(15X24X3)Washer, upper mount bolt (15x24x3) Washer (15x24x3); |
09160-15051-000 |
US $14.40 |
||
|
34
|
34
54137-93J02-000 COVER,UPR MOUNT |
54137-93J02-000 |
US $48 |
||
|
35
|
35
09116-10135-000 BOLT(10X95)Bolt, upr mount cover (10x95) Bolt (10x95); |
09116-10135-000 |
from US $11.75 |
||
|
36
|
36
09116-10136-000
Bolt, lower mount cov
Bolt (10x50); |
09116-10136-000 |
— | ||
| replacement | |||||
|
36
|
36
09116-10175-000 BOLT(10X50)Bolt (10x50); |
09116-10175-000 |
from US $5.02 |
||
|
37
|
37
54127-96J00-000
MOUNT,UPR SIDE
|
54127-96J00-000 |
— | ||
| replacement | |||||
|
37
|
37
54127-96J01-000 Mount,upr Side |
54127-96J01-000 |
US $5.37 |
||
|
38
|
38
54122-96J00-000 SPACER,UPPER MOUNT THRUST |
54122-96J00-000 |
from US $3.46 |
||
