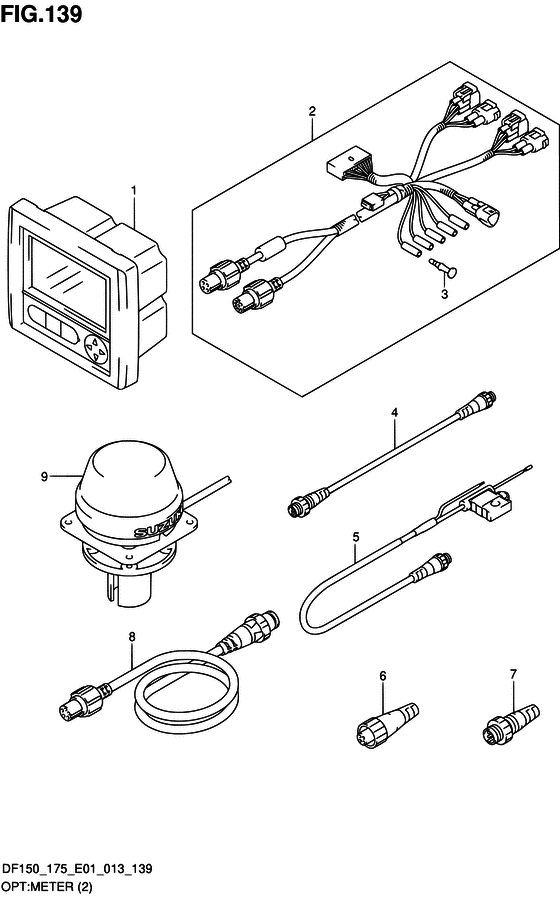

Opt:meter ((2)) Diagram Suzuki DF150 (Z)TL/X
- Year
- 2013
- Model
- DF150
- Year
- 2013
- Engine
- 15002F-310001~ (15002Z-310001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34200-87L11-000
Gauge assy,multi
|
34200-87L11-000 |
— | ||
| replacement | |||||
|
1
|
1
34200-87L12-000
MULTI FUNCTION GAUGE ASSY
|
34200-87L12-000 |
— | ||
|
2
|
2
36661-87L00-000
ADAPTER,GAUGE
|
36661-87L00-000 |
— | ||
|
3
|
3
36615-96300-000 TERMINAL |
36615-96300-000 |
US $1.52 |
||
|
4
|
4
36662-88L00-000 WIRE,25 EXTENSION |
36662-88L00-000 |
from US $140.94 |
||
|
5
|
5
36663-88L00-000 HARNESS ASSY,NETWORK POWER |
36663-88L00-000 |
from US $95.45 |
||
|
6
|
6
36665-88L00-000 UNIT,RESISTOR FEMALE |
36665-88L00-000 |
from US $17.82 |
||
|
7
|
7
36665-88L10-000 UNIT,RESISTOR MALE |
36665-88L10-000 |
from US $19.33 |
||
|
8
|
8
36666-87L00-000 WIRE,NETWORK |
36666-87L00-000 |
US $84.64 |
||
|
9
|
9
39950-87L00-000 MODULE ASSY,GPS RECEIVER |
39950-87L00-000 |
US $763.84 |
||
