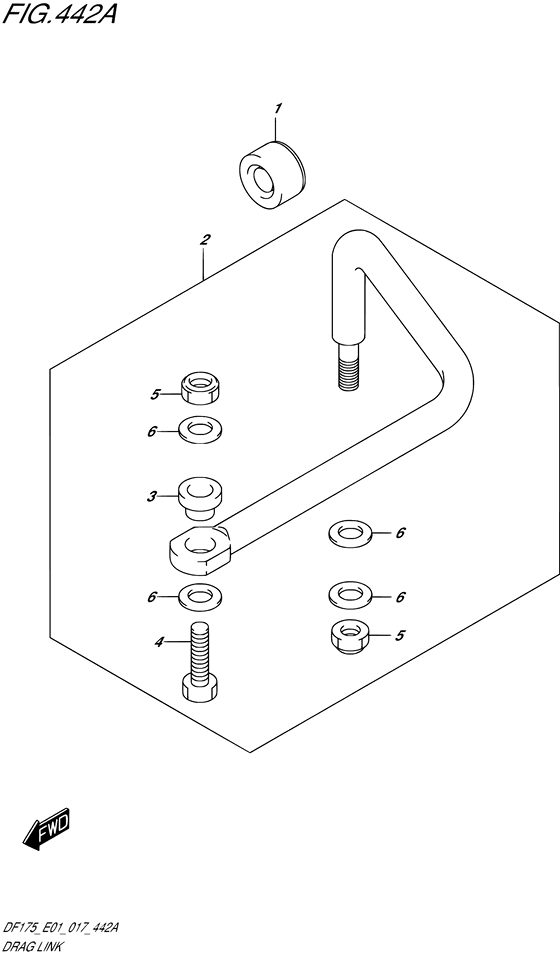

Drag link Diagram Suzuki DF150 (Z)TL/X
- Year
- 2017
- Model
- DF150
- Year
- 2017
- Engine
- 15002F-710001~ (15002Z-710001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- General Export No.1 (P01/P40)
- Colour
- Pearl Nebular Black; Cool White (; YAY; Y5S)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41161-94400-000
SEAL,STEERING CABLE
|
41161-94400-000 |
— | ||
|
2
|
2
67701-96J00-000 LINK ASSY,DRAG |
67701-96J00-000 |
US $66.98 |
||
|
3
|
3
67721-96J00-000 SPACER |
67721-96J00-000 |
US $7.95 |
||
|
4
|
4
67725-96J00-000 BOLT,DRAG LINK |
67725-96J00-000 |
US $6.51 |
||
|
5
|
5
67726-99E00-000 NUT,LOCK |
67726-99E00-000 |
US $3.65 |
||
|
6
|
6
67728-99E00-000 WASHER |
67728-99E00-000 |
US $1.60 |
