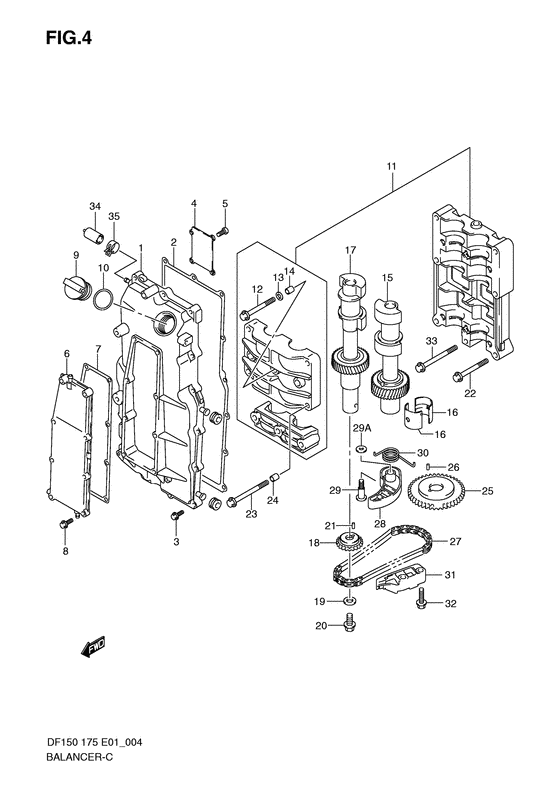

Balancer Diagram Suzuki DF175 (Z)TL/X
- Year
- 2010
- Model
- DF175
- Year
- 2010
- Engine
- 17502F-010001~ (17502Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 175
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-96J00-000 COVER,BALANCER SHAFT |
11330-96J00-000 |
US $257.60 |
||
|
1
|
1
11330-96J10-000 COVER,BALANCER SHAFTDf150t:782346~, df175t:782633~, df150t:780355~, df175t:780481~ |
11330-96J10-000 |
US $193.20 |
||
|
2
|
2
11332-96J00-000 GASKET,BALANCER COVER |
11332-96J00-000 |
US $24.80 |
||
|
3
|
3
01550-06257-000 BoltBolt, bal cover; |
01550-06257-000 |
from US $1.12 |
||
|
4
|
4
11345-96J00-000 PLATE,BALANCER COVERDf150t:~782345, df175t:~782632, df150z:~780354, df175z:~780480 |
11345-96J00-000 |
US $2.61 |
||
|
5
|
5
02112-0612A-000 SCREWDf150t:~782345, df175t:~782632, df150z:~780354, df175z:~780480 |
02112-0612A-000 |
from US $0.76 |
||
|
6
|
6
11340-96J00-000 COVER,BALANCER WATER JACKET |
11340-96J00-000 |
US $105.62 |
||
|
7
|
7
11342-96J00-000 GASKET,BAL WTR JKT COVER |
11342-96J00-000 |
from US $8.16 |
||
|
8
|
8
01550-06257-000 BoltBolt, wtr jacket cover; |
01550-06257-000 |
from US $1.12 |
||
|
9
|
9
11382-93J00-000 Cap,oil filler |
11382-93J00-000 |
from US $3.74 |
||
|
10
|
10
09280-26006-000 O RING(D:3.1,ID:26.4)O ring, oil filler cap (id:26.4,dd:3.1); |
09280-26006-000 |
from US $2.08 |
||
|
11
|
11
12600-96J00-000
Housing assy, balancer
|
12600-96J00-000 |
— | ||
| replacements | |||||
|
11
|
11
12600-96J01-000
HOUSING ASSY,BALANCER
|
12600-96J01-000 |
— | ||
|
11
|
11
12600-96J10-000 Housing Assy,balancer |
12600-96J10-000 |
US $436.48 |
||
|
12
|
12
12643-96J00-000 BOLT,BALANCER |
12643-96J00-000 |
US $4.42 |
||
|
13
|
13
12644-96J00-000 WASHER,BALANCER |
12644-96J00-000 |
US $1.91 |
||
|
14
|
14
04211-11129-000 PINPin, upper; |
04211-11129-000 |
from US $0.99 |
||
|
15
|
15
12605-96J01-000
Shaft assy,balancer port
|
12605-96J01-000 |
— | ||
| replacement | |||||
|
15
|
15
12600-96803-000 BALANCER SET,STBD/PORT |
12600-96803-000 |
from US $374.20 |
||
|
16
|
16
12645-96J00-000
BEARING,BALANCER
|
12645-96J00-000 |
— | ||
| replacement | |||||
|
16
|
16
12645-96J01-000 BEARING,BALANCER |
12645-96J01-000 |
from US $11.36 |
||
|
17
|
17
12650-96J00-000
Balancer, stbd
|
12650-96J00-000 |
— | ||
|
18
|
18
12665-96J00-000 SPROCKET,BALANCER DRIVEN |
12665-96J00-000 |
US $35.70 |
||
|
19
|
19
09160-10039-000 WASHER(10.5X22X2.3)Washer, bal sprocket (10.5x22x2.3); |
09160-10039-000 |
from US $0.43 |
||
|
20
|
20
01550-1020A-000 BoltBolt, bal sprocket Bolt, bal sprocket; |
01550-1020A-000 |
from US $0.96 |
||
|
21
|
21
04221-04089-000 PINPin, bal sprocket driven Pin, bal sprocket driven; |
04221-04089-000 |
from US $0.76 |
||
|
22
|
22
09103-08414-000 BOLT(8X53)Bolt, bal housing no.1 (8x53); |
09103-08414-000 |
from US $5.78 |
||
|
23
|
23
09103-08423-000 BOLT(8X80)Bolt, bal housing no.3 (8x80); |
09103-08423-000 |
from US $7.21 |
||
|
24
|
24
04211-11129-000 PINPin, bal housing; |
04211-11129-000 |
from US $0.99 |
||
|
25
|
25
12662-96J00-000 SPROCKET,BALANCER DRIVE |
12662-96J00-000 |
US $51.89 |
||
|
26
|
26
09202-05032-000 PIN(5X12)Pin, bal sprocket drive Pin, bal sprocket drive; |
09202-05032-000 |
from US $0.95 |
||
|
27
|
27
12670-96J00-000 CHAIN,BALANCER |
12670-96J00-000 |
US $35.20 |
||
|
28
|
28
12671-96J00-000
Tensioner, bal chain
bolt & tensioner set |
12671-96J00-000 |
— | ||
|
28
|
28
12671-96J01-000 TENSIONER,BALANCER CHAINModel:09~ |
12671-96J01-000 |
from US $18.61 |
||
|
29
|
29
12672-96J00-000
Bolt, bal chain tensioner
bolt & tensioner set |
12672-96J00-000 |
— | ||
| replacement | |||||
|
29
|
29
12670-96810-000 BOLT & TENSIONER SET,BALANCERbolt & tensioner set |
12670-96810-000 |
US $26.13 |
||
|
29
|
29
12672-96J01-000 BOLT,BALANCER CHAIN TENSIONERModel:09~ |
12672-96J01-000 |
US $7.21 |
||
|
29A
|
29A
09160-08079-000 WASHER(8X17X2)Washer, bal chain tensioner (8x17x2.0); Model:09~ |
09160-08079-000 |
US $21.70 |
||
|
30
|
30
12673-96J00-000 SPRING,BAL CHAIN TENSIONER |
12673-96J00-000 |
from US $5.60 |
||
|
31
|
31
12695-96J00-000 GUIDE,BALANCER CHAIN |
12695-96J00-000 |
from US $35.20 |
||
|
32
|
32
01550-0825A-000 BoltBolt, bal chain guide; |
01550-0825A-000 |
from US $0.47 |
||
|
33
|
33
09103-08158-000 BOLT(8X75)Bolt, bal housing no.2 (8x75) Bolt, bal housing no.2 (8x75); |
09103-08158-000 |
from US $9.01 |
||
|
34
|
34
09251-05006-000 CAP(OD:11)Cap, balancer cover Df150t:780701~782345, df175t:780641~782632, df150z:780144~780354, df175z:780119~780480 |
09251-05006-000 |
from US $9.11 |
||
|
35
|
35
09401-10411-000 CLIPClip, cap Clip, cap; Df150t:780701~782345, df175t:780641~782632, df150z:780144~780354, df175z:780119~780480 |
09401-10411-000 |
from US $1.13 |
||
