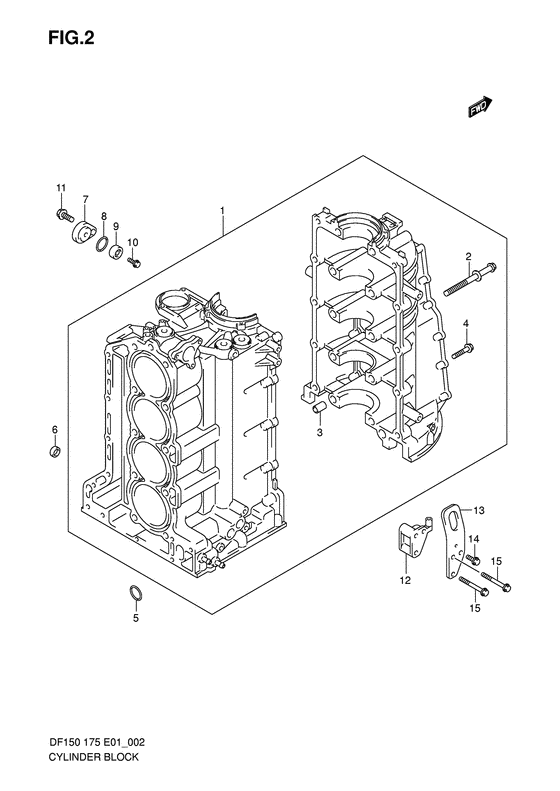

Cylinder block Diagram Suzuki DF175 (Z)TL/X
- Year
- 2010
- Model
- DF175
- Year
- 2010
- Engine
- 17502F-010001~ (17502Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 175
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-96J00-000 BLOCK ASSY,CYLINDER |
11300-96J00-000 |
US $3,381.52 |
||
|
2
|
2
11117-96J00-000
Bolt, crankcase (11x128)
Bolt, crankcase (11x128); |
11117-96J00-000 |
— | ||
| replacement | |||||
|
2
|
2
11117-96J01-000 BOLT,CRANKCASEBolt, crankcase (11x128); |
11117-96J01-000 |
from US $5.85 |
||
|
3
|
3
09206-14004-000 PIN(14X11.4X23) |
09206-14004-000 |
from US $3.80 |
||
|
4
|
4
09103-10284-000 BOLT(10X45)Bolt, case outside (10x45) Bolt, case outside (10x45); |
09103-10284-000 |
from US $2.24 |
||
|
5
|
5
11318-96J00-000 O RING,BALANCER OIL GALL |
11318-96J00-000 |
from US $2.40 |
||
|
6
|
6
09329-14002-000
CUSHION
Cushion, side cover; |
09329-14002-000 |
— | ||
| replacement | |||||
|
6
|
6
09329-14003-000 Cushion(14X20X9)Cushion, side cover; |
09329-14003-000 |
from US $4.28 |
||
|
7
|
7
11261-93J00-000 COVER,PROTECTION ANODE |
11261-93J00-000 |
from US $14.40 |
||
|
8
|
8
09280-22019-000 O RING(D:1.9,ID:21.8)O ring, cover; |
09280-22019-000 |
from US $1.49 |
||
|
9
|
9
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
9
|
9
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.58 |
||
|
10
|
10
09103-06281-000 BOLT(6X14)Bolt, protection anode Bolt, protection anode; |
09103-06281-000 |
from US $1.44 |
||
|
11
|
11
01550-08207-000 BoltBolt, cover; |
01550-08207-000 |
from US $1.12 |
||
|
12
|
12
11294-96J00-000 BRACKET,ENGINE STBD HOOK |
11294-96J00-000 |
US $17.44 |
||
|
13
|
13
11291-96J00-000 HOOK,ENGINE STBD |
11291-96J00-000 |
US $10.19 |
||
|
14
|
14
01550-08167-000 BoltBolt (8x16) Bolt, hook stbd; |
01550-08167-000 |
from US $4.49 |
||
|
15
|
15
01550-08557-000 BoltBolt, hook stbd; |
01550-08557-000 |
from US $1.28 |
||
