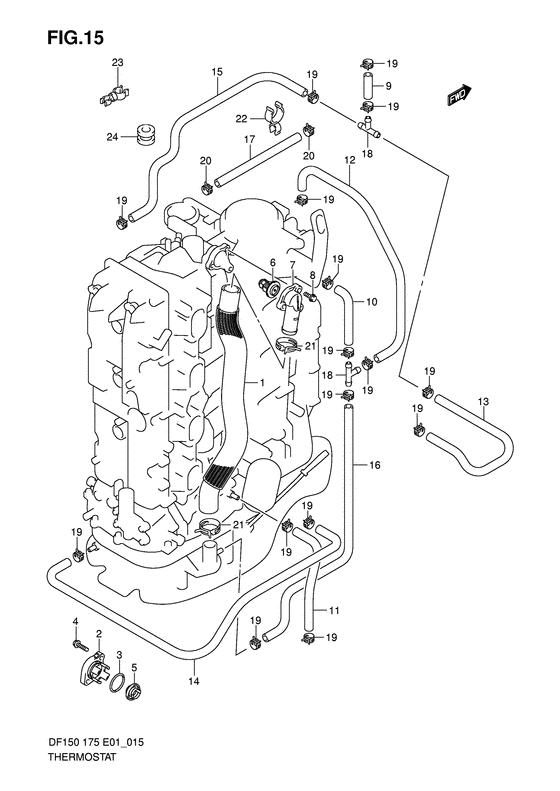

Thermostat Diagram Suzuki DF175 (Z)TL/X
- Year
- 2010
- Model
- DF175
- Year
- 2010
- Engine
- 17502F-010001~ (17502Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 175
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11196-96J00-000 HOSE,WATER RETURN |
11196-96J00-000 |
US $29.44 |
||
|
2
|
2
17611-90J00-0EP
COVER,WATER PRESS VALVE
|
17611-90J00-0EP |
— | ||
| replacement | |||||
|
2
|
2
17611-90J00-000 Cover, water pressure valveCover, water press valve |
17611-90J00-000 |
from US $31.43 |
||
|
3
|
3
09280-26006-000 O RING(D:3.1,ID:26.4)O ring (id:26.4,dd:3.1); |
09280-26006-000 |
from US $2.08 |
||
|
4
|
4
09116-06121-000 BOLT(6X25)Bolt (6x25) Bolt (6x25); |
09116-06121-000 |
from US $1.22 |
||
|
5
|
5
17660-90J00-000 VALVE,WATER PRESSURE |
17660-90J00-000 |
from US $23.11 |
||
|
7
|
7
17681-96J00-000 COVER,THERMOSTAT |
17681-96J00-000 |
US $109.66 |
||
|
8
|
8
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
9
|
9
09352-50903-600
HOSE(5X9X600)
Hose (3 way to bal cov wj); L:600->0 |
09352-50903-600 |
— | ||
| replacement | |||||
|
9
|
9
09352-50006-600 Hose(5X9X600)Hose (3 way to bal cov wj); L:600->0 |
09352-50006-600 |
from US $4.32 |
||
|
10
|
10
09352-50903-600
HOSE(5X9X600)
Hose (cooler to 3 way); L:600->0 |
09352-50903-600 |
— | ||
| replacement | |||||
|
10
|
10
09352-50006-600 Hose(5X9X600)Hose (cooler to 3 way); L:600->0 |
09352-50006-600 |
from US $4.32 |
||
|
11
|
11
09352-50903-600
HOSE(5X9X600)
Hose (block to indicator); L:600->20 |
09352-50903-600 |
— | ||
| replacement | |||||
|
11
|
11
09352-50006-600 Hose(5X9X600)Hose (block to indicator); L:600->20 |
09352-50006-600 |
from US $4.32 |
||
|
12
|
12
09352-50903-600
HOSE(5X9X600)
Hose (bal cov wj to 3 way); L:600->40 |
09352-50903-600 |
— | ||
| replacement | |||||
|
12
|
12
09352-50006-600 Hose(5X9X600)Hose (bal cov wj to 3 way); L:600->40 |
09352-50006-600 |
from US $4.32 |
||
|
13
|
13
09352-50903-600
HOSE(5X9X600)
Hose (3 way to cooler); L:600->80 |
09352-50903-600 |
— | ||
| replacement | |||||
|
13
|
13
09352-50006-600 Hose(5X9X600)Hose (3 way to cooler); L:600->80 |
09352-50006-600 |
from US $4.32 |
||
|
14
|
14
09352-50903-600
HOSE(5X9X600)
Hose (holder to block); L:600->40 |
09352-50903-600 |
— | ||
| replacement | |||||
|
14
|
14
09352-50006-600 Hose(5X9X600)Hose (holder to block); L:600->40 |
09352-50006-600 |
from US $4.32 |
||
|
15
|
15
09352-50903-600
HOSE(5X9X600)
Hose (oil pan to 3 way); |
09352-50903-600 |
— | ||
| replacement | |||||
|
15
|
15
09352-50006-600 Hose(5X9X600)Hose (oil pan to 3 way); |
09352-50006-600 |
from US $4.32 |
||
|
16
|
16
09352-50903-00B
HOSE(5X9X2000)
Hose (3 way to holder); L:2000->00 |
09352-50903-00B |
— | ||
| replacement | |||||
|
16
|
16
09352-50006-00B Hose(5X9X2000)Hose (3 way to holder); L:2000->00 |
09352-50006-00B |
from US $15.20 |
||
|
17
|
17
09352-90133-600
HOSE(9X13X600)
Hose, water flush (9x13x600); L:600->40 |
09352-90133-600 |
— | ||
| replacement | |||||
|
17
|
17
09352-90134-600 Hose(9X13X600)Hose, water flush (9x13x600); L:600->40 |
09352-90134-600 |
from US $11.68 |
||
|
18
|
18
09367-06002-000 JOINT,3 WAY3 way 3 way, water hose; |
09367-06002-000 |
from US $1.67 |
||
|
19
|
19
09401-08413-000 CLIP |
09401-08413-000 |
from US $1.60 |
||
|
20
|
20
09401-13425-000 CLIPClip, flush hose; |
09401-13425-000 |
from US $3.42 |
||
|
21
|
21
09401-31407-000 CLIPClip, water return hose; |
09401-31407-000 |
from US $2.57 |
||
|
22
|
22
09408-00060-000 CLAMP |
09408-00060-000 |
from US $0.38 |
||
|
23
|
23
09408-00078-000 CLAMPClamp, evaporation hose Df150:~680023, df175:~680083 |
09408-00078-000 |
from US $3.43 |
||
|
24
|
24
09320-09039-000
CUSHION
Grommet; |
09320-09039-000 |
— | ||
| replacement | |||||
|
24
|
24
09320-09059-000 Cushion,silencer CoverGrommet; |
09320-09059-000 |
from US $1.67 |
||
