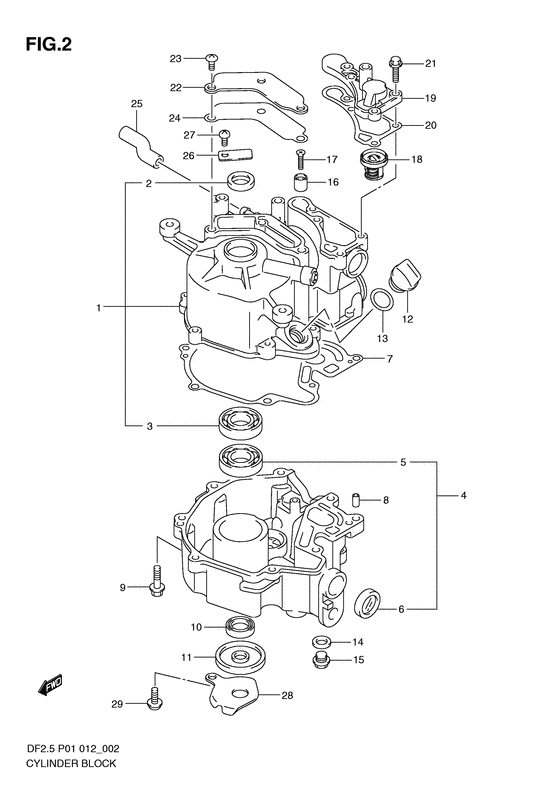

Cylinder block Diagram Suzuki DF2.5 S
- Year
- 2012
- Model
- DF2.5
- Year
- 2012
- Engine
- 00252F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 2.5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-97J00-000 BLOCK ASSY,CYLINDER |
11200-97J00-000 |
US $298.08 |
||
|
2
|
2
59295-97J00-000 SEAL,CRANKSHAFT OIL |
59295-97J00-000 |
from US $6.39 |
||
|
3
|
3
09262-17023-000 BEARING(17X40X12)Bearing, crankshaft upper Bearing (17x40x12); Upper |
09262-17023-000 |
from US $9.76 |
||
|
4
|
4
11300-97J00-000 CASE ASSY,CRANKSHAFT |
11300-97J00-000 |
US $241.04 |
||
|
5
|
5
09262-17023-000 BEARING(17X40X12)Bearing, crankshaft upper Bearing (17x40x12); Lower |
09262-17023-000 |
from US $9.76 |
||
|
6
|
6
11971-91J01-000
LENS,OIL LEVEL FILLER
|
11971-91J01-000 |
— | ||
| replacement | |||||
|
6
|
6
11971-91J02-000 Lens,oil Level Filler |
11971-91J02-000 |
US $7.20 |
||
|
7
|
7
11351-97JL0-000 GASKET,CRANKCASE |
11351-97JL0-000 |
US $15.20 |
||
|
8
|
8
04221-05109-000 PIN |
04221-05109-000 |
from US $0.38 |
||
|
9
|
9
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
10
|
10
59295-97J10-000 SEAL,DRIVE SHAFT OIL |
59295-97J10-000 |
US $7.20 |
||
|
11
|
11
59295-97J20-000 SEAL,CRANKSHAFT OIL LWR |
59295-97J20-000 |
US $14.72 |
||
|
12
|
12
11382-97J00-000 Cap,oil filler |
11382-97J00-000 |
US $2.54 |
||
|
13
|
13
09280-15007-000 O RING(D:2.4,ID:15.8)O ring (d:2.4,id:15.8); |
09280-15007-000 |
from US $0.79 |
||
|
14
|
14
09168-10022-000 GASKET(10X17X1.5)Gasket (10x17x1.5); |
09168-10022-000 |
from US $1.28 |
||
|
15
|
15
09248-10008-000 PLUG(10X7.5)Plug; |
09248-10008-000 |
from US $1.28 |
||
|
16
|
16
55321-95J00-000 ANODE,PROTECTION |
55321-95J00-000 |
US $10.40 |
||
|
17
|
17
09126-05011-000 SCREW(5X20)Screw (5x20); |
09126-05011-000 |
from US $3.35 |
||
|
18
|
18
17670-91J00-000
THERMOSTAT,WATER 50 DEG
|
17670-91J00-000 |
— | ||
| replacement | |||||
|
18
|
18
17670-91J02-000 Thermostat Comp,water 50 Deg |
17670-91J02-000 |
from US $28.39 |
||
|
19
|
19
17681-97J20-000
Cover,thermostat
|
17681-97J20-000 |
— | ||
| replacement | |||||
|
19
|
19
17681-97J21-000 COVER,THERMOSTAT |
17681-97J21-000 |
US $13.40 |
||
|
20
|
20
17685-97J00-000
Gasket, thermostat cover
|
17685-97J00-000 |
— | ||
| replacement | |||||
|
20
|
20
17685-97J01-000 GASKET,THERMOSTAT COVER |
17685-97J01-000 |
US $2.56 |
||
|
21
|
21
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
22
|
22
11173-97J00-000 PLATE,BREATHER |
11173-97J00-000 |
US $7.30 |
||
|
23
|
23
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
24
|
24
11179-97J00-000 GASKET,BREATHER PLATE |
11179-97J00-000 |
US $2.56 |
||
|
25
|
25
11174-97J00-000
HOSE,BREATHER
|
11174-97J00-000 |
— | ||
| replacement | |||||
|
25
|
25
11174-97J01-000 Hose,breather |
11174-97J01-000 |
US $4 |
||
|
26
|
26
11452-91J00-000 VALVE,REED |
11452-91J00-000 |
US $1.68 |
||
|
27
|
27
02112-0612A-000 SCREWScrew; |
02112-0612A-000 |
from US $0.76 |
||
|
28
|
28
11431-97J11-000 PLATE,UNDER OIL SEAL |
11431-97J11-000 |
US $3.20 |
||
|
29
|
29
11432-97JL0-000 BOLT,UNDER OIL SEAL PLATE |
11432-97JL0-000 |
US $2.13 |
||
