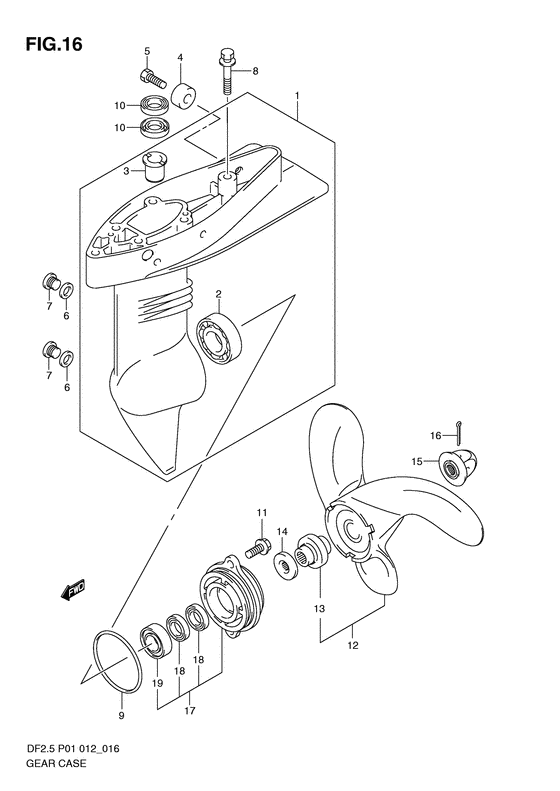

Gear case Diagram Suzuki DF2.5 S
- Year
- 2012
- Model
- DF2.5
- Year
- 2012
- Engine
- 00252F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 2.5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55110-97J40-0EP
CASE,GEAR
Case, gear (black); |
55110-97J40-0EP |
— | ||
| replacements | |||||
|
1
|
1
55110-97J50-0EP
CASE,GEAR
Case, gear (black); |
55110-97J50-0EP |
— | ||
|
1
|
1
55110-97J51-0EP CASE,GEAR(BLACK)Case, gear (black); |
55110-97J51-0EP |
US $159.71 |
||
|
2
|
2
09262-17019-000 BEARING(17X35X8)Bearing, clutch shaft Bearing (17x35x8); |
09262-17019-000 |
from US $9.90 |
||
|
3
|
3
59311-97J20-000 BUSH,PINION |
59311-97J20-000 |
US $24 |
||
|
4
|
4
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
4
|
4
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.58 |
||
|
5
|
5
09103-06281-000 BOLT(6X14)Bolt, protection anode Bolt (6x14); |
09103-06281-000 |
from US $1.44 |
||
|
6
|
6
59178-97J00-000 GASKET,DRAIN PLUG |
59178-97J00-000 |
from US $1.40 |
||
|
7
|
7
09248-08001-000 PLUG(8X7.5) |
09248-08001-000 |
from US $0.96 |
||
|
8
|
8
09116-06099-000 BOLT(6X35)Bolt (6x35) Bolt (6x35); |
09116-06099-000 |
US $23.20 |
||
|
9
|
9
59291-97J00-000 O RING,PROP SFT BRG HOUSING |
59291-97J00-000 |
from US $3.04 |
||
|
10
|
10
09282-10008-000 SEAL,OIL(10X21X4.5)Seal, prop sft oil Oil seal (10x21x4.5); |
09282-10008-000 |
from US $4.32 |
||
|
11
|
11
09116-06094-000 BOLT(6X15)Bolt (6x15); |
09116-06094-000 |
US $0.81 |
||
|
12
|
12
58110-97JA0-019 PROPELLER(3X7-3/8X5-3/8)Propeller (3x7-1/2x6) (black); |
58110-97JA0-019 |
US $83.96 |
||
|
13
|
13
58120-97JA0-000 BUSH,PROPELLER |
58120-97JA0-000 |
US $52.62 |
||
|
14
|
14
57635-91JL0-000 STOPPER,PROPELLER BUSH |
57635-91JL0-000 |
US $19.76 |
||
|
15
|
15
58130-91JL0-000 NUT,PROPELLER |
58130-91JL0-000 |
US $15.20 |
||
|
16
|
16
09204-03003-000 PIN |
09204-03003-000 |
from US $1.12 |
||
|
17
|
17
56120-97J40-0EP
Housing,prop shaft brg(black)
Housing, prop sft brg (black); |
56120-97J40-0EP |
— | ||
| replacement | |||||
|
17
|
17
56120-97J50-0EP HOUSING,PROPELLER SFT BRGHousing, prop sft brg (black); |
56120-97J50-0EP |
US $82.84 |
||
|
18
|
18
09282-12008-000 SEAL,OIL(12X24X4.5)Oil seal (12x24x4.5); |
09282-12008-000 |
US $8.97 |
||
|
19
|
19
09262-12001-000 BEARING(12X28X8)Bearing (12x28x8); |
09262-12001-000 |
from US $10.64 |
||
